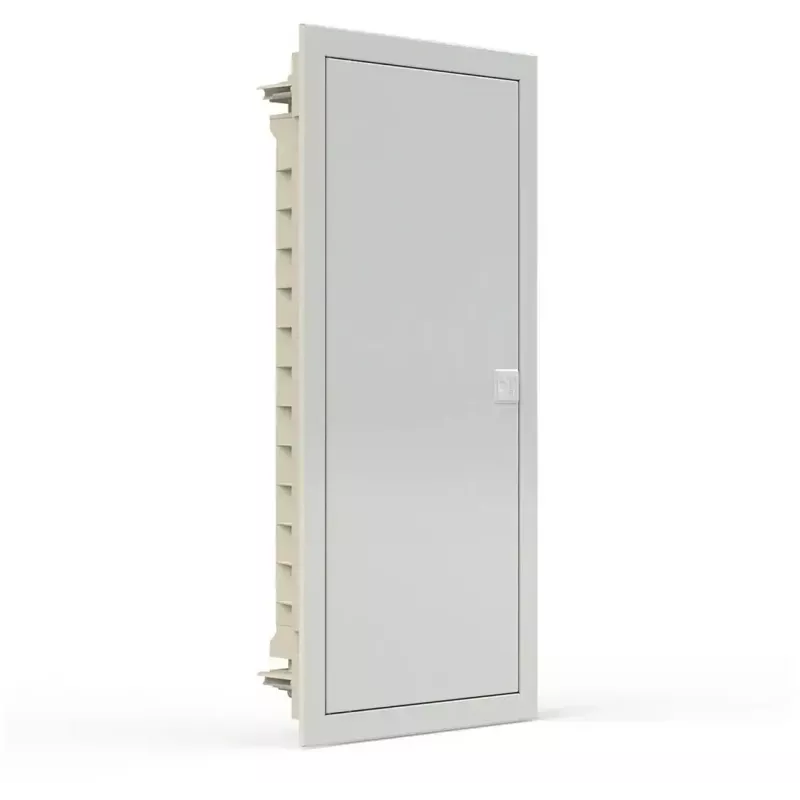

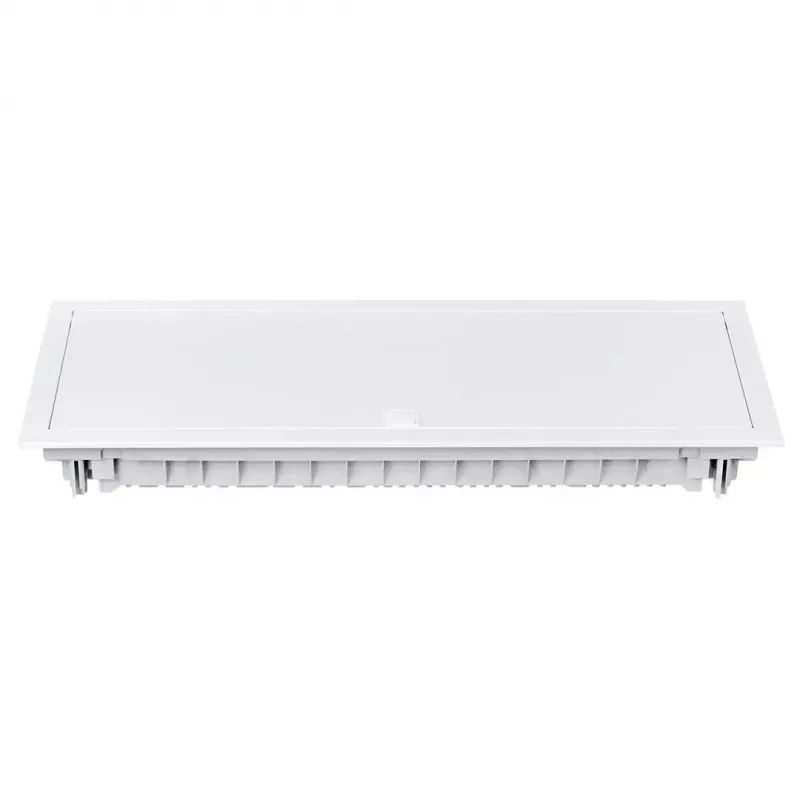

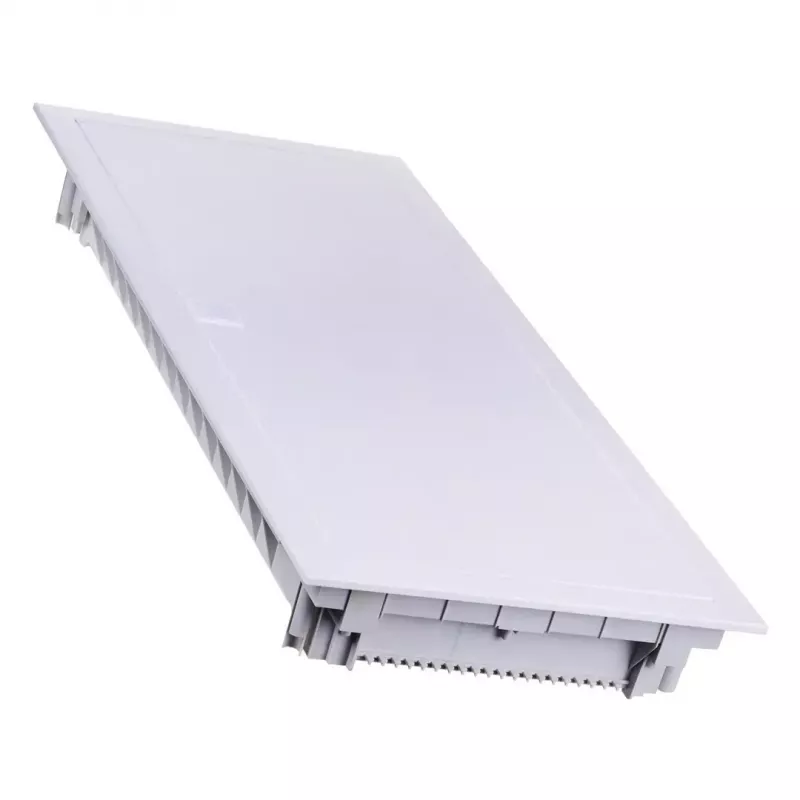

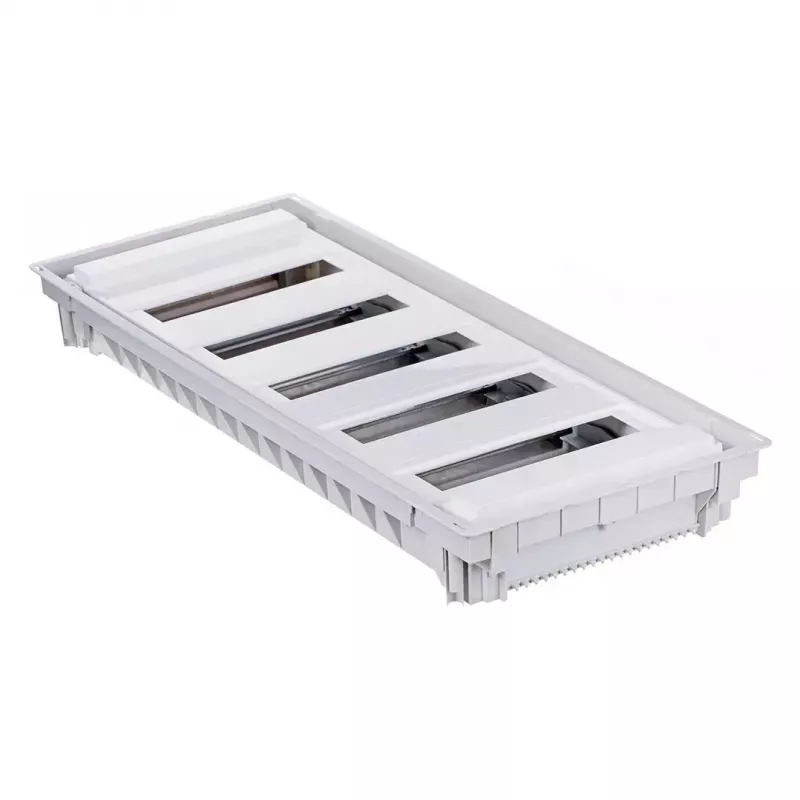

Quadro di installazione in plastica Noark PMF 60 — 5 file, 60 moduli, IP40

Noark PMF 60 is a plastic installation enclosure designed for mounting modular electrical devices in residential and light-commercial settings. The enclosure accepts up to 60 DIN-modules arranged across 5 rows and provides IP40 protection against solid objects. It is intended to deliver an organised layout for circuit breakers, RCDs and other modular components, ease of wiring and routine access for maintenance.

Advantages

The enclosure is made from durable non-conductive plastic that reduces corrosion risk and simplifies installation compared with metal cabinets. Its five-row layout supports a compact but clear distribution of circuits, enabling tidy cable routing and straightforward module installation. IP40 protection offers basic defence against access to hazardous parts and falling solid objects, while the removable cover and snap-fit mounting features speed up installation and servicing.

Suitable for

• Residential electrical distribution boards and circuit panel installations
• Small offices and light-commercial electrical distribution
• Replacement or upgrade of existing plastic consumer units
• Projects requiring a compact 60-module DIN rail solution

Key specifications

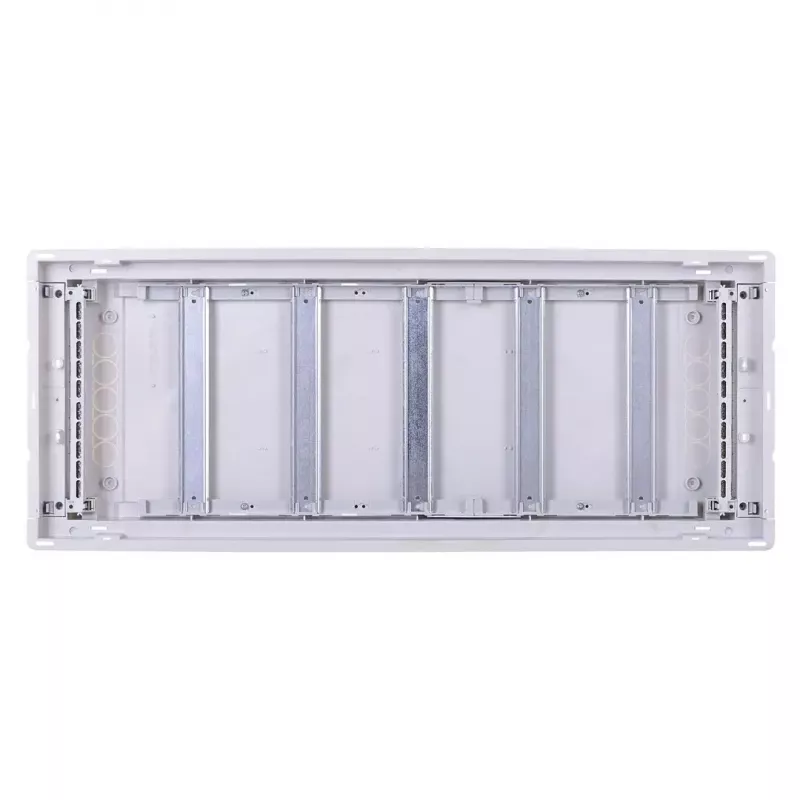

• Capacity: 60 DIN-modules in total, arranged in 5 horizontal rows
• Material: impact-resistant, non-conductive plastic
• Protection class: IP40 (protection against solid objects larger than 1 mm)

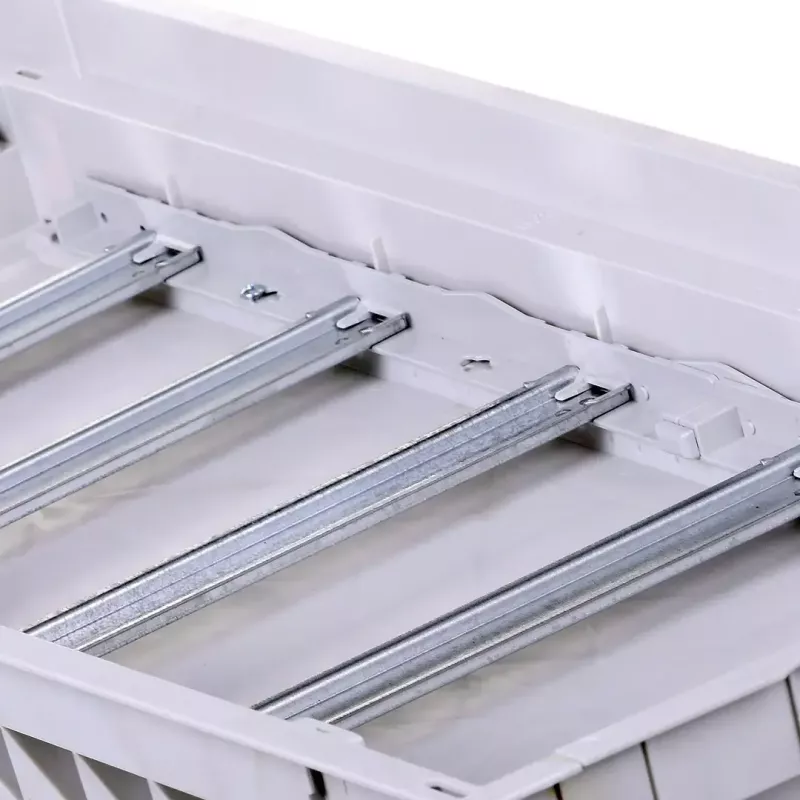

• Mounting: built-in DIN rails compatible with standard modular devices

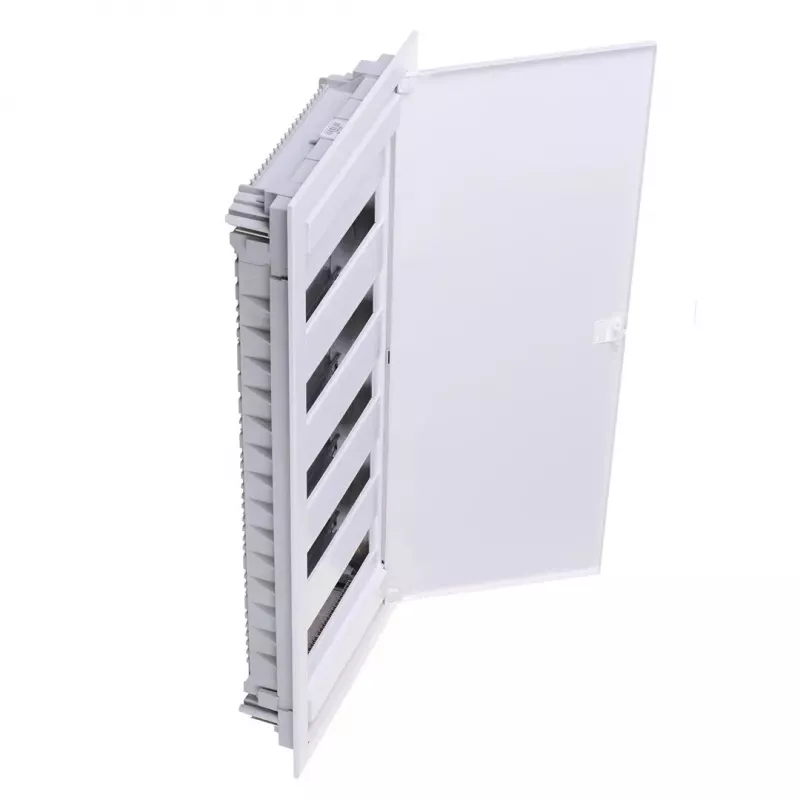

• Access: removable front cover for wiring and maintenance
• Application environment: indoor use, dry locations typical for residential and light-commercial installations

How to use

Select a suitable mounting location that provides secure structural support and complies with local electrical installation regulations. Fix the enclosure to the wall using appropriate fasteners for the substrate, ensuring it is level. Install the required DIN rails and mount modular devices according to the manufacturer's instructions, leaving space for wiring. Route supply and circuit cables through the designated knockouts or cable entries, make connections to the devices and neutral/earth buses as required, and replace the front cover. Verify correct device operation and tighten all terminations before energising the panel.

Recommendations

Use the enclosure only in indoor, dry environments and follow local wiring regulations. Avoid overloading rows beyond the rated capacity of installed devices and ensure proper segregation of power and control cables to maintain safe operation.
