Rack a parete Lanberg WF01-6406-00B

Wall mount single-section Lanberg cabinet WF01-6406-00B is a 19" rack enclosure designed for network expansion, cabling and equipment installation with a maximum load capacity of 60 kg. It is suitable for use in networks, server rooms, and small to medium businesses, and is compatible with low-voltage systems such as cable television, alarm and fire protection systems, access control, CCTV and IP surveillance. The cabinet is made of high-grade cold-rolled steel and is supplied as a flat pack for easy transport and self-assembly.

Advantages

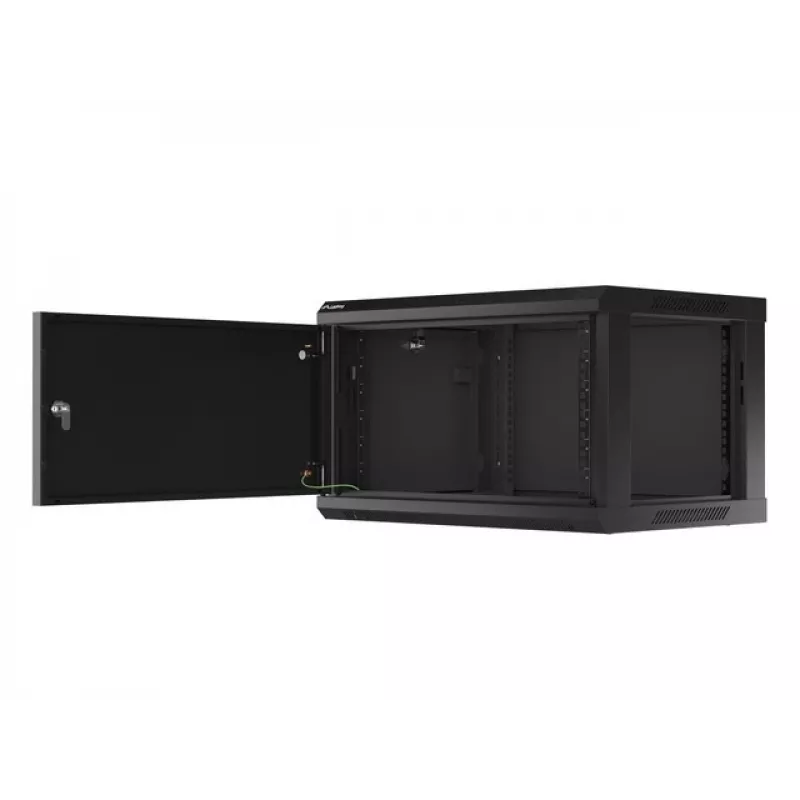

The cabinet features an IP20 protection rating, a front door that opens and can rotate up to 180° with a lock, and removable side panels with locks for secure access. Top and bottom cable entry panels simplify cable routing. The delivery includes accessories for rail mounting, M6 cage nuts and blank entry panels to facilitate installation.

Key specifications

• Form factor: 19" wall-mount, single section
• Model: Lanberg WF01-6406-00B
• Maximum load capacity: 60 kg
• Material: cold-rolled steel
• Protection rating: IP20
• Front door: opens and can rotate to 180°; lockable
• Side panels: removable, lockable
• Cable entry: top and bottom panels
• Packaging: flat pack for self-assembly
• Included accessories: rail mounts, M6 cage nuts, blank entry panels

How to use

Unpack the flat-pack cabinet and follow the supplied assembly instructions to install the frame and panels. Mount the cabinet to a suitable wall using appropriate fasteners for the wall material, then install the 19" equipment rails and secure devices up to the 60 kg limit. Route cables through the top or bottom entry panels and close panels and doors, locking them as required for security.

Recommendations

For safe and reliable installation, use anchors and fasteners appropriate for the wall type and ensure the mounted equipment does not exceed the 60 kg load limit. For integration with CCTV, access control or alarm systems, plan cable routing in advance and use the included blank panels and cage nuts for neat mounting.
