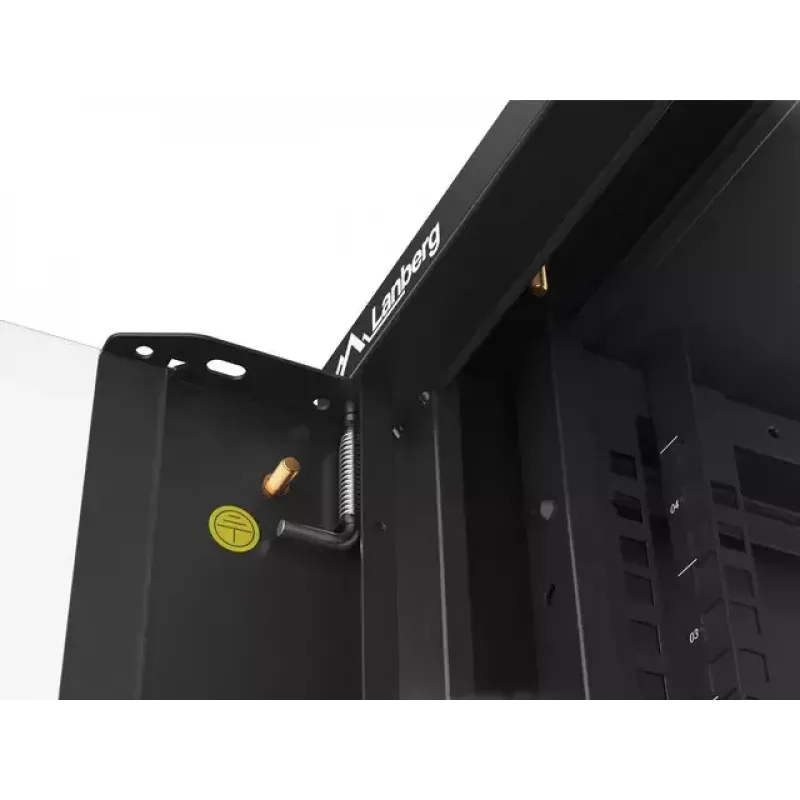

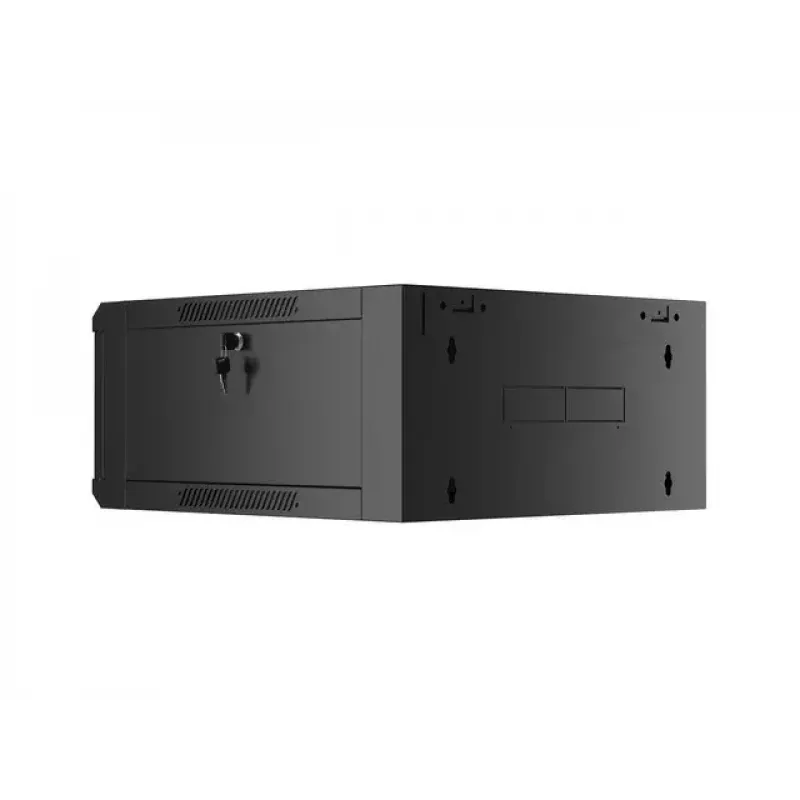

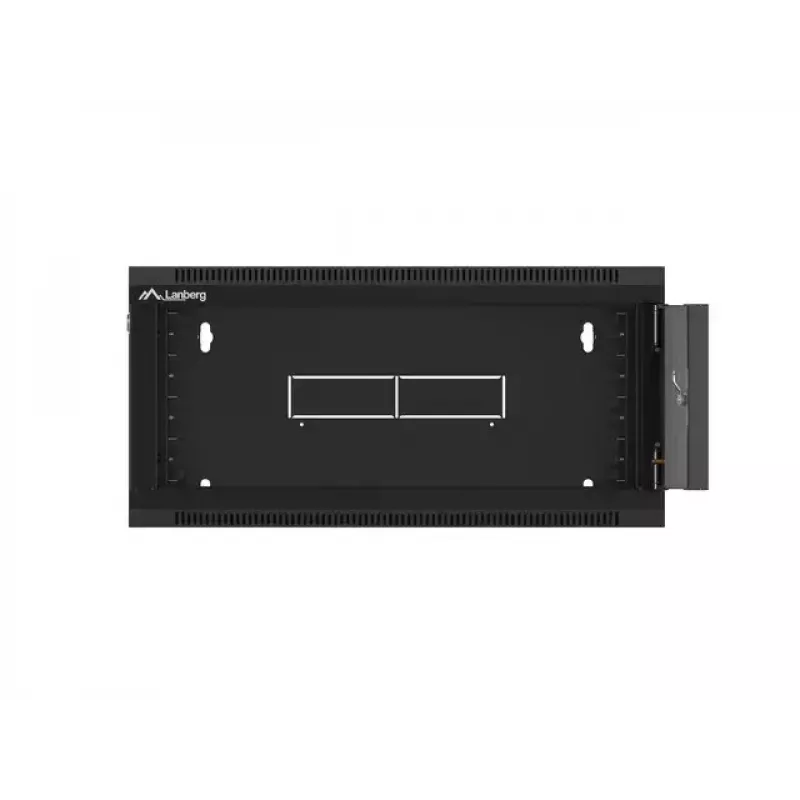

Rack a parete Lanberg WFFA-5604-10B

The Lanberg WFFA-5604-10B is a 4U wall-mounted 19" rack cabinet designed for indoor use in offices, server rooms, homes, and low-current installations such as cable TV, alarm/fire systems, access control, and video surveillance. The cabinet measures 570 x 600 x 277 mm (W x D x H), weighs 16 kg and supports a maximum load of 60 kg. It features a glazed tempered glass front door, latch-mounted steel side panels, internal rack rails and a key lock to secure installed equipment.

Advantages

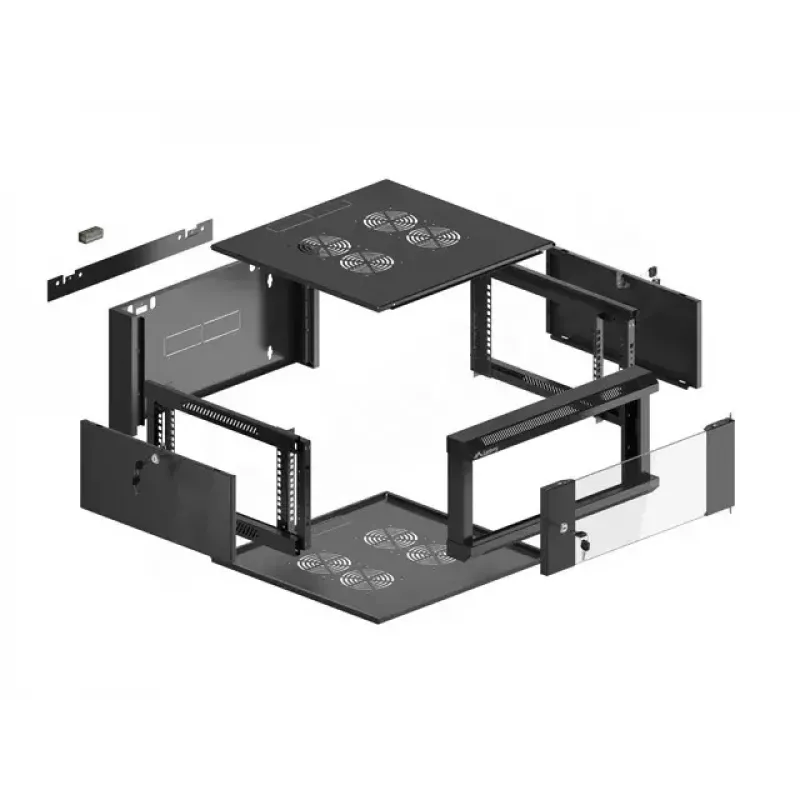

The WFFA series combines a sturdy cold-rolled steel frame with a matt finish and an updated design that reduces visible external screws by tightening fasteners from the inside. Assembly has been simplified to minimise the number of M6*12 screws required, enabling quick self-assembly. The cabinet provides improved airflow with vents in the top and bottom panels and three detachable cable entry panels for convenient cable routing. Included accessories (flat wall-mount rail, magnetic spirit level, mounting rails, keys and screws) simplify installation and positioning.

Suitable for

• Small server rooms and IT closets
• Network and telecommunications equipment installations
• CCTV/IP surveillance and access control systems
• Residential or office low-current systems (alarm, cable TV)

Key specifications

• Rack capacity: 4U (19")
• Dimensions (W x D x H): 570 x 600 x 277 mm
• Weight: 16 kg
• Maximum load: 60 kg
• Colour: Black

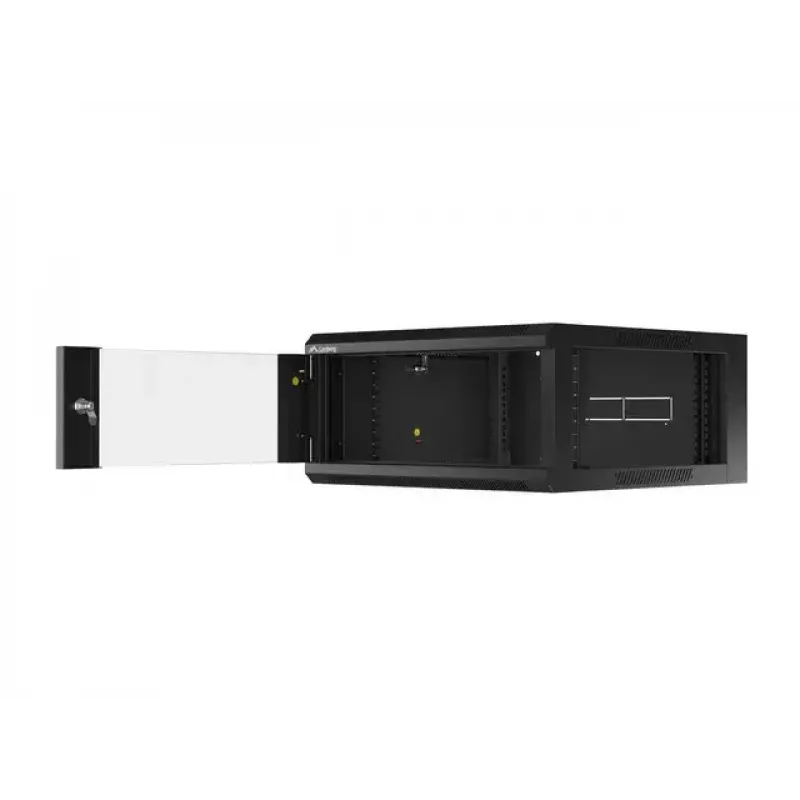

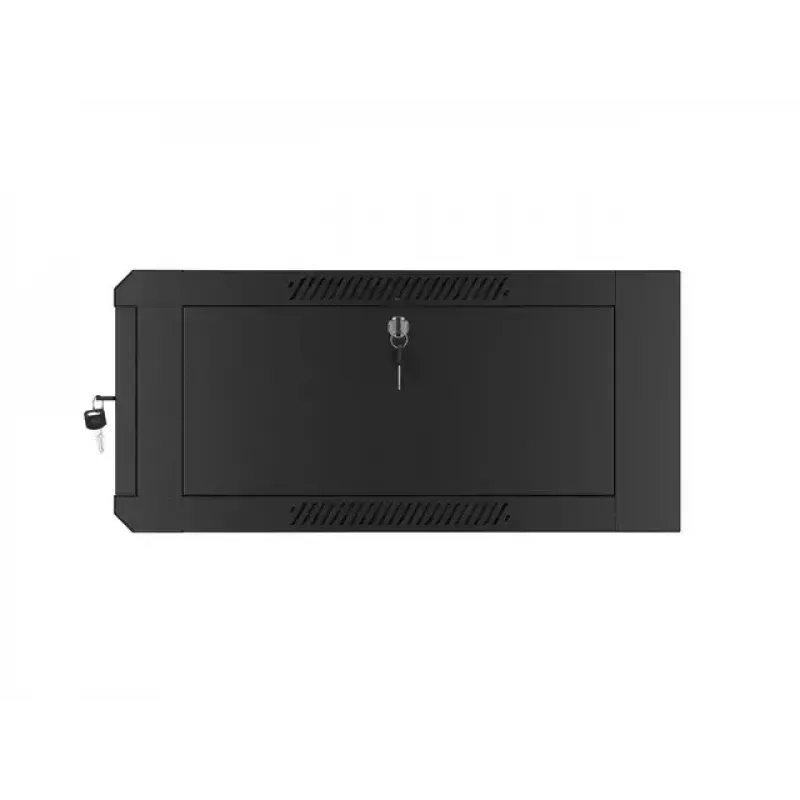

• Front door: Tempered glazed glass with lock

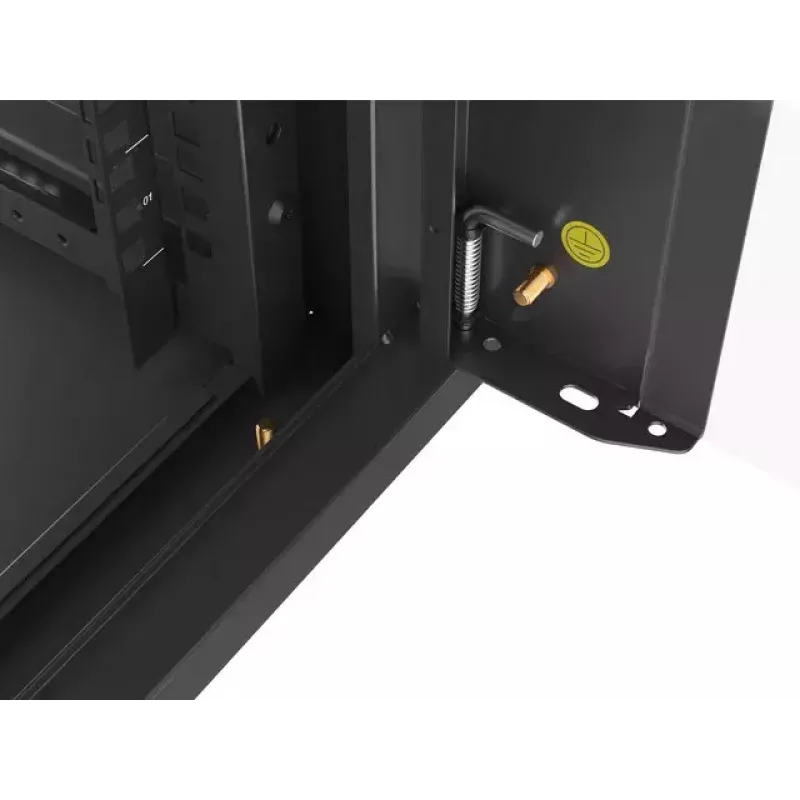

• Side panels: Steel, latch-mounted
• Cable entries: 3 detachable panels (total 230 x 45 mm)
• Ventilation: Vents in top and bottom panels

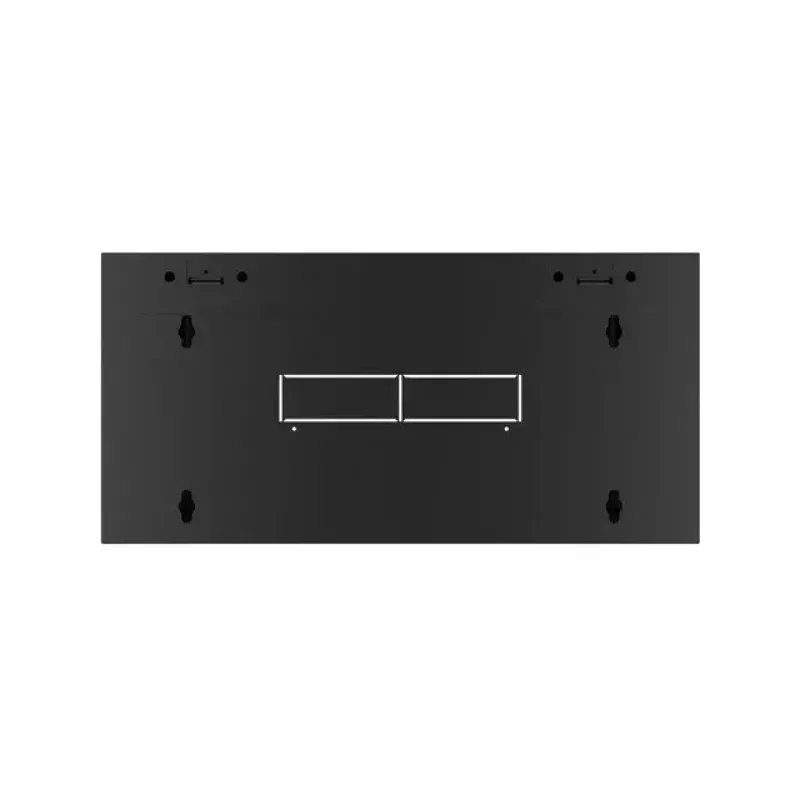

• Mounting: Wall-mounted with included flat rail and expansion anchor holes

How to use

Attach the flat wall-mount rail to the mounting surface using appropriate expansion anchors and screws suited to the wall type and expected cabinet load. Hang the cabinet on the rail and secure it by tightening the internal screws. Install equipment on the provided 19" mounting rails using the supplied M6*12 screws and cage nuts. Route cables through the detachable entry panels located on the top, bottom and center rear cover to avoid external protrusions. Use the included magnetic spirit level to ensure correct alignment during installation.

Recommendations

For safe and reliable operation, verify the wall and anchors can support the cabinet plus installed equipment (total up to 60 kg). Maintain free airflow by keeping vents and cable entries unobstructed and distribute mounted equipment to avoid concentrated weight in the front or rear. Use the supplied keys to secure doors and remove the modular lock carefully when needed.
