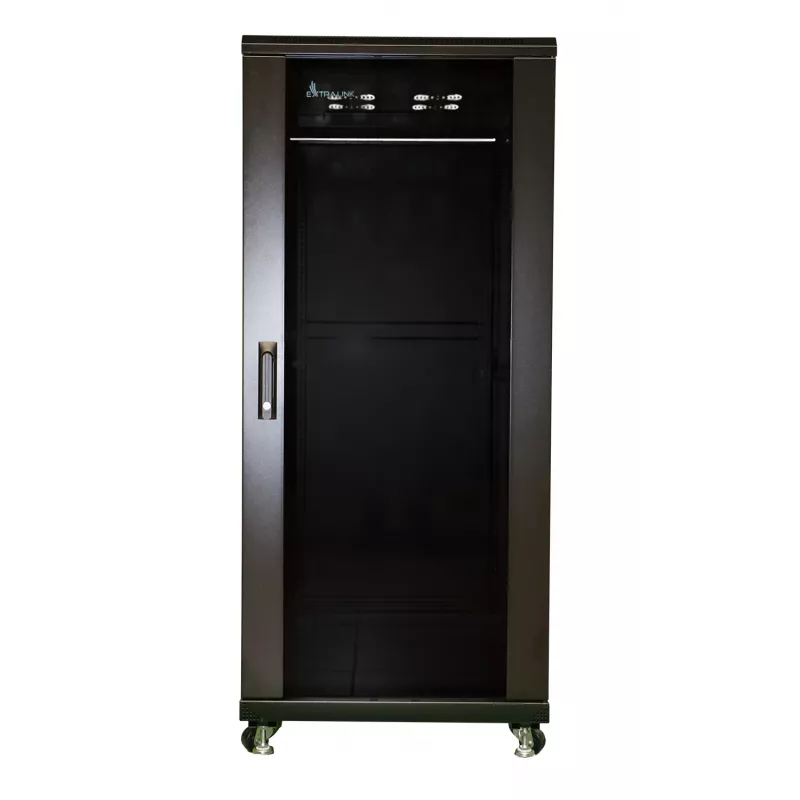

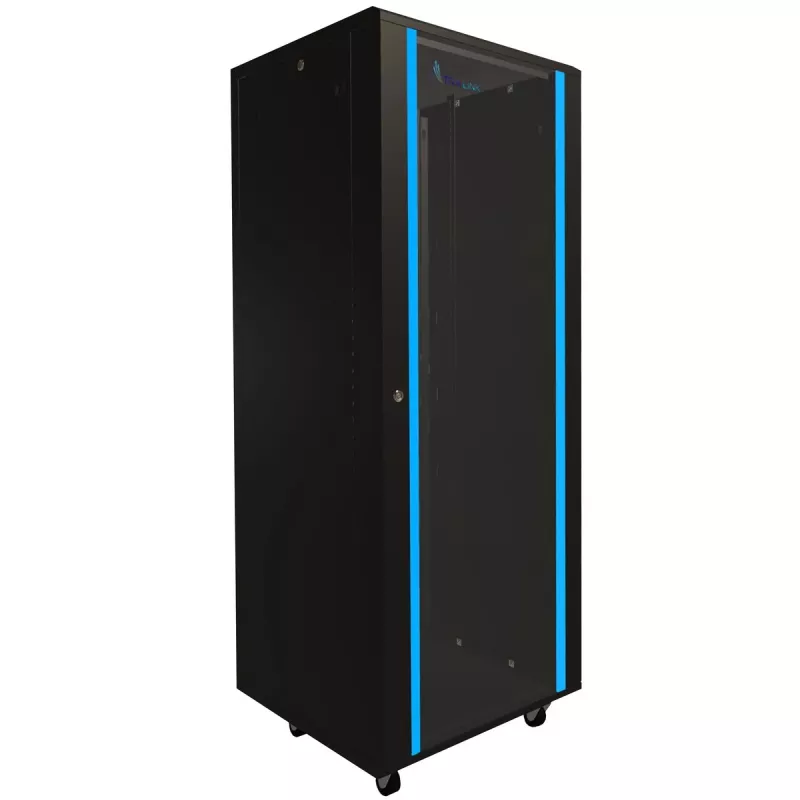

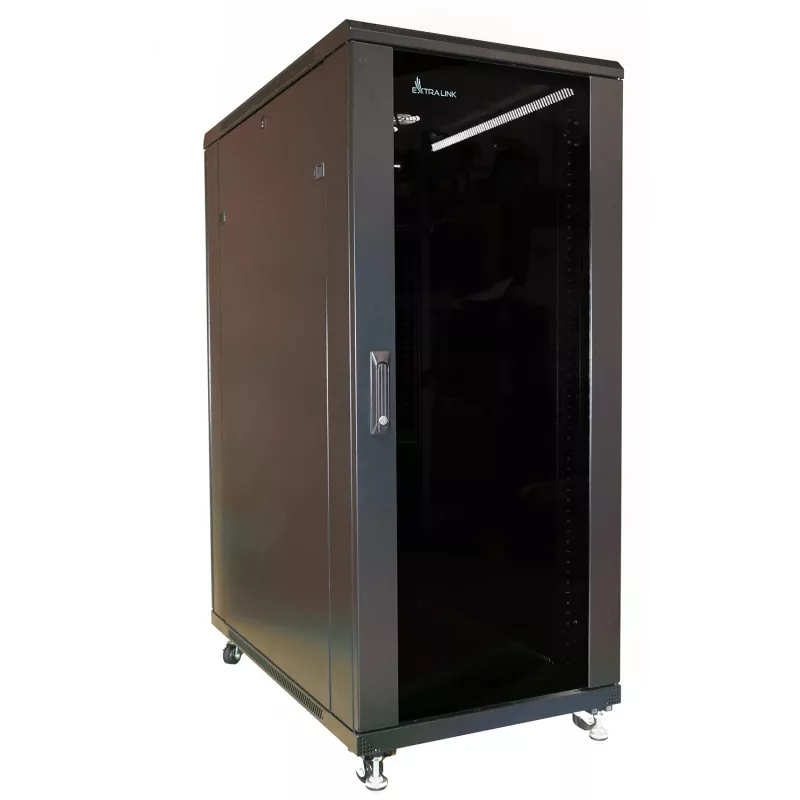

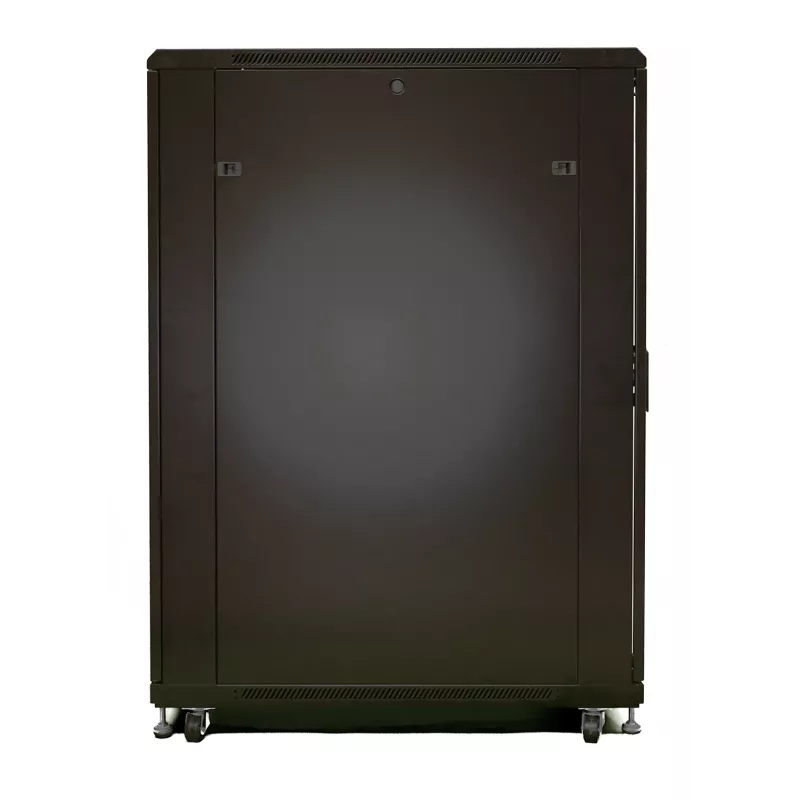

Rack autoportante Extralink armadio rack 37U 600x600 nero

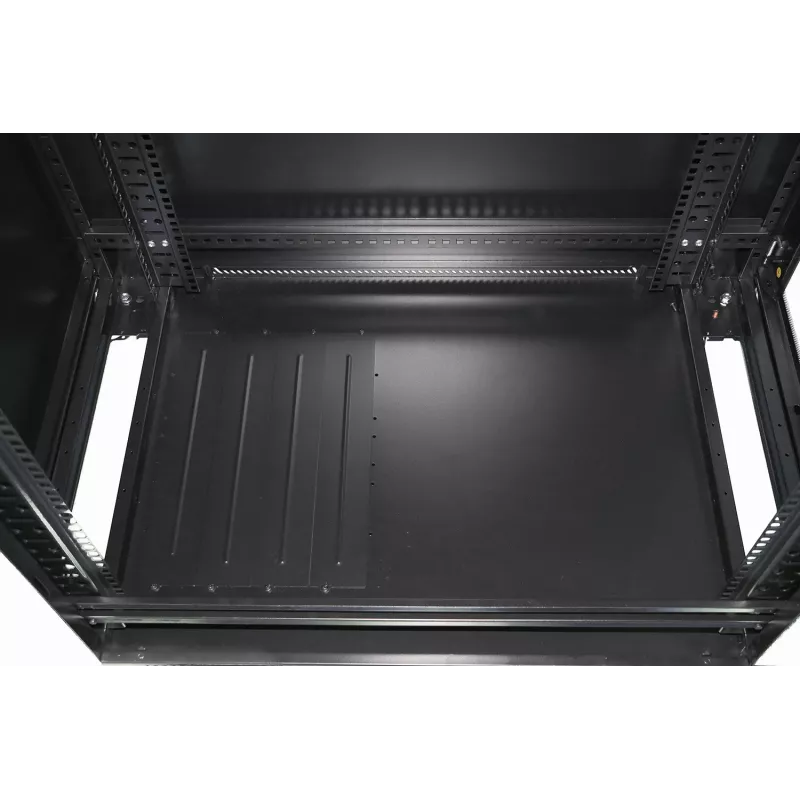

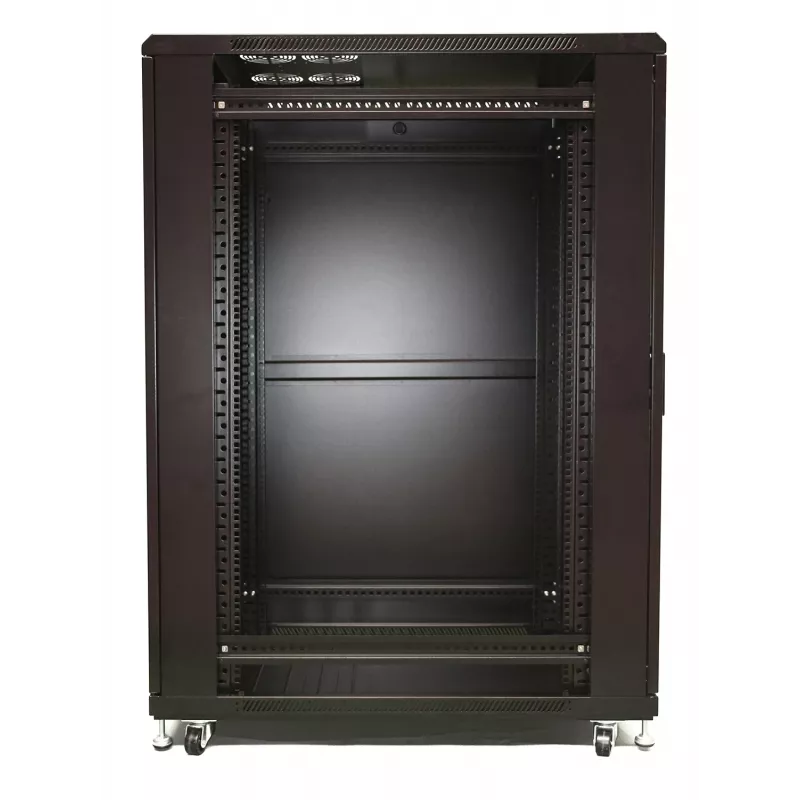

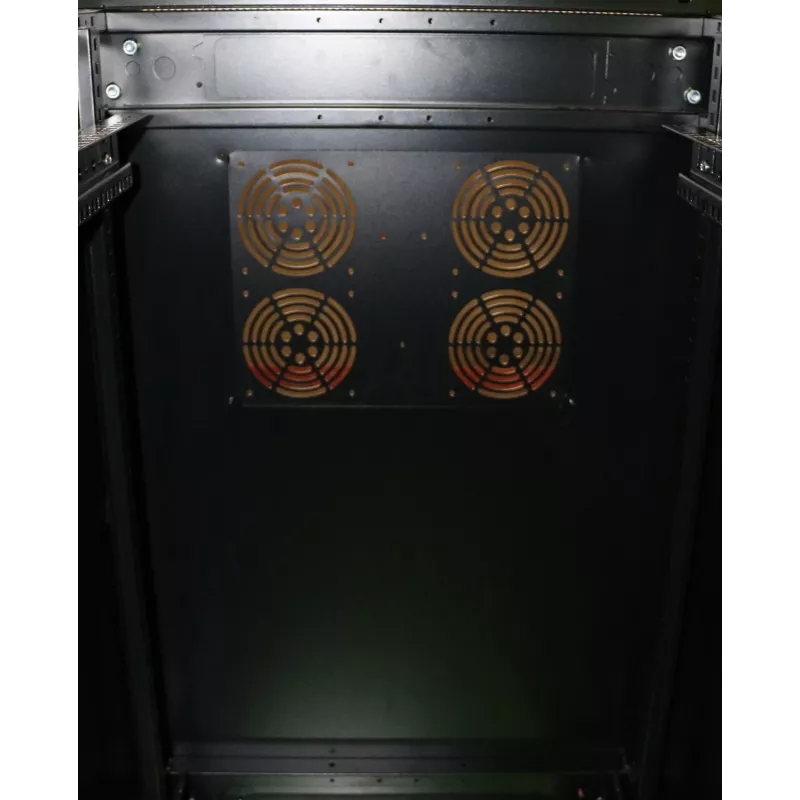

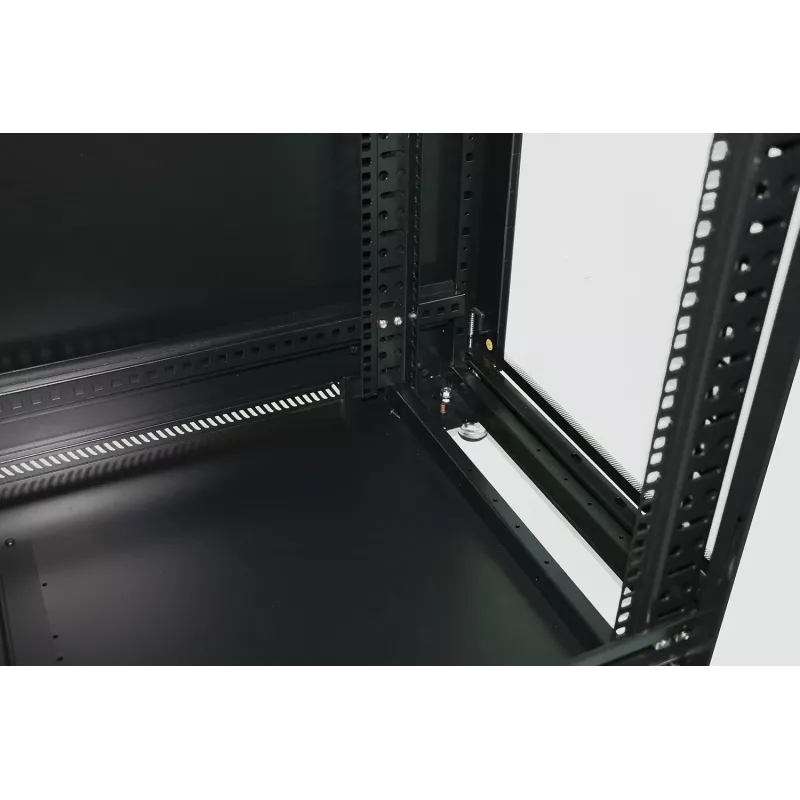

The Extralink Rackmount cabinet 37U 600x600 Black is a freestanding network rack designed for offices, server rooms and CCTV control rooms. Constructed from cold-rolled steel with a tempered glass front door that can be hinged to open left or right, the cabinet provides a secure and organized enclosure for network and surveillance equipment. Vertical rails feature 37U height markings and the total cabinet height is 1765 mm. The cabinet includes locks and keys, adjustable feet for stable placement, snap fasteners for side-panel removal, four bottom cable outlets and four ceiling fan mounting points to support active cooling.

Advantages

The rack offers a 37U mounting capacity and a compact footprint of 600 x 600 mm while supporting substantial equipment loads. Tempered glass front door improves visibility of installed devices without opening the cabinet. Snap fasteners on side panels enable quick access for maintenance, and included locks provide physical security. Multiple cable outlets and ceiling cutouts for fans help with cable management and thermal control.

Suitable for

• Office network equipment racks
• Server rooms with small to medium installations
• CCTV control rooms and NVR/DVR enclosures
• Telecommunications closets and patch panel installations

Key specifications

• Rack capacity: 37U
• Height: 1765 mm
• Dimensions (W x D): 600 x 600 mm
• Material: cold-rolled steel; tempered glass front door
• Colour: Black
• Included: locks and keys, rack rails, adjustable feet

How to use

Place the freestanding cabinet on a level surface and adjust the feet for stability. Mount equipment on the vertical 37U rails using standard rack screws and the supplied rack rails. Route power and network cabling through the bottom cable outlets and secure cables to avoid strain. If additional cooling is required, install up to four fans in the ceiling openings and connect them according to the fan manufacturer’s instructions. Use the front door lock to restrict access when needed.

Recommendations

For optimal cooling and cable management, separate power and data cables when routing through the bottom outlets and consider installing compatible fans in the ceiling cutouts if equipment generates heat. Ensure the cabinet is anchored or placed on a stable surface when fully loaded and follow standard ESD and mounting practices when installing sensitive equipment.
