Rack da parete Triton RBA-12-AD6-CAX-A1 12U bianco

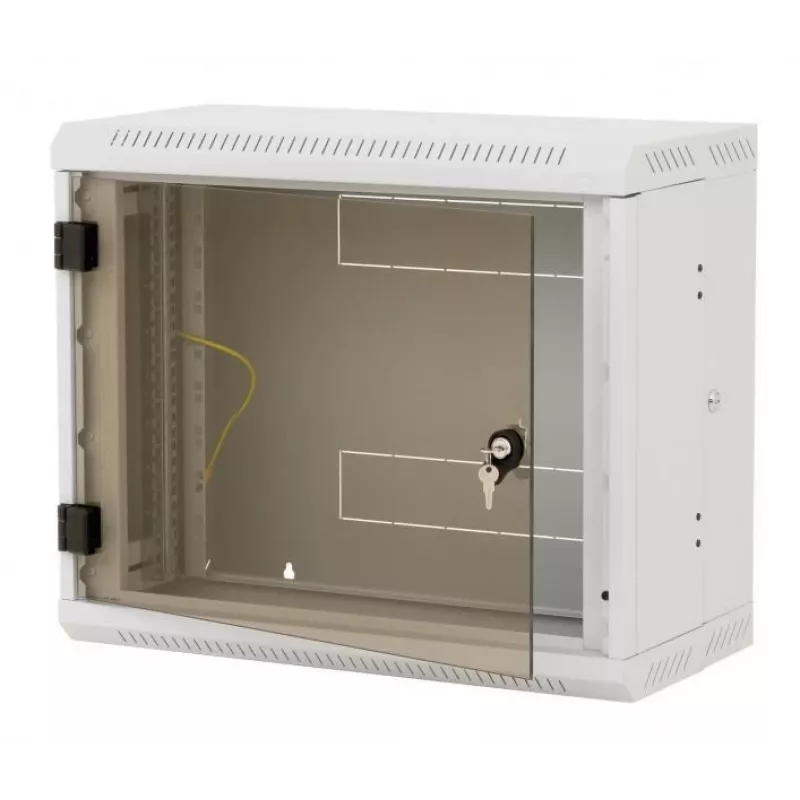

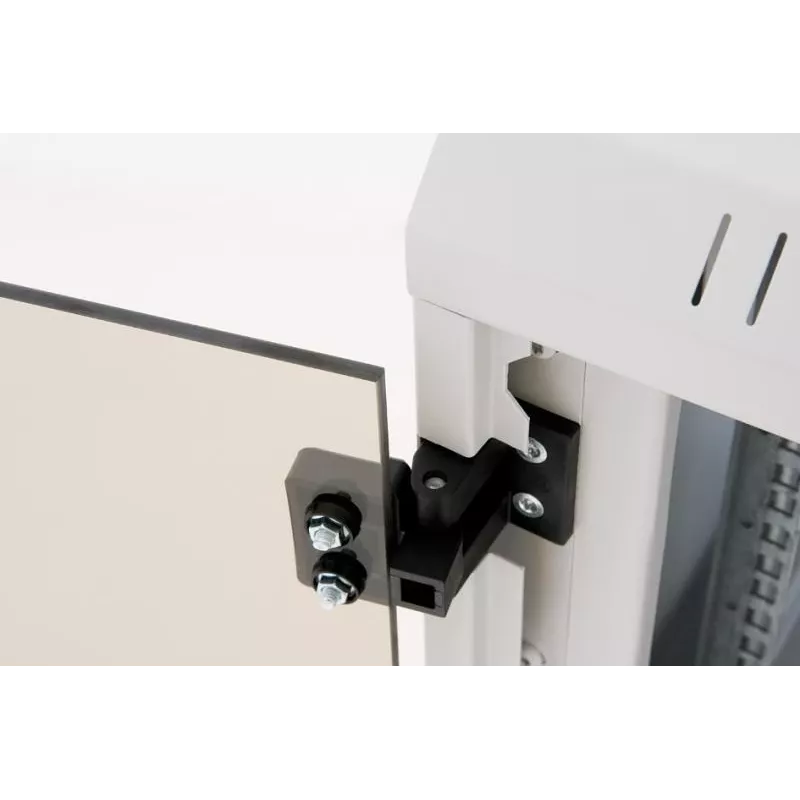

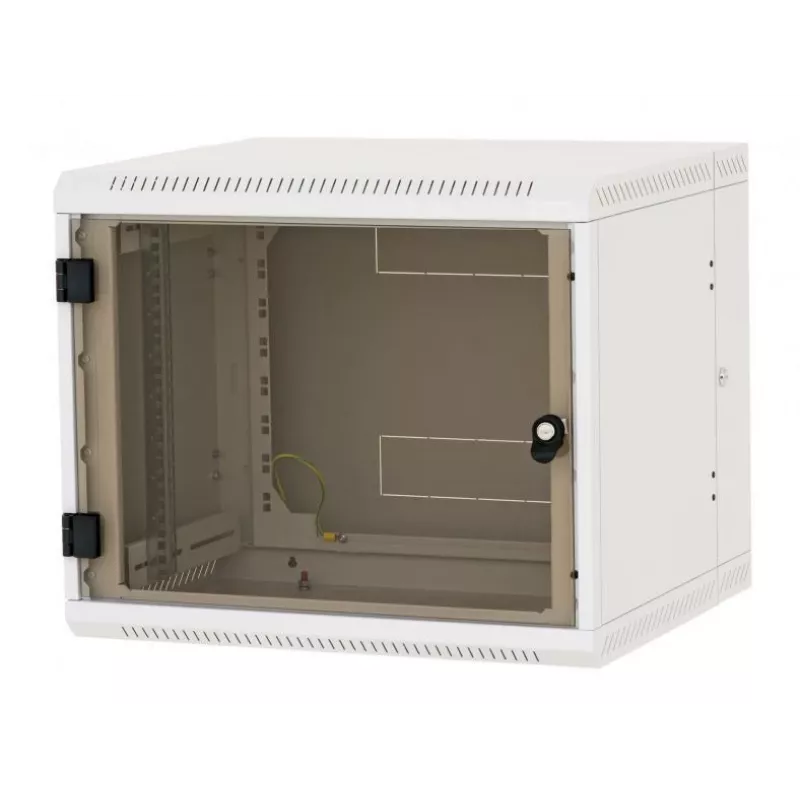

The Triton RBA-12-AD6-CAX-A1 is a 12U wall-mounted data and telecommunication cabinet designed for efficient space use and secure mounting of networking and server equipment. The cabinet has a robust welded construction with high-quality finishing and comes in a white colour. The standard front door is glazed, but steel or perforated doors are available on request. The hinge system allows nearly 180° opening and the door can be removed or reversed to change the opening direction.

Advantages

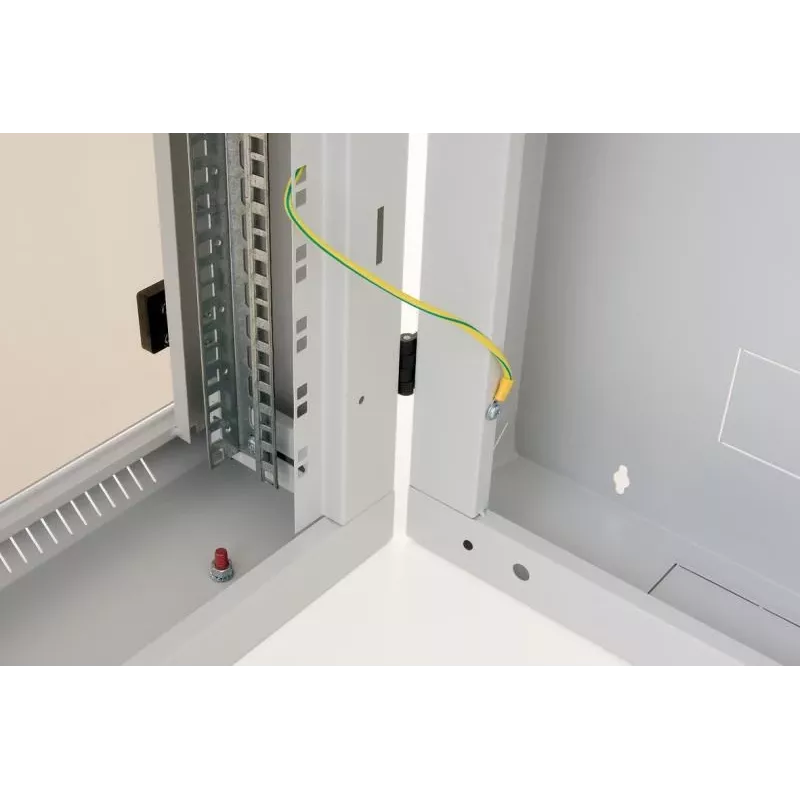

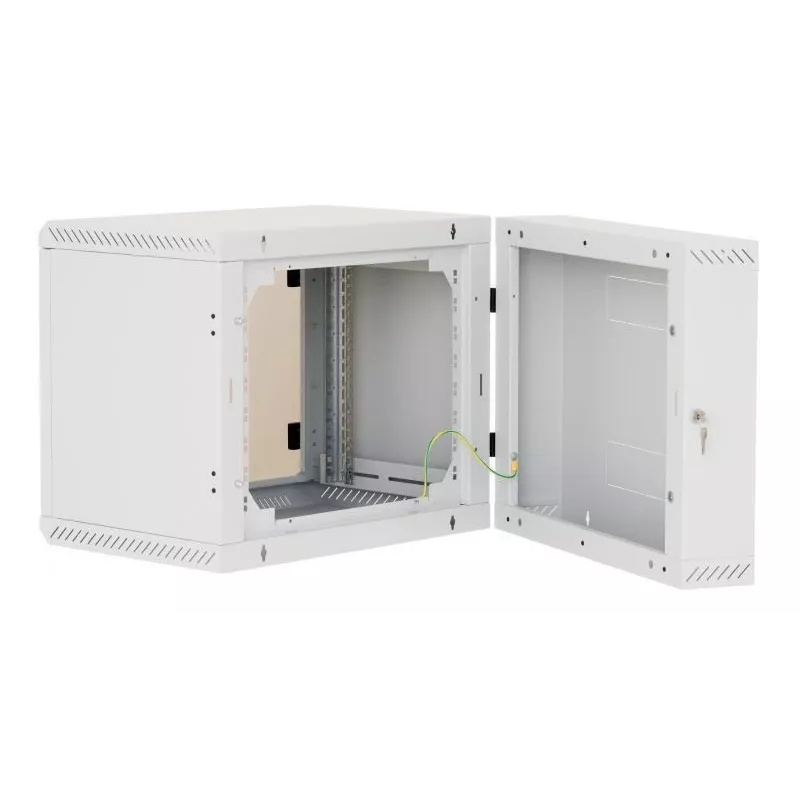

Opening parts provide easy access to the rear section and the front part can be removed after unlocking chain shackles for maintenance or installation. All metal parts are interconnected and earthed. One pair of vertical 19" rails is freely adjustable in depth, simplifying device mounting and cable management. Pre-cut breakout-type blanking panels with plastic frames and brush panels are provided in the top, bottom and rear to allow controlled cable entry and reduce dust ingress.

Suitable for

• Small server rooms and network closets
• Wall-mounted switch and patch panel installations
• Audio-visual and telecom equipment mounting
• Environments requiring compact, secured equipment housing

Key specifications

• Rack capacity: 12U
• Size (standard): 19"
• Weight: 27.8 kg
• Colour: White
• Front door: glass (standard); steel or perforated on request
• Construction: welded steel

How to use

Mount the cabinet securely to a suitable wall structure following local building codes and using appropriate anchors for the cabinet weight and loaded equipment. Adjust the pair of 19" vertical rails to the desired depth, mount equipment using standard 19" rack hardware, and manage cabling through the top, bottom or rear breakout openings. To access the rear section, unlock the chain shackles and remove or open the front section as required. Ensure that earthing continuity is maintained by leaving all interconnected metal parts in place.

Recommendations

The cabinet is intended for indoor installation on a load-bearing wall and for typical networking and telecom equipment. Verify wall anchors and mounting hardware match the combined weight of the cabinet and installed devices (manufacturer states cabinet weight 27.8 kg). For optimal airflow and dust protection, use the supplied brush blanking panels and consider placing heavier equipment lower in the rack.
