Rack da parete Triton Triton rack 19 pollici da parete 6U/500

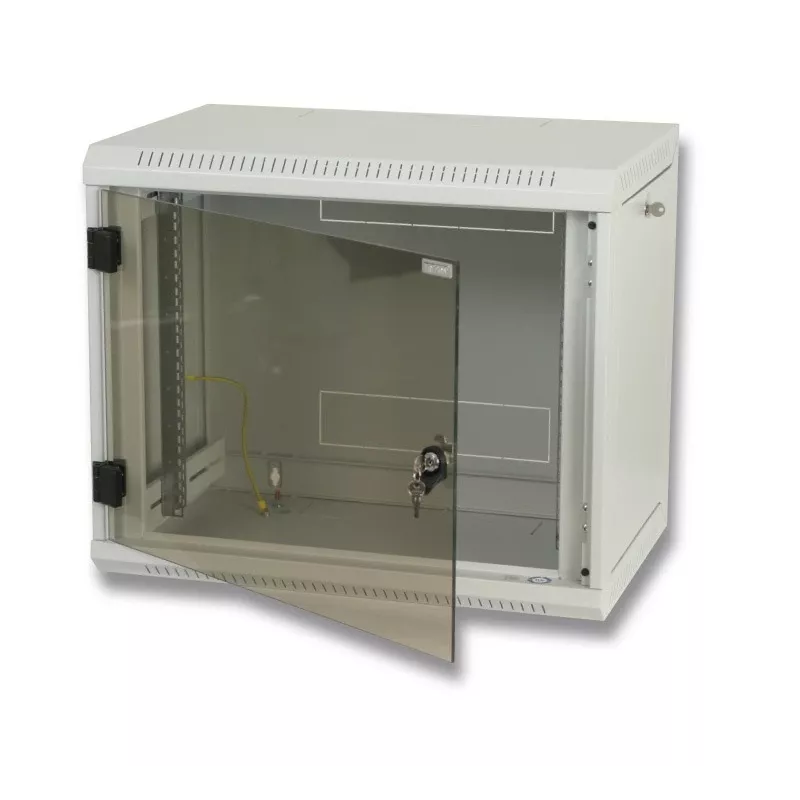

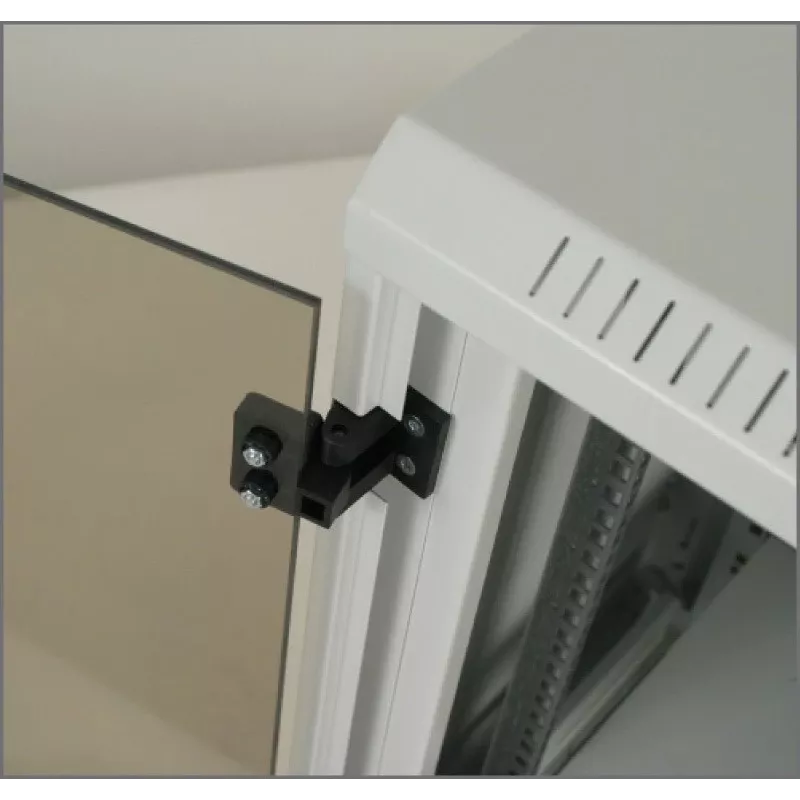

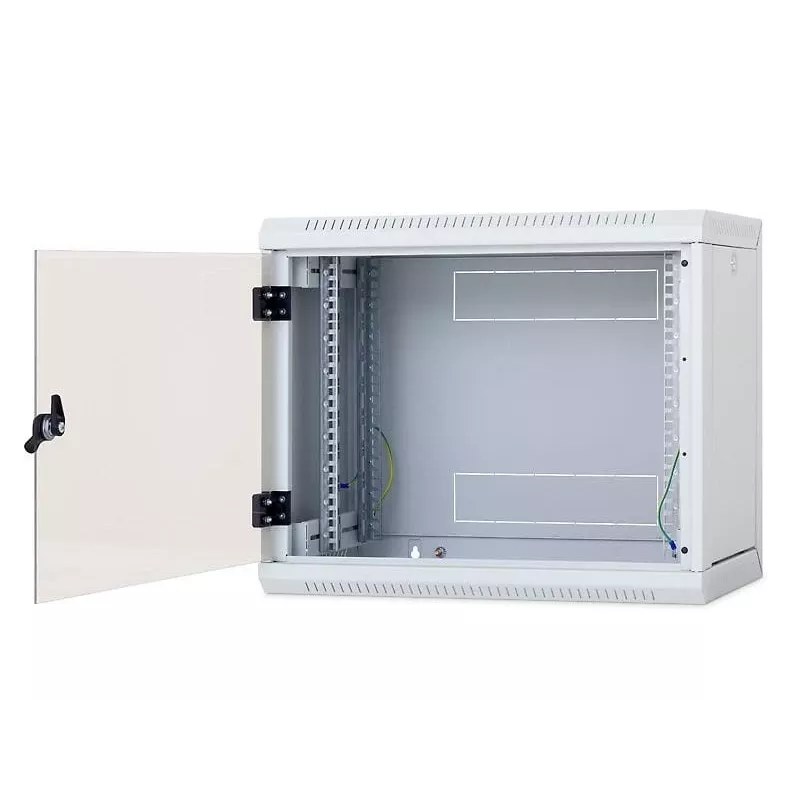

The Triton 19" Rack Wall-mount 6U/500 is a compact wall-mounted network cabinet designed for secure mounting of equipment in small spaces. It features a fully welded construction with a maximum permissible load capacity of 30 kg and removable side panels that allow access to installed components from the rear of the cabinet. The front door — available in safety hardened glass (5 mm) or full metal — opens nearly 180° and can be removed or re-hung to change the opening direction.

Advantages

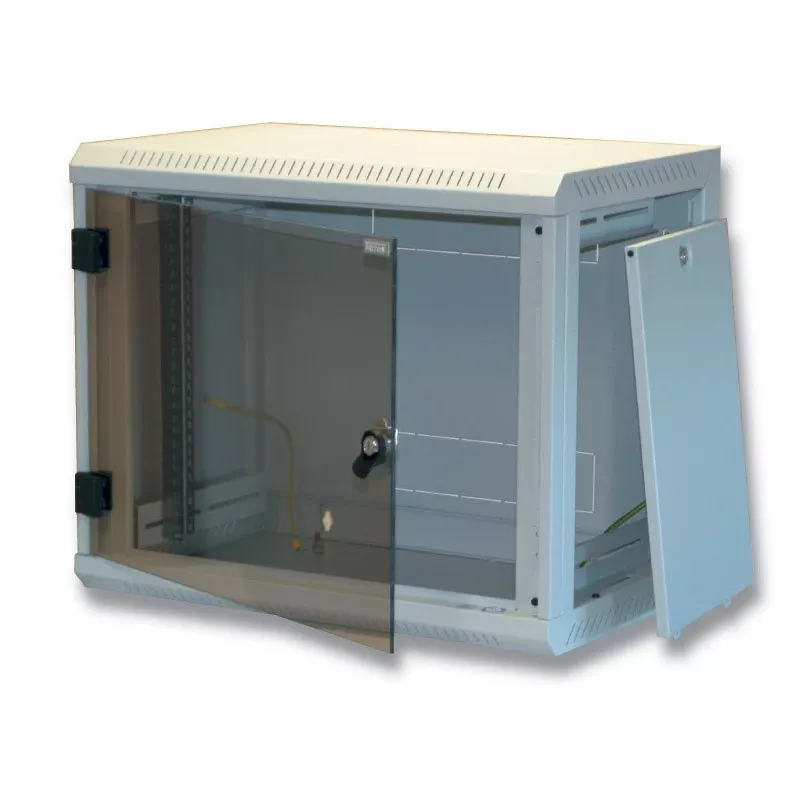

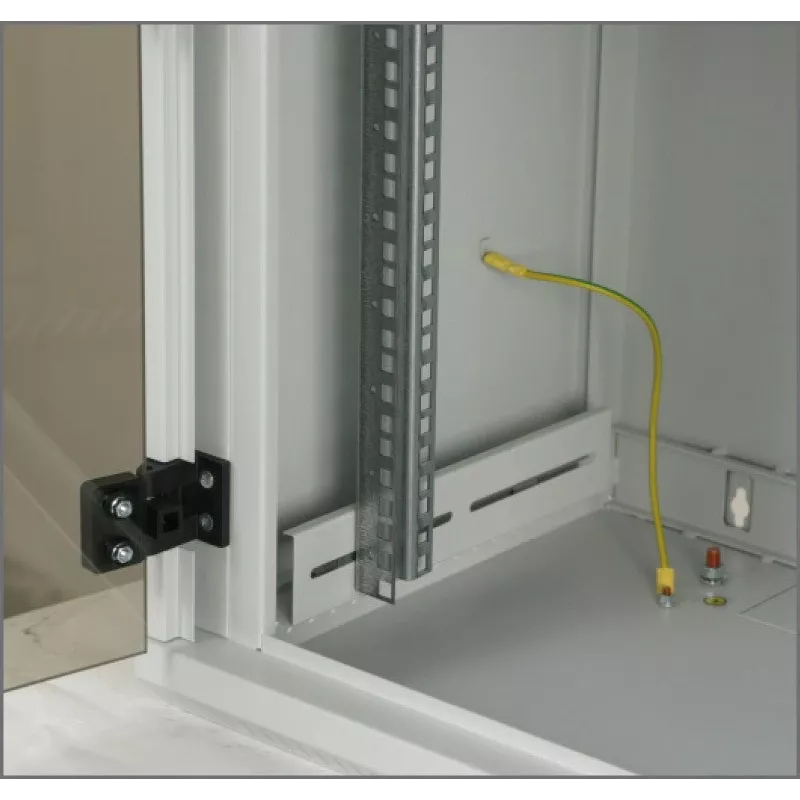

Removable side panels simplify installation and maintenance by providing rear access to components. Multiple cable entry points at the top, bottom and rear are covered with break-out style blanking panels for neat cable routing. An adjustable pair of 19" vertical rails can be moved continuously in depth to accommodate different equipment sizes. Perforated panels enable passive airflow and the cabinet can accept 19" fan units if forced cooling is required. All metal parts are connected to an earthing system for electrical safety.

Suitable for

• Wall-mounted network switches and patch panels
• Small rack servers and NAS units within 6U height
• Telecommunications or CCTV equipment for small offices or server rooms

Key specifications

• Brand: Triton
• Model / MPN: RUA-06-AS5-CAX-A1
• EAN: 8595105019740
• Rack capacity: 6U
• Maximum load capacity: 30 kg
• Weight: 17 kg
• Product colour: Grey
• Front door options: 5 mm safety hardened glass or full metal
• Construction: Fully welded steel sheet

How to use

Mount the cabinet securely to a suitable load-bearing wall following local mounting and safety guidelines. Remove side panels or open the front door to position and fasten 19" equipment to the adjustable vertical rails at the desired depth. Route cables through the top, bottom or rear cable entries and remove the appropriate break-out blanking panels as needed. Connect the cabinet earthing to the building grounding system before powering installed equipment.

Recommendations

Install only equipment whose combined weight does not exceed the 30 kg maximum. Use the removable side panels for installation and maintenance access, and consider adding 19" fan units if natural perforation cooling is insufficient for heat-producing devices.
