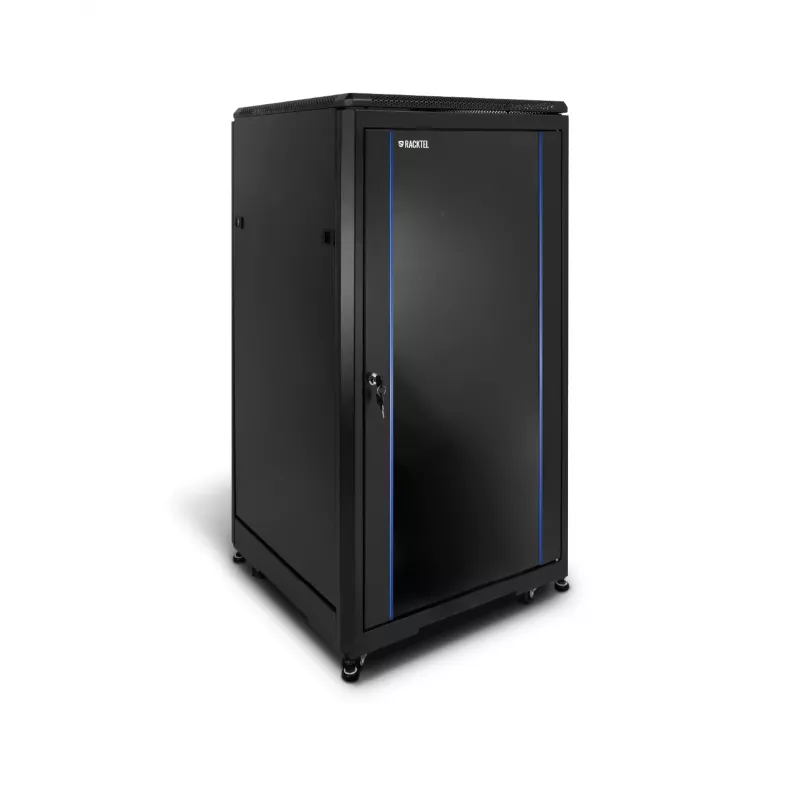

RACKTEL RL-6042SR armadio rack server 42U 600x1000 flat-pack, nero

The RACKTEL RL-6042SR is a professional 42U freestanding server rack cabinet designed for efficient and secure housing of 19-inch network and server equipment. With external dimensions of 600mm width and 1000mm depth, this flat-pack (self-assembly) cabinet offers a robust cold-rolled steel construction with a static load capacity of 800 kg. It features perforated steel front and rear doors for optimal airflow, lockable side panels, and adjustable 19-inch mounting rails. Ideal for data centers, server rooms, and IT installations requiring reliable equipment protection and cable management.

Advantages

High load capacity of 800 kg ensures support for heavy server and network equipment. Perforated steel doors provide excellent ventilation while maintaining security. Flat-pack design reduces shipping volume and allows easy on-site assembly. Adjustable mounting rails accommodate equipment of varying depths. Lockable doors and side panels enhance physical security.

Suitable for

• Data centers and server rooms
• Enterprise network infrastructure
• Telecommunications and IT equipment housing
• Audio/visual and broadcast equipment racks

Key specifications

• Rack Height: 42U
• External Dimensions (WxDxH): 600 x 1000 x 2055 mm
• Internal Usable Depth: 880 mm
• Material: Cold-rolled steel
• Colour: Black (RAL 9005)
• Front Door: Perforated steel, lockable
• Rear Door: Perforated steel, lockable
• Side Panels: Removable, lockable
• Mounting Rails: 19-inch standard, adjustable depth
• Static Load Capacity: 800 kg
• Cable Entry: Top and bottom with removable panels
• IP Protection Rating: IP20
• Included Accessories: 4x leveling feet, 4x castors, 2x keys, mounting hardware
• Compliance: RoHS, CE

Recommendations

For optimal airflow and cable management, consider using cable management panels and blanking panels. Ensure proper ventilation in the installation environment. Assembly requires two people and basic tools; follow the included manual.
