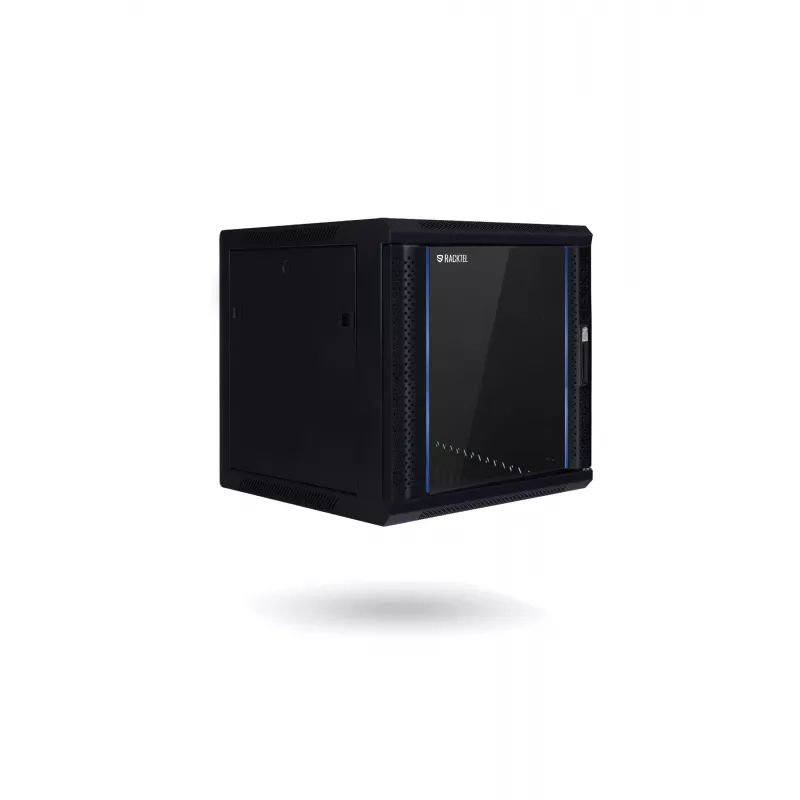

RACKTEL RL-6609WR armadio rack da parete 9U 600x600mm nero

The RACKTEL RL-6609WR is a 9U wall-mount network cabinet designed for secure and organized installation of 19-inch network equipment. With a compact 600x600mm footprint and a sleek black finish, this cabinet is ideal for small to medium-sized IT environments, server rooms, and offices where space is at a premium. The flat-pack design allows for easy self-assembly, reducing shipping volume and cost.

Advantages

This cabinet offers robust construction from SPCC cold rolled steel, ensuring durability and stability. The front tempered glass door with lock provides visibility of equipment while maintaining security. Removable and lockable side panels allow for easy access during installation and maintenance. Passive ventilation with fan-ready top panel ensures adequate airflow, and the cabinet supports up to 60 kg of equipment.

Suitable for

• Network switches, patch panels, and routers
• Small server installations
• Telecommunications and data distribution points
• Office and retail environments requiring secure equipment housing

Key specifications

• Rack Units: 9U
• External Dimensions (WxDxH): 600 x 600 x 460 mm
• Material: SPCC Cold Rolled Steel
• Door: Front tempered glass with lock
• Side Panels: Removable and lockable
• Load Capacity: Up to 60 kg
• Color: Black (RAL 9005)
• Protection Rating: IP20
• Cable Entry: Top and bottom
• Ventilation: Passive, fan ready
• Mounting Rails: Two pairs of adjustable 19-inch rails
• Included: Mounting hardware and keys

Recommendations

For optimal airflow, consider installing optional fans in the top panel. Ensure the wall mounting surface can support the total weight of the cabinet and equipment. This cabinet is RoHS and CE compliant.
