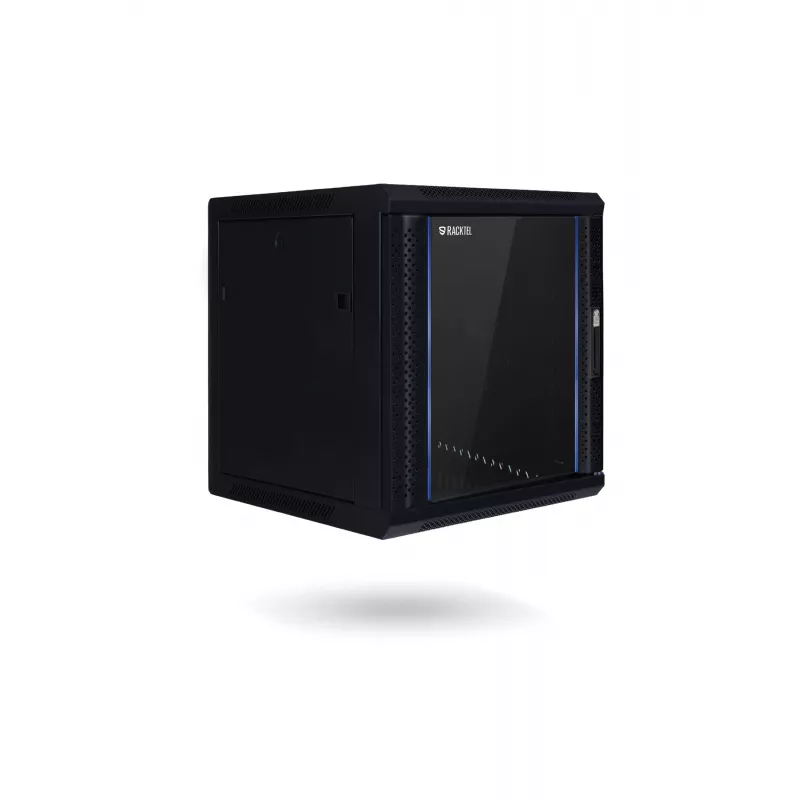

RACKTEL RL-6612WR armadio rack da parete 12U 600x600, nero

The RACKTEL RL-6612WR is a high-quality 12U wall-mounted rack cabinet designed for secure and organized installation of network and IT equipment. With a compact 600x600 mm footprint and a sleek black finish (RAL 9005), this cabinet is ideal for small to medium-sized server rooms, offices, and data closets. It comes as a flat-pack for self-assembly, offering flexibility and ease of transport.

Advantages

This rack cabinet provides robust construction from cold-rolled steel, ensuring durability and a load capacity of up to 60 kg. The tempered glass front door with lock offers visibility while securing equipment. Removable side panels with locks allow easy access for maintenance. Adjustable mounting rails accommodate various equipment depths, and cable entry points at top and bottom with brush strips keep cables organized. Passive ventilation (perforated top/bottom, fan-ready) ensures adequate airflow.

Suitable for

• Network switches, patch panels, and routers
• Small servers and UPS units
• Audio/video equipment in commercial installations
• IT infrastructure in offices, schools, and retail spaces

Key specifications

• Rack Units: 12U
• External Dimensions (WxDxH): 600 x 600 x 635 mm
• Material: Cold Rolled Steel
• Front Door: Tempered Glass with Lock
• Side Panels: Removable with Locks
• Load Capacity: 60 kg
• Colour: Black (RAL 9005)
• Cable Entry: Top and Bottom with Brush Strips
• Mounting Rails: Adjustable Depth
• Ventilation: Passive (Perforated Top/Bottom, Fan Ready)
• IP Rating: IP20
• Standard Compliance: EIA-310-D, IEC 60297-2
• Included Accessories: Mounting hardware, 2x keys

Recommendations

For optimal performance, ensure the wall is capable of supporting the cabinet's weight (up to 60 kg fully loaded). Use appropriate wall anchors (not included). This cabinet is designed for indoor use only.
