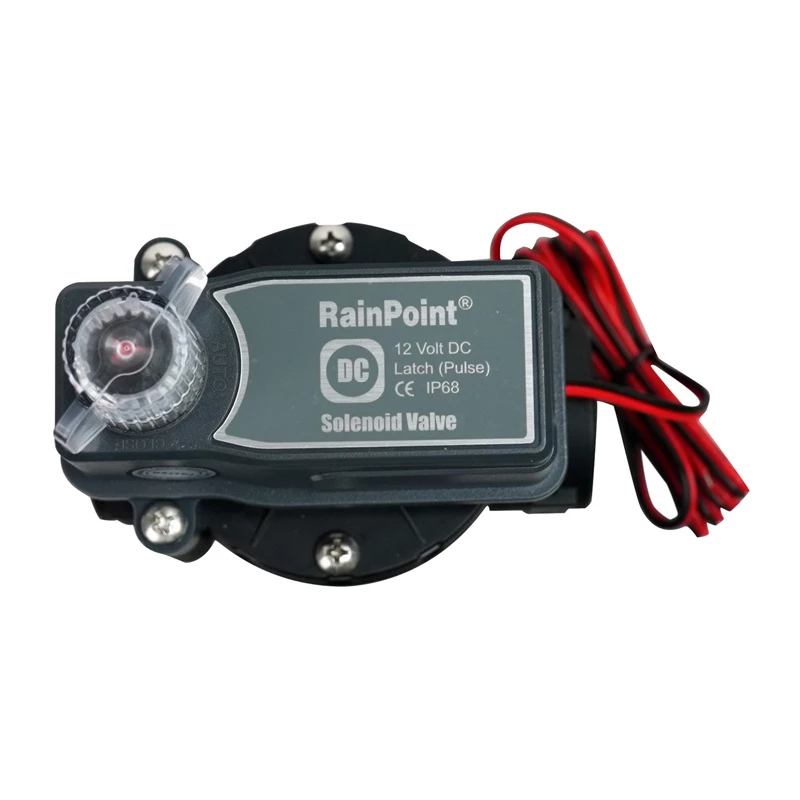

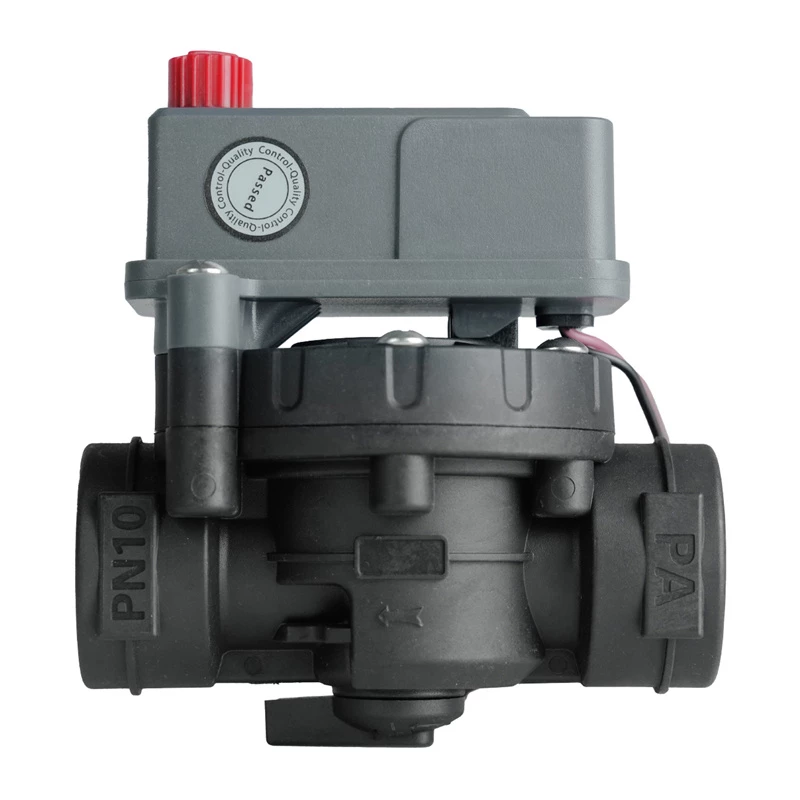

RAINPOINT 1 DC valvola elettronica di irrigazione

The RainPoint BIV025ESC-DC is a 1” DC electronic irrigation valve designed to automate watering systems. It operates at 9–24 V DC using latch technology for efficient water flow control with minimal energy consumption.

Key features

• 1” thread connection
• 9–24 V DC (Latch) operating voltage
• Pulse (DC Latch) control type
• Pulse duration ≥200 ms
• Minimum capacitance 4700 µF
• Operating pressure 0.2–10 bar
• Operating temperature up to 60°C
• IP68 protection rating

Specifications

• Brand: Rainpoint
• MPN: BIV025ESC-DC
• Connection diameter: 1”
• Operating voltage: 9–24 V DC (Latch)
• Control type: Pulse (DC Latch)
• Pulse duration: ≥200 ms
• Minimum capacitance: 4700 µF
• Operating pressure: 0.2–10 bar
• Operating temperature: up to 60°C
• Protection rating: IP68
