Reely XT60 Serie adattatore (AM-MC07)

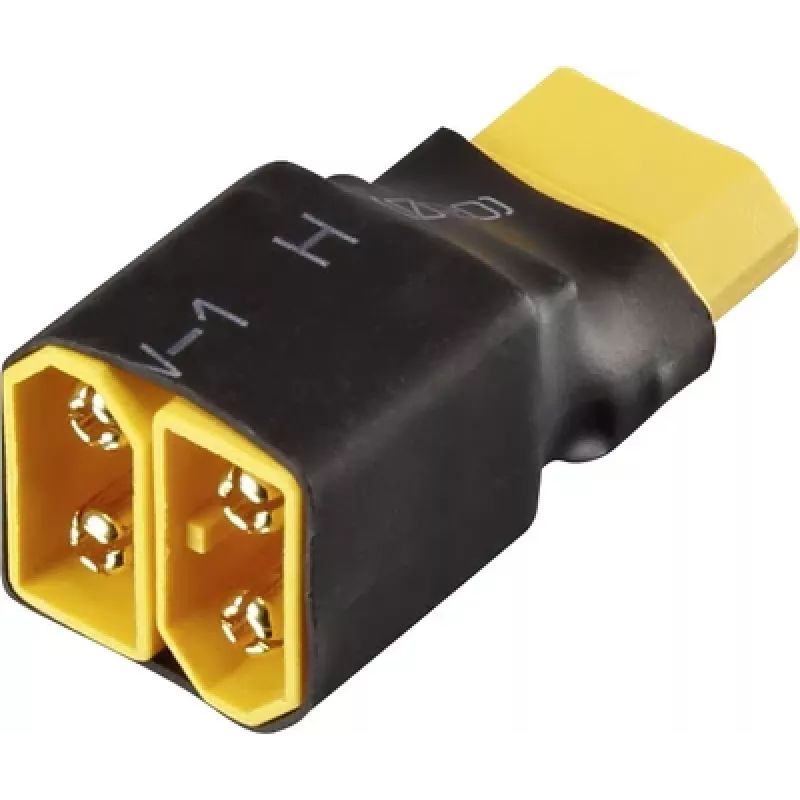

For RC hobbyists and drone builders who need to run two LiPo batteries in series, the Reely XT60 Series Adapter (AM-MC07) is a direct plug-in solution that doubles voltage without soldering. It connects two female XT60 battery connectors to a single male XT60 output, making it ideal for high-voltage setups in cars, boats, and aircraft.

Key specifications

• Adapter type: Series connection adapter
• Input: 2x female XT60
• Output: 1x male XT60
• Max continuous current: 60 A
• Max peak current: 90 A
• Max voltage: 60 V
• Housing material: High-temperature nylon
• Contact material: Gold-plated brass
• Color: Yellow
• Compatibility: Universal XT60 connector

Why choose it

This adapter eliminates the need for custom wiring when connecting batteries in series. Its gold-plated contacts ensure low resistance and reliable power transfer, while the high-temperature nylon housing withstands demanding RC environments.

Ideal use cases

• Increasing voltage for high-performance RC models
• Connecting two LiPo packs to a single ESC
• Quick series connections in the field without tools

Good to know

The adapter is wire-free and plugs directly between batteries and ESC. Always ensure the total series voltage does not exceed the ESC's rating.
