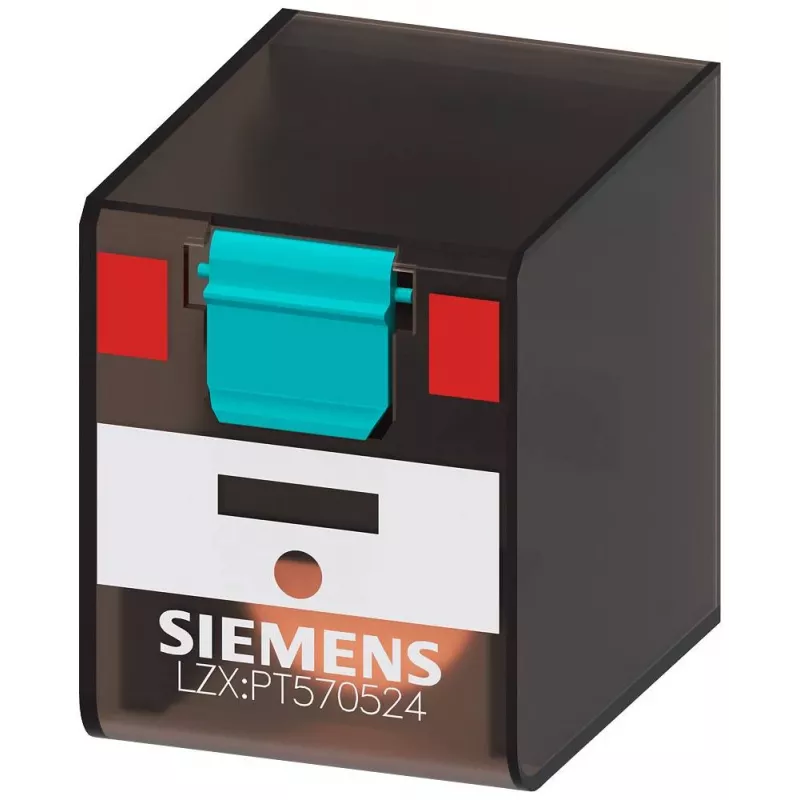

Relè a innesto Siemens SIRIUS LZX 24V AC 4CO 6A LZX:PT570524

This plug-in relay from the Siemens SIRIUS LZX series switches up to 6 A with four changeover contacts. It operates on a 24 V AC coil and mounts directly into a standard relay socket.

Advantages

The AgNi contacts provide reliable switching for resistive and slightly inductive loads, while the plug-in design simplifies installation and maintenance. The relay is built for a long mechanical life of 30 million operations.

Suitable for

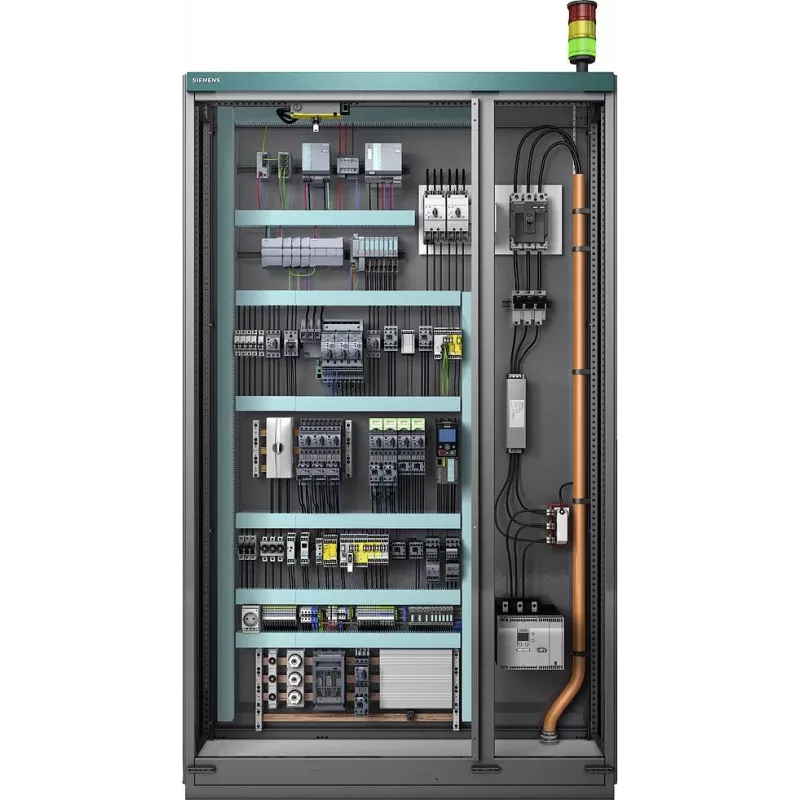

• Industrial control panels
• HVAC systems
• General automation and signal switching

Key specifications

• Coil voltage: 24 V AC

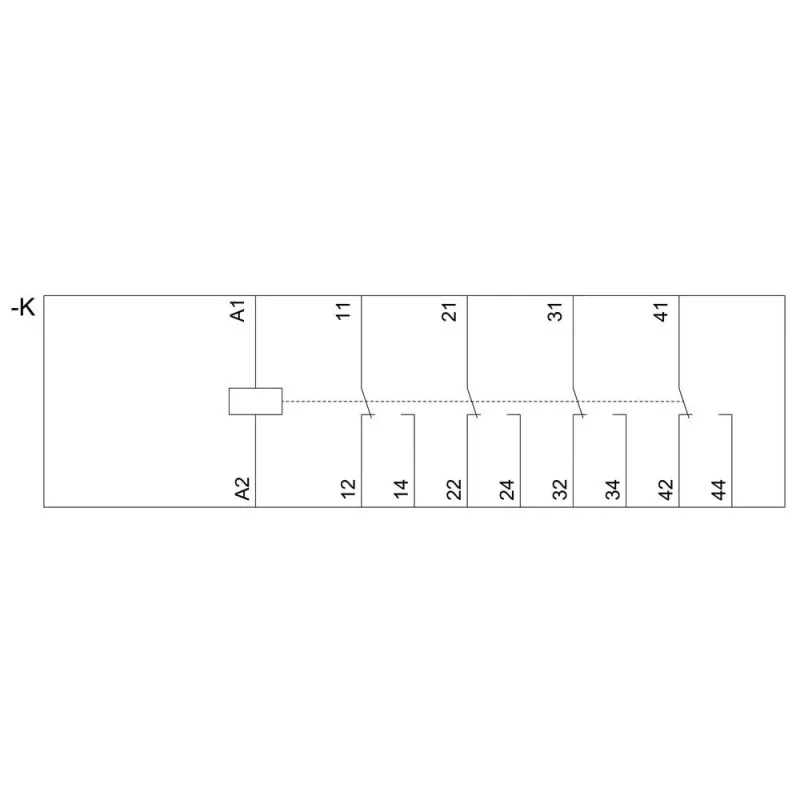

• Contact configuration: 4 changeover (4PDT)
• Contact rating: 6 A
• Max switching voltage: 250 V AC / 24 V DC
• Contact material: AgNi
• Coil power consumption: 1.2 VA
• Number of pins: 14
• Mounting type: Plug-in
• Operating temperature: -40 to +70 °C
• Electrical life: 100,000 operations at rated load
• Mechanical life: 30,000,000 operations

Recommendations

For reliable switching in demanding industrial environments, this relay offers a proven design with a wide temperature range and high mechanical endurance.
