Revopoint Inspire 2 Standard Edition Scanner 3D - Portatile e da Tavolo, Luce Strutturata Infrarossa a Doppio Asse, Precisione 0,05 mm, Colore 24-Bit

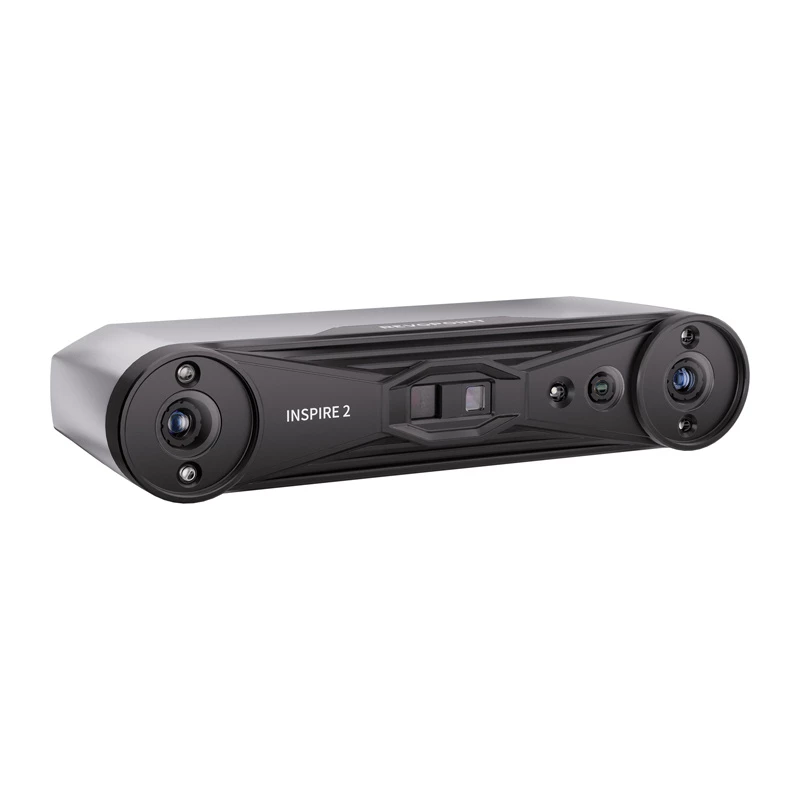

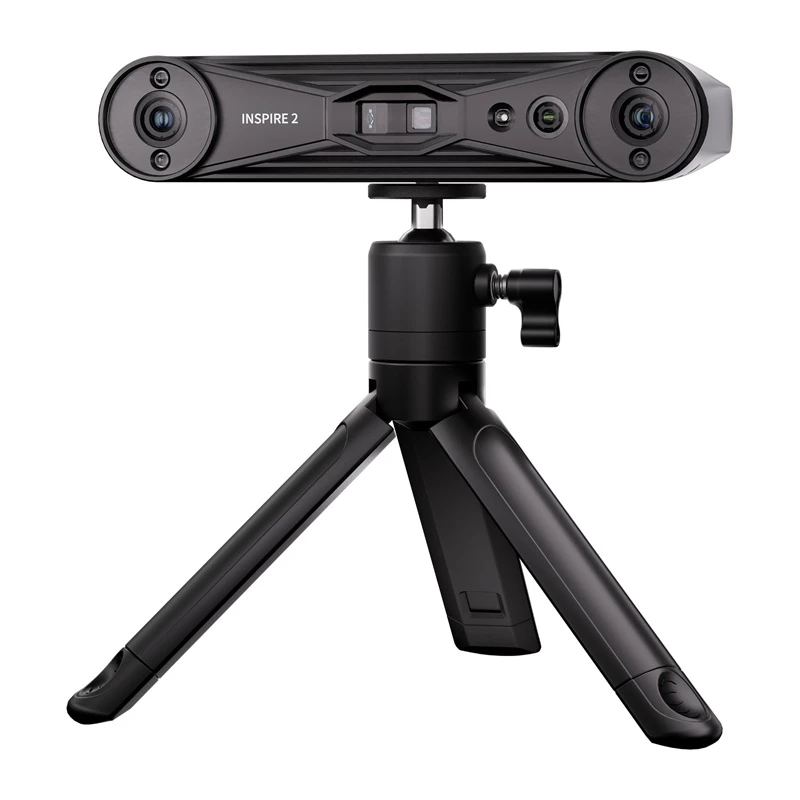

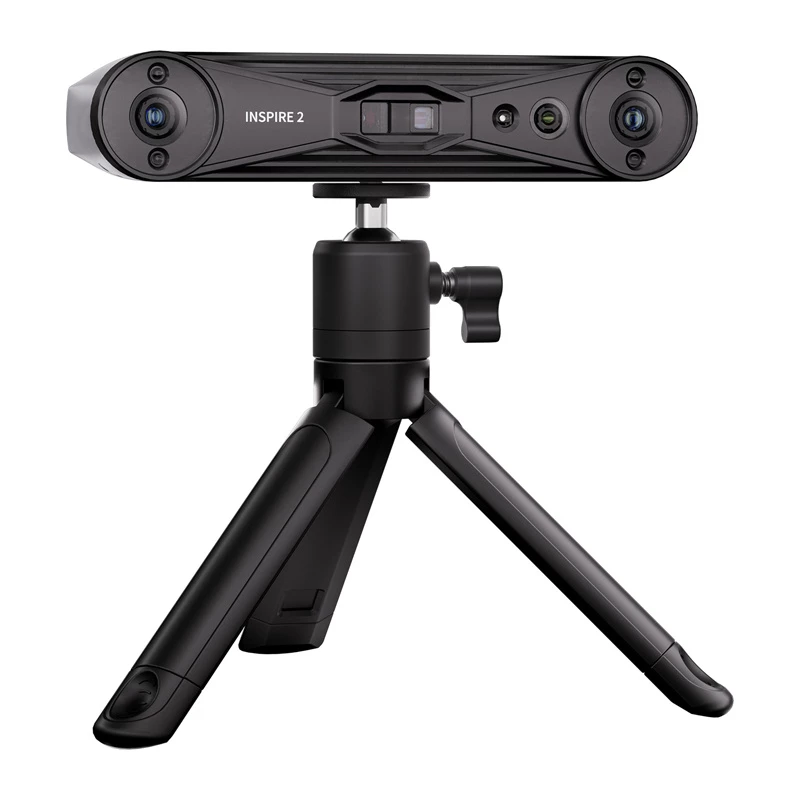

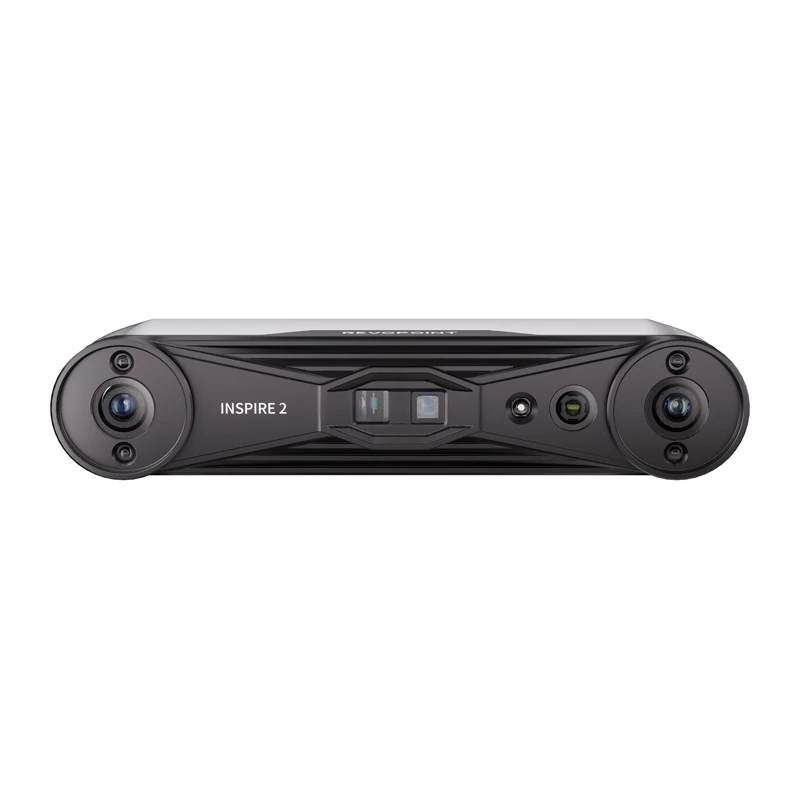

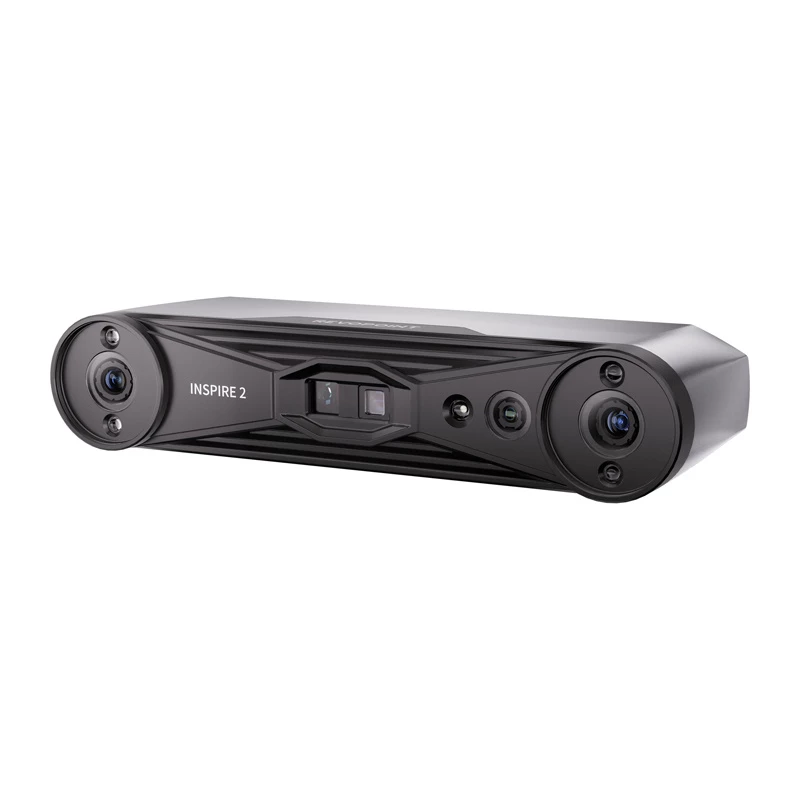

The Revopoint Inspire 2 is a compact, handheld 3D scanner designed for use in both mobile and stationary modes. It utilizes dual-camera technology with structured infrared light and a multi-line laser, allowing the scanning method to be tailored to specific applications. The device supports objects ranging from 20 × 20 × 20 mm to as large as 2 × 2 × 2 m, and with single-frame accuracy of up to 0.05 mm and precision of up to 0.03 mm, it is ideal for projects requiring detailed mapping. The Inspire 2 works with computers (Windows, macOS) as well as mobile devices (Android, iOS), offering great flexibility. This is complemented by fast scanning at up to 90 frames per second and export to popular 3D formats, making the model immediately ready for further use.

Advantages

Precision That Makes a Difference: Accuracy of up to 0.05 mm translates to highly faithful reproduction of details, which is crucial when working with mechanical components, sculptures, or reference models. In practice, this means fewer corrections during post-processing and greater fidelity of the model to reality. Additionally, volumetric accuracy of 0.05 mm + 0.1 mm × object length ensures that proportions and dimensions are preserved even in larger scans, which is particularly important in reverse engineering or part design. Two scanning modes – greater flexibility: The use of two scanning technologies provides greater control over the final result. Structured light is ideal for capturing fine details and textures, while multi-line laser mode excels at scanning larger objects or those with reflective surfaces. This dual-mode capability allows users to adapt to different scanning scenarios without compromising quality.

Suitable for

• Reverse engineering and part design
• Quality control and inspection
• Cultural heritage preservation
• Product design and prototyping
• Education and research

Key specifications

• Scanning Technology: Dual-axis Infrared Structured Light
• Accuracy: Up to 0.05 mm
• Minimum Point Distance: 0.05 mm
• Scanning Speed: Up to 18 fps (1,800,000 points/s)
• Single Capture Range: 220 mm x 130 mm
• Working Distance: 200 mm - 500 mm
• Color Scanning: Yes, 24-bit True Color
• Color Camera Resolution: 2 Megapixels
• Tracking Modes: Feature, Marker, Hybrid
• Output Formats: OBJ, STL, PLY, ASC, 3MF

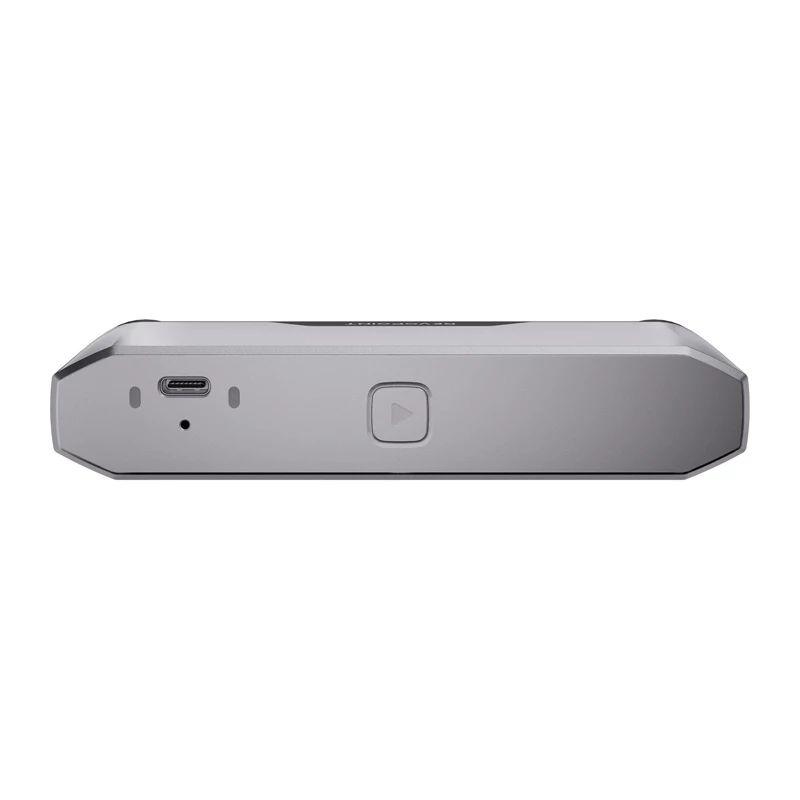

• Connectivity: USB Type-C
• Compatible Operating Systems: Windows 10/11 (64-bit), macOS 10.15+, Android 11+, iOS 15+
• Included Software: Revo Scan 5, Revo Studio, Revo Calibration
• Power Input: 5V/2A
• Minimum PC CPU: Intel Core i7 8th Gen / AMD Ryzen 7 3000 series or higher
• Minimum PC RAM: 16 GB
• Minimum PC GPU: NVIDIA GeForce RTX 2060 / AMD Radeon RX 5700 XT (6GB VRAM) or higher
• Calibration: Automatic Calibration

Recommendations

For optimal performance, ensure your computer meets the minimum system requirements. The Inspire 2 is a versatile tool suitable for professionals and enthusiasts alike. Its compact design and dual-mode scanning make it an excellent choice for a wide range of 3D scanning applications.
