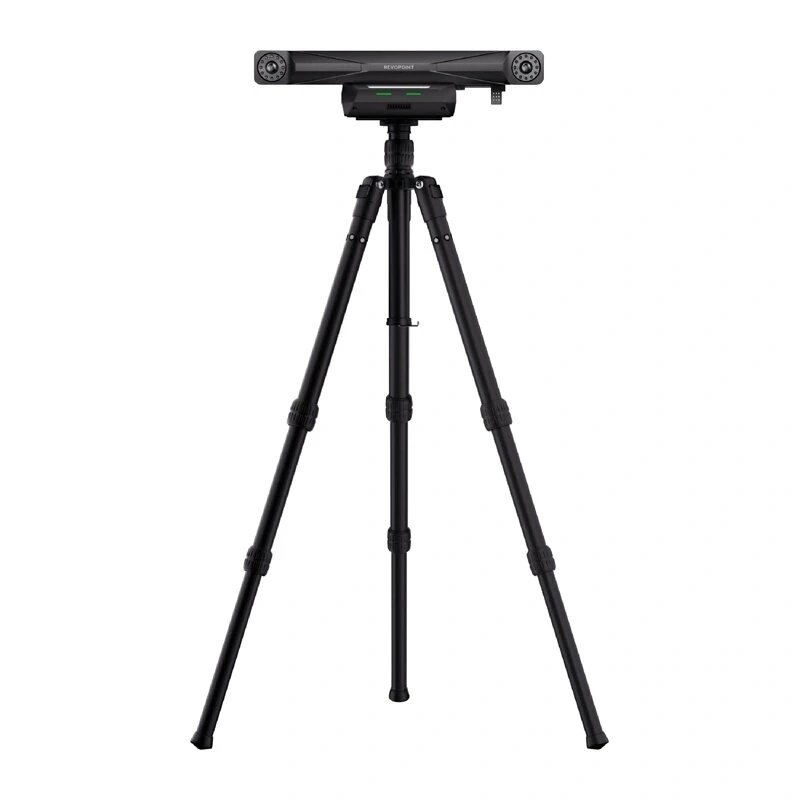

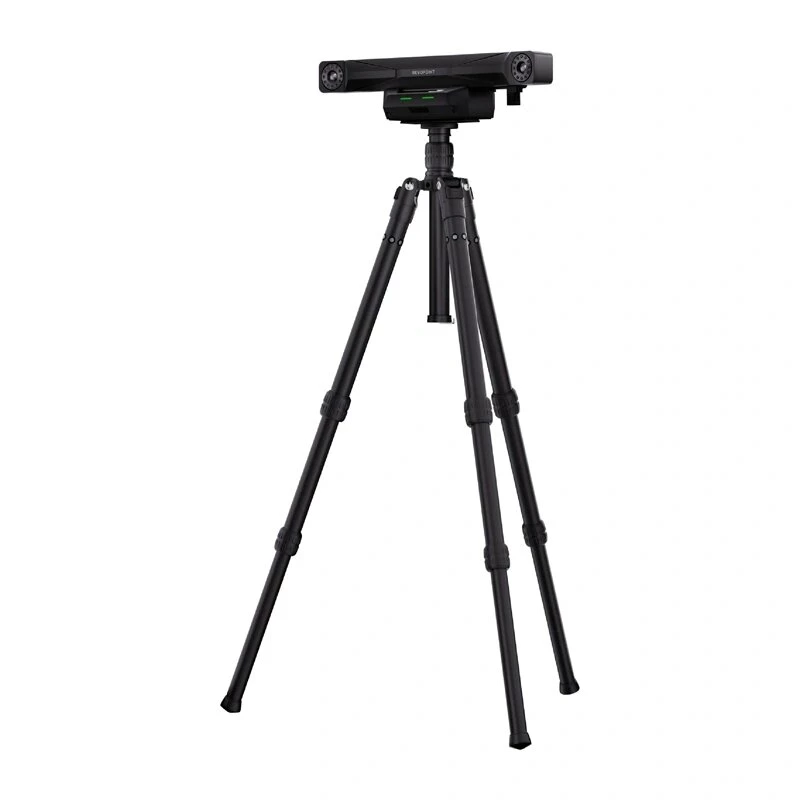

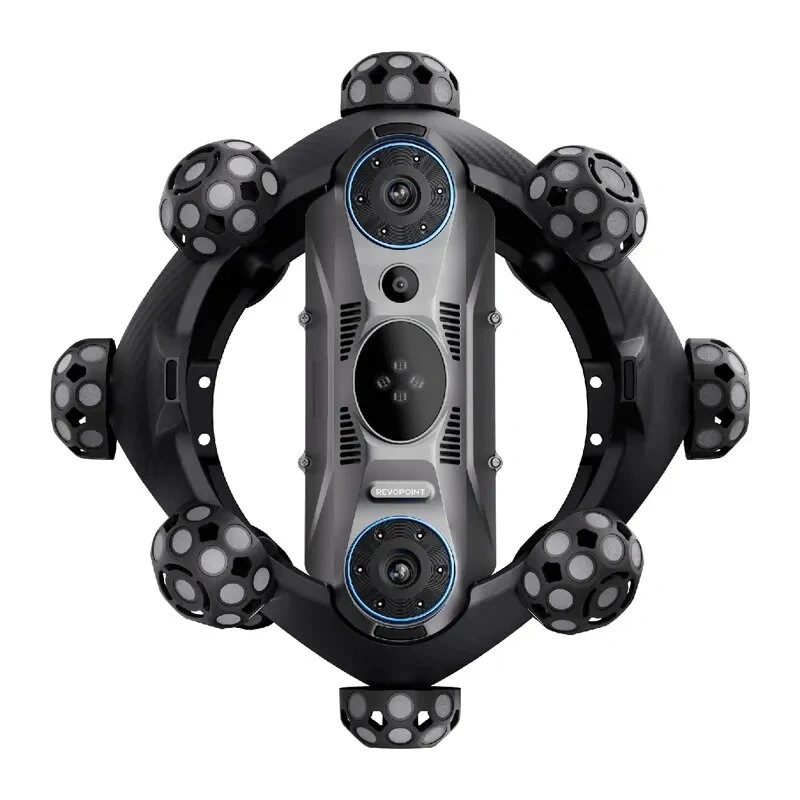

Revopoint Trackit SR CMM Scanner ottico 3D

The Revopoint Trackit SR CMM 3D Optical Scanner combines high scanning accuracy with wireless operation, advanced optical tracking, and three scanning modes. Weighing just 1 kg, it is easy to transport and suitable for scanning both small parts and large objects. The package includes Revo Measure and Revo Track software for streamlined measurements and data processing.

Key features

• Three scanning modes: long-range mode with 17 parallel laser lines, fine detail mode with 30 intersecting laser lines, and single laser line for deep holes and hard-to-reach areas
• Advanced optical tracking system eliminates the need for markers
• Wireless operation with support for wireless multi-position stations
• Volumetric accuracy: 0.02 + 0.04 mm × L (m)
• Thermal stabilization time: 2 minutes
• Full system setup in less than 20 minutes
• Operates outdoors under light intensities up to 100,000 lux
• Creates detailed texture maps and accurately reproduces colors
• Lightweight design: 1 kg

Specifications

• Brand: Revopoint
• Material: Polycarbonate
• Weight: 1 kg
• Volumetric accuracy: 0.02 + 0.04 mm × L (m)
• Thermal stabilization time: 2 minutes
• Setup time: less than 20 minutes
• Operating light intensity: up to 100,000 lux
• Software: Revo Measure and Revo Track
