Reyee RG-RAP1261 Wi-Fi 6 AX3000 access point wall-plate ultra-flat 2976 Mbps 2x2 MIMO PoE

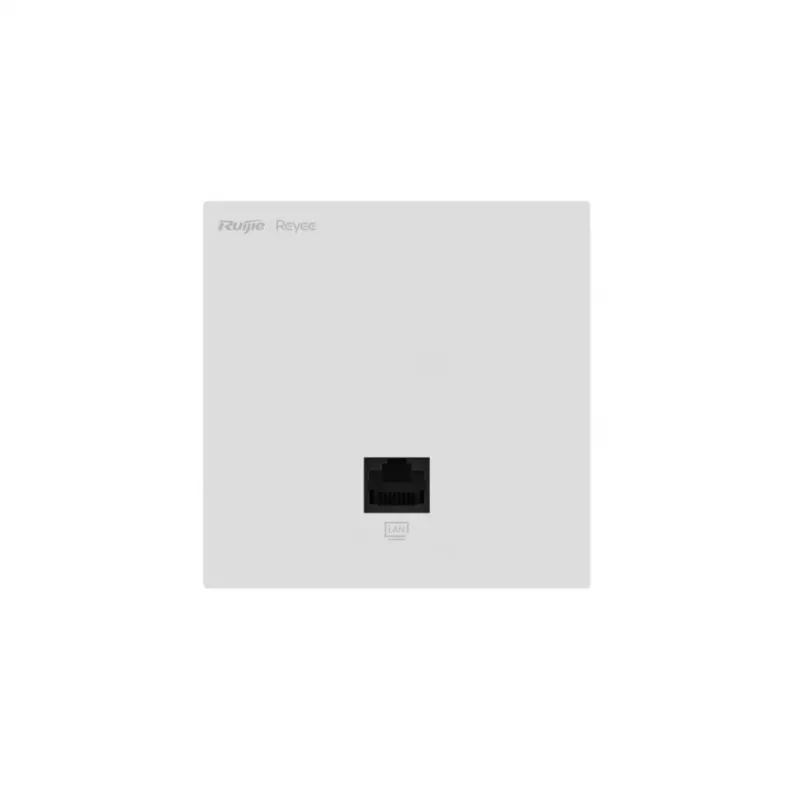

The Reyee RG-RAP1261 is a high-performance Wi-Fi 6 AX3000 wall-plate access point designed for seamless, ultra-fast wireless connectivity in hotels, offices, and multi-dwelling units. With a sleek, ultra-flat design that mounts directly onto a standard 86-type wall box, it delivers combined speeds of up to 2976 Mbps (574 Mbps on 2.4 GHz + 2402 Mbps on 5 GHz) and supports up to 100+ concurrent clients. Powered by 802.3af/at PoE, it also features a PoE output port to power an additional device, making it an ideal solution for space-constrained deployments.

Advantages

Experience true Wi-Fi 6 performance with OFDMA, MU-MIMO, and Beamforming for efficient multi-device handling. The integrated Reyee Mesh enables easy network expansion, while Ruijie Cloud App and Web UI provide simple management. WPA3 security ensures robust protection, and the wall-plate form factor saves space and blends into any environment.

Suitable for

• Hotel rooms and hospitality suites
• Office cubicles and meeting rooms
• Multi-dwelling units and apartments
• Retail stores and classrooms

Key specifications

• Wi-Fi Standard: Wi-Fi 6 (802.11ax)
• Max Speed: 2976 Mbps (AX3000)
• Frequency Bands: Dual-Band (2.4 GHz & 5 GHz)
• MIMO: 2x2 (2.4 GHz) + 2x2 (5 GHz)

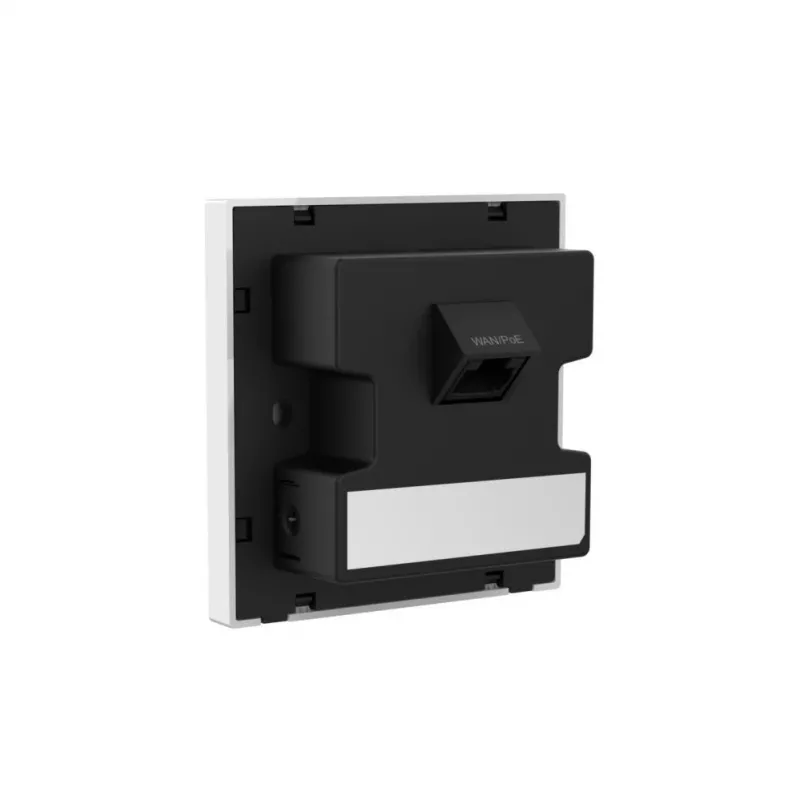

• Ports: 1x Gigabit Ethernet (PoE In), 3x Gigabit Ethernet (1x PoE Out, 2x Data)
• PoE Input: 802.3af/at
• PoE Output: 802.3af (on one port)
• Antenna: Internal Omnidirectional
• Mounting: Wall-Plate (86-type box)
• Management: Ruijie Cloud App, Web UI
• Security: WPA3, WPA2-PSK, WPA2-Enterprise, MAC Filtering
• Advanced Features: OFDMA, MU-MIMO, Beamforming, BSS Coloring, VLAN
• Power Consumption: <15W (with PoE out)

Recommendations

For optimal performance, pair with a Reyee PoE switch and use the Ruijie Cloud App for centralized management. Ideal for high-density environments requiring reliable, high-speed Wi-Fi 6 coverage.
