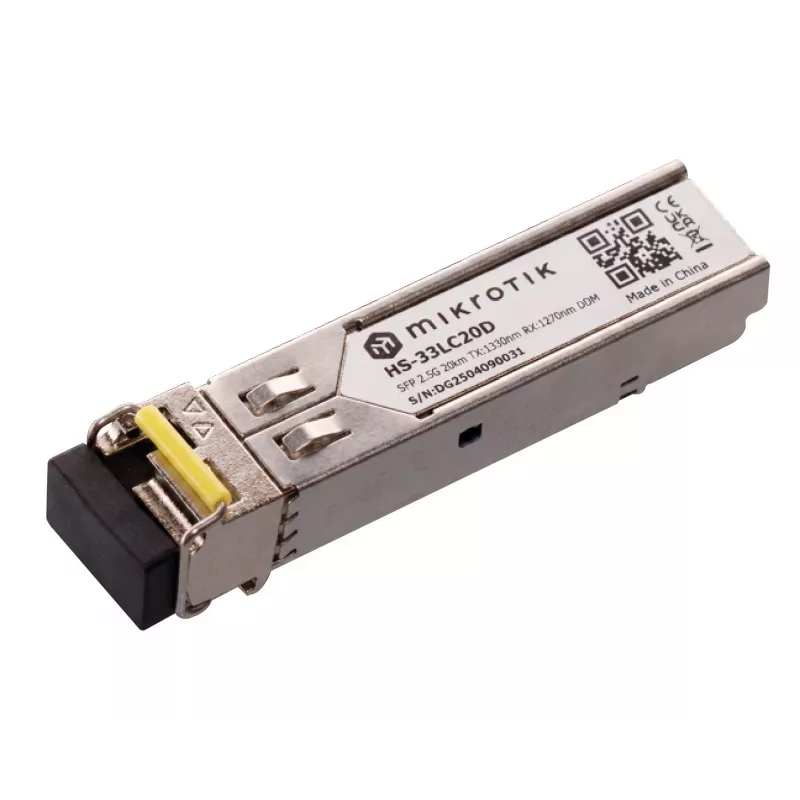

RICETRASMETTITORE DI RETE SFP/HS-2733LC20D MIKROTIK

Connecting distant network segments over single-mode fiber can be challenging without the right optical module. The MikroTik HS-2733LC20D SFP transceiver solves this by delivering reliable Gigabit Ethernet connectivity up to 20 kilometers, making it ideal for linking buildings, campuses, or remote equipment.

Who is it for

This transceiver is built for network administrators, system integrators, and IT professionals who need to extend their MikroTik or MSA-compliant network over long distances using single-mode fiber. It suits enterprise backbones, service provider links, and industrial applications where stability and performance are critical.

Main features

• 1000BASE-LX/LH compliant for Gigabit Ethernet over single-mode fiber
• 1310nm DFB laser and PIN photodiode for reliable 20km reach
• Hot-swappable SFP form factor for easy installation and replacement
• Digital Diagnostic Monitoring (DDM/DOM) for real-time monitoring of temperature, voltage, and optical power
• LC duplex connector for standard single-mode patch cables
• Low power consumption under 1W, reducing energy costs and heat
• Wide operating temperature range from 0°C to 70°C
• Compliant with IEEE 802.3z, SFP MSA, RoHS, CE, and FCC

Specifications

• Form Factor: SFP (Small Form-Factor Pluggable)
• Data Rate: 1.25 Gbps
• Wavelength: 1310 nm
• Max Distance: 20 km
• Fiber Type: Single-mode Fiber (SMF)
• Connector Type: LC Duplex
• DDM/DOM Support: Yes
• Interface: 1000BASE-LX/LH
• Transmitter Type: DFB Laser
• Receiver Type: PIN Photodiode
• Power Consumption: <1 W (Typical)
• Operating Temperature: 0 to 70°C
• Hot-Swappable: Yes
• Housing Material: Metal
• Compliance: IEEE 802.3z, SFP MSA, RoHS, CE, FCC
• Voltage: 3.3 V

Tips

Ensure your fiber infrastructure uses single-mode cables with LC connectors. For optimal performance, clean the fiber connectors before installation and avoid bending cables beyond their minimum bend radius. Use DDM monitoring to proactively detect link degradation and schedule maintenance before failures occur.
