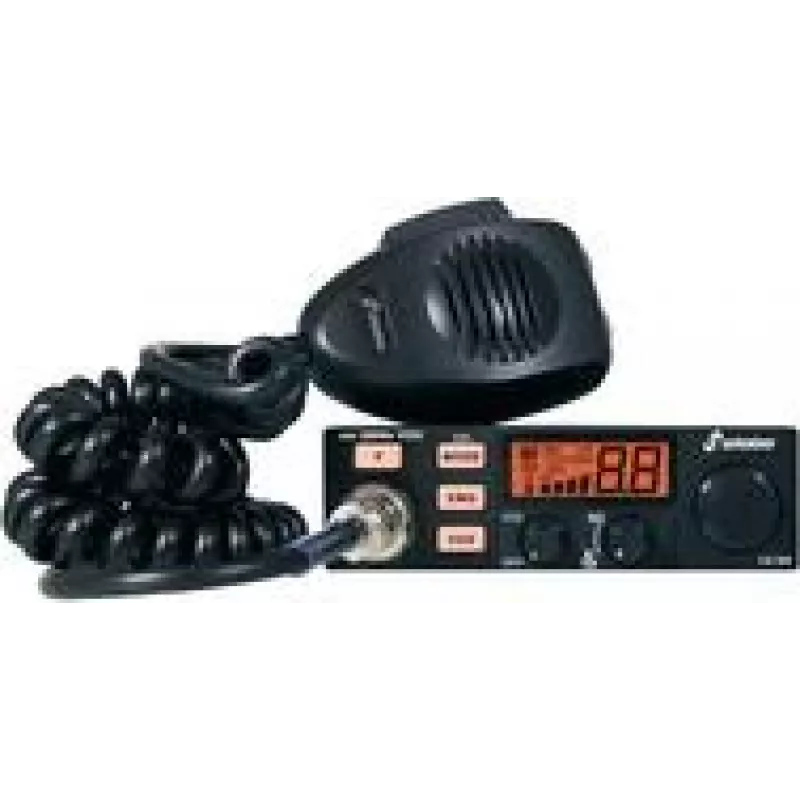

Ricetrasmettitore Stabo XM 3004e VOX — 40 canali, LCD, 12/24 V, nero

Stabo XM 3004e VOX is a compact two-way radio designed for vehicle or base installation, offering 40 channels and a clear LCD for channel, signal and power information. Powered from 12/24 V systems, the unit supports hands-free VOX operation and provides essential functions for reliable voice communication in transport, logistics, security and outdoor team environments. The 115 × 165 × 35 mm housing and 0.6 kg weight make it suitable for fixed mounting while conserving space.

Advantages

The radio combines an energy-efficient 24 V operation with automatic squelch control and six frequency bands to ensure stable reception in varied conditions. A multifunction LCD with seven selectable backlight colors shows S-meter, power meter, status and channel for quick visual checks. Additional features such as Super VOX (voice-operated transmission), ANL, TOT (time-out timer), emergency key and selectable AM/FM mode add operational flexibility for professional use.

Suitable for

Key specifications

How to use

Install the Stabo XM 3004e VOX in a vehicle or base using appropriate mounting brackets and connect to a 12/24 V DC power source following the vehicle manufacturer’s and radio installation instructions. Use the multifunction LCD and channel keys to select the required channel, and enable Super VOX for hands-free operation if desired. Connect an external loudspeaker or VOX microphone via the dedicated jacks when improved audio or alternate microphone placement is needed. Configure features such as ANL, TOT and squelch control through the front panel or microphone controls according to operational needs.

Recommendations

For reliable operation, ensure secure power connections and appropriate antenna installation. Use the emergency key only in actual emergency situations and keep TOT and squelch settings adjusted to local radio environment and regulatory requirements.
