Ripetitore AV DeLOCK 11474

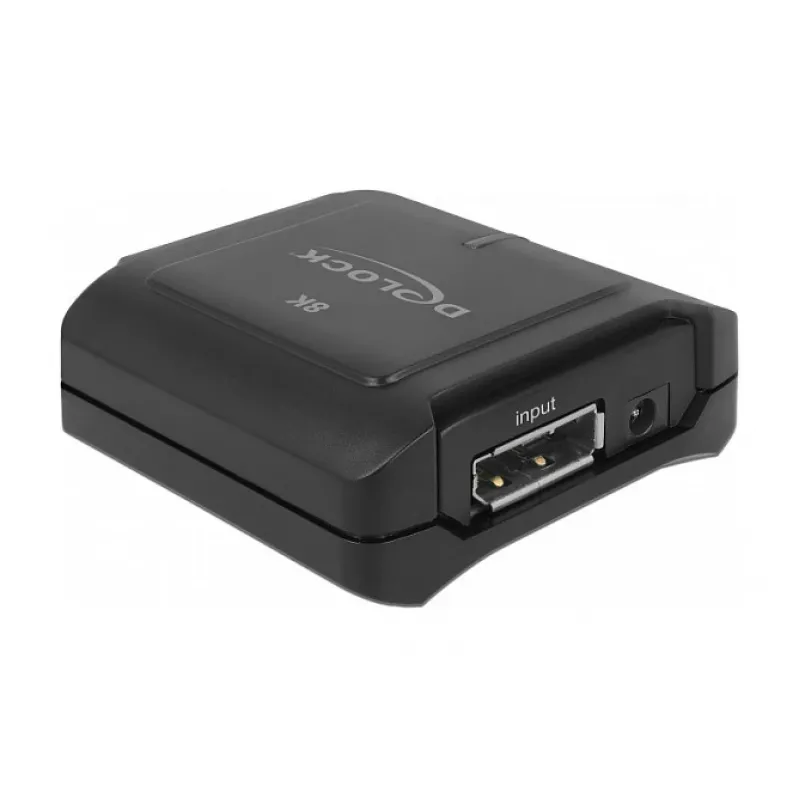

The DeLOCK 11474 AV repeater is a DisplayPort signal extender designed to amplify and maintain video quality for connections up to 12 m. It supports resolutions up to 7680 x 4320 and accepts an input cable of up to 2 m from a PC or laptop while allowing an output cable of up to 10 m to a display or TV. The device uses wired power with an AC input of 100–240 V, 50–60 Hz and an operating voltage of 5 V, and features a compact housing (54 mm × 55 mm × 20 mm) for simple integration into AV setups.

Advantages

The repeater preserves high-resolution DisplayPort signals up to 7680 x 4320 and extends the effective cable length to a total of 12 m without active signal loss. Its compact size allows discreet placement near devices, and the wired power design ensures stable operation across standard mains voltages. The product is suitable for extending video between a computer and a monitor or TV when longer passive DisplayPort cables alone would degrade the signal.

Suitable for

• Extending a DisplayPort connection from a PC or laptop to a monitor
• Connecting a computer to a TV when longer runs are required
• Situations where the total cable length needs to reach up to 12 m while preserving high resolution

Key specifications

• Type: AV repeater (DisplayPort)
• Maximum resolution: 7680 x 4320 pixels
• Maximum transfer distance: 12 m (input cable up to 2 m, output cable up to 10 m)

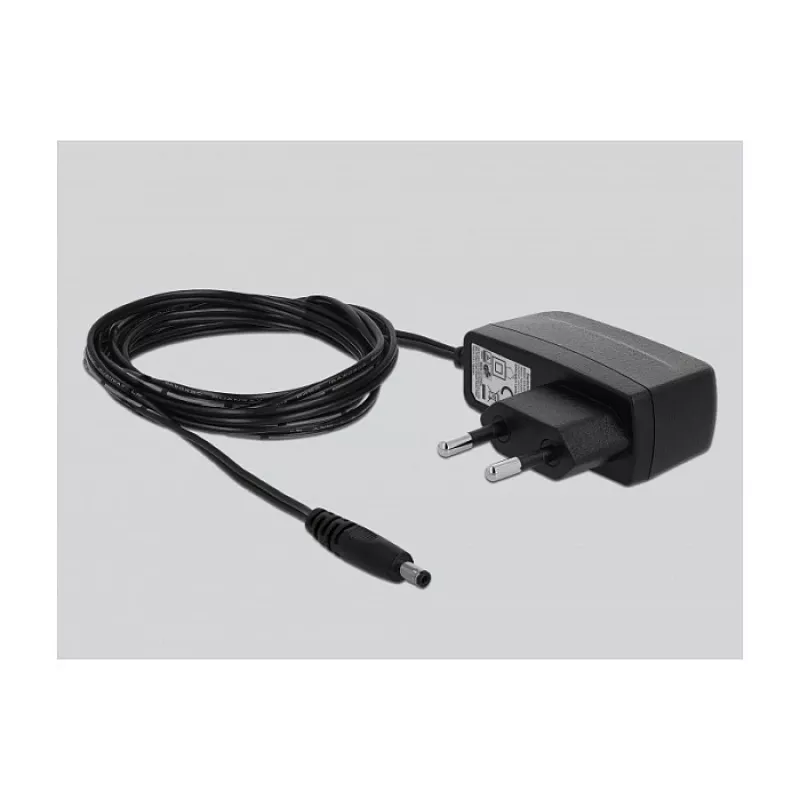

• Power input: AC 100–240 V, 50–60 Hz; operating voltage 5 V
• Dimensions: 54 mm (W) × 55 mm (D) × 20 mm (H)
• Brand: DELOCK, MPN: 11474, EAN: 4043619114740

How to use

Connect an appropriate DisplayPort cable (maximum 2 m) from the PC or laptop to the input port of the DeLOCK 11474. Attach a DisplayPort cable (maximum 10 m) from the repeater's output port to the display or TV. Connect the repeater to mains power according to the supplied power cable and ensure the device is powered on. Once connected, the repeater amplifies the signal to support up to 12 m total transfer distance while maintaining the selected video resolution.

Recommendations

For best results use high-quality DisplayPort cables rated for the intended resolution and keep cable lengths within the specified limits (input ≤ 2 m, output ≤ 10 m). Avoid routing cables near strong electromagnetic sources and ensure proper ventilation around the repeater to prevent overheating.
