Trasmettitore e ricevitore AV DeLOCK 65832 set extender HDMI 4K 30Hz

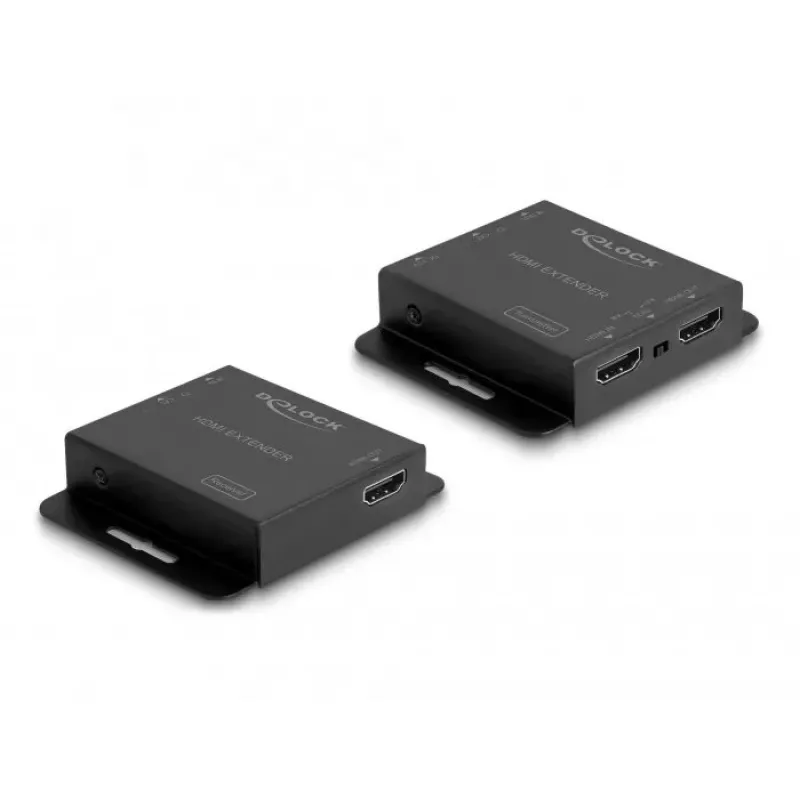

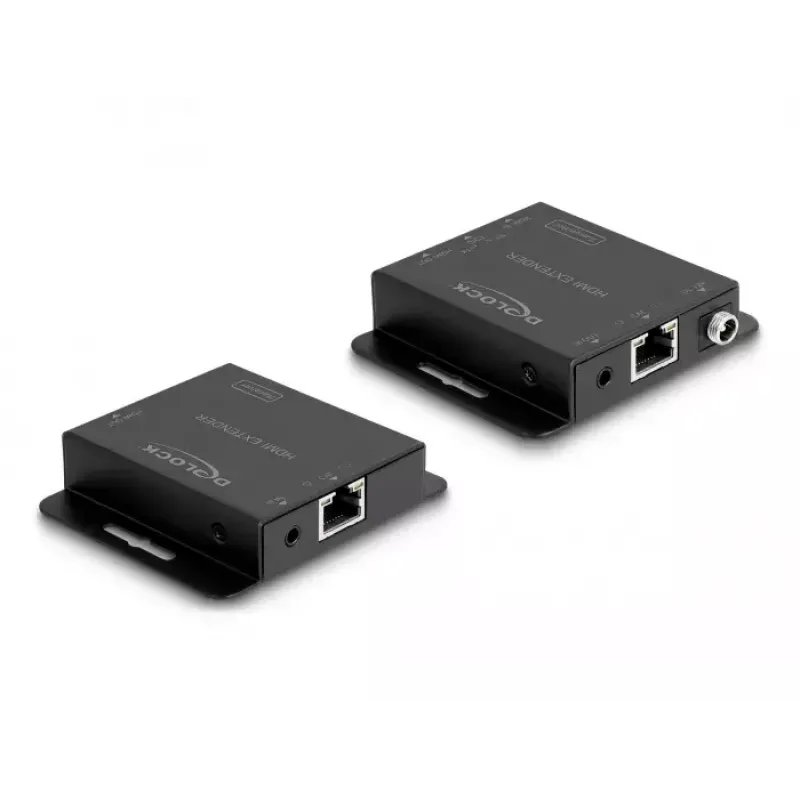

This Delock AV transmitter and receiver set transmits high-resolution HDMI video and audio plus an IR control signal over a single network (Cat.5e/6) cable. It supports up to 3840 x 2160 (4K) at 30 Hz for distances up to 40 m and up to 1080p for distances up to 70 m. The kit is suitable for installations in conference rooms, tele-education environments and on large displays.

Advantages

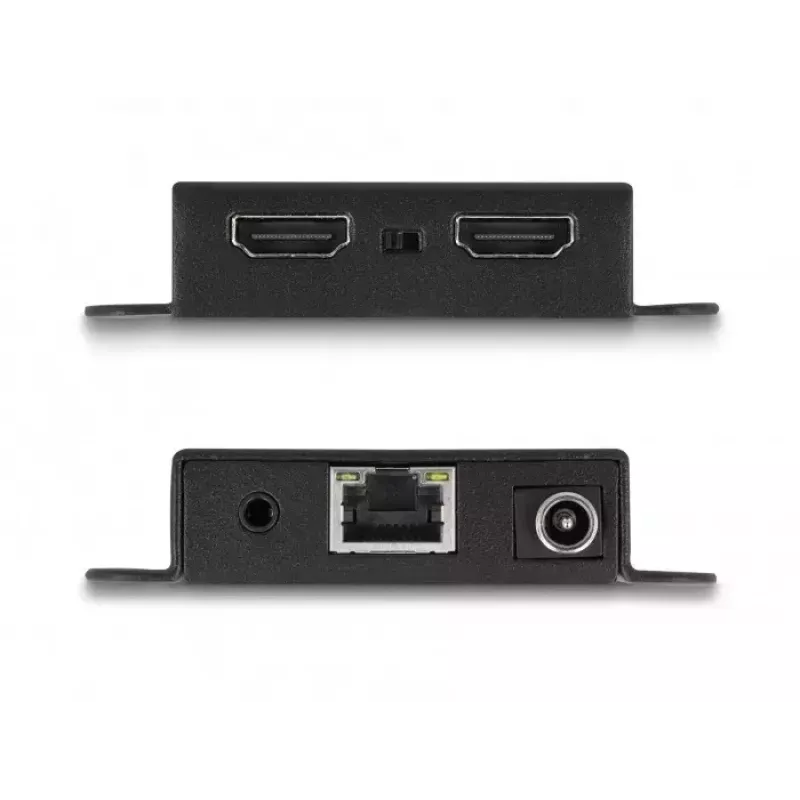

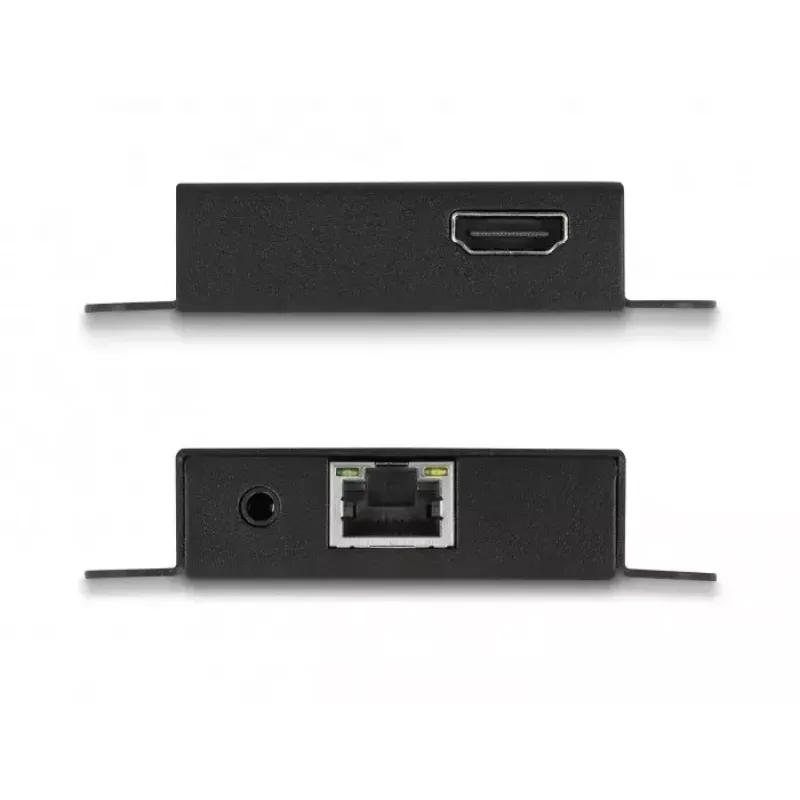

The transmitter includes an HDMI loop output for cascading the signal to another extender or to a local monitor. The system supports Power over Cable (PoC), so only the transmitter needs an external power supply while the receiver is powered via the network cable. A screwable DC power connector on the transmitter provides a secure, vibration-resistant connection, suitable for professional installations. The units are compact and come in black finish.

Suitable for

• Conference rooms and meeting spaces
• Tele-education and distance learning setups
• Digital signage and large-screen displays
• AV installations requiring IR remote control extension

Key specifications

• Model: DeLOCK 65832
• Maximum resolution: 3840 x 2160 (4K) @ 30 Hz
• Transmission distances: up to 40 m at 4K 30 Hz; up to 70 m at 1080p
• Signal: HDMI video/audio + IR control over single network cable
• Power: transmitter DC input (screwable connector); receiver powered via PoC
• AC input voltage (power adapter): 100–240 V
• Colour: Black

How to use

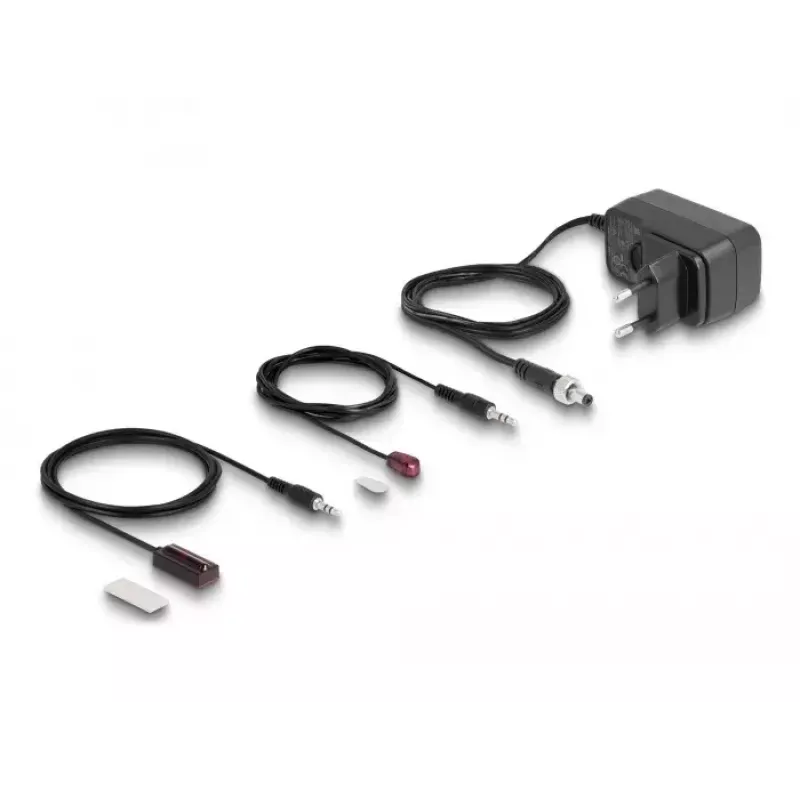

Connect the transmitter to the HDMI source and, if required, use the HDMI loop output to feed a local monitor or cascade to another extender. Link transmitter and receiver with a suitable Cat.5e/6 network cable to carry HDMI and IR signals. Connect the supplied DC power adapter to the transmitter's screwable DC input; the receiver will receive power through the network cable via PoC. Attach IR emitters/receivers as needed for remote control passthrough.

Recommendations

Use high-quality Cat.6 cables for best signal stability and to reach maximum stated distances. For professional installations secure the screwable DC connector and verify PoC compatibility of installed infrastructure before deployment.
