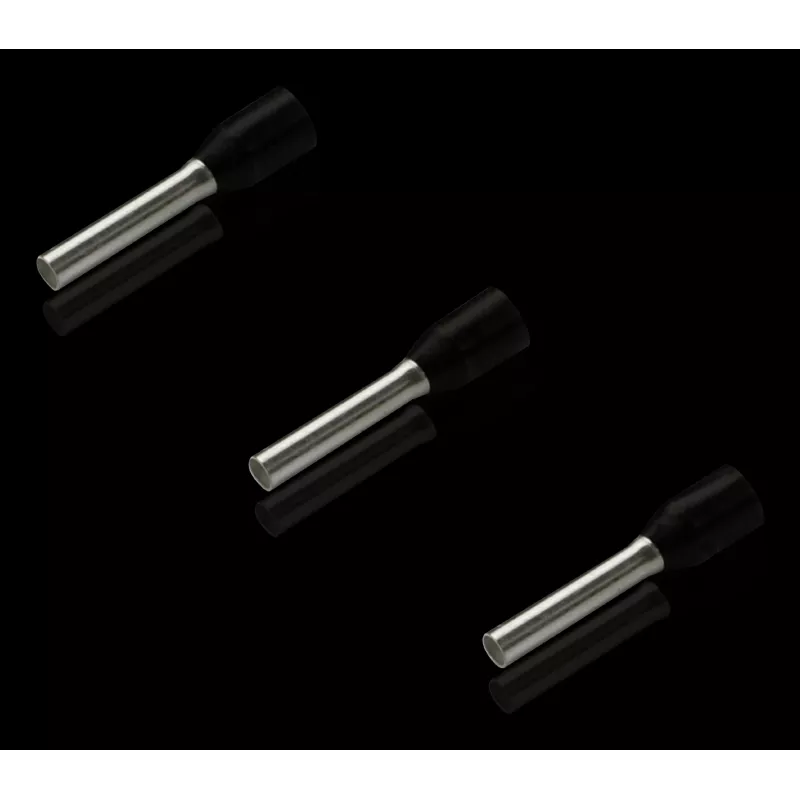

Rittal 4051647 Terminale a crimpare isolato 1,5 mm² nero 1000 pezzi

For fine-stranded conductors, this Rittal wire end ferrule in black provides a reliable, halogen-free connection with a funnel-shaped polypropylene insulation. The tin-plated electrolytic copper pin ensures consistent contact, and the 1000-piece bag keeps your workshop stocked for high-volume panel building.

Highlights

• Conductor cross-section: 1.5 mm²
• Colour: Black
• Pack of 1000 pieces
• Halogen-free insulation
• Funnel-shaped entry for easy insertion

In daily use

Strip the conductor to 10 mm, insert the fine-stranded wire into the ferrule, and crimp. The tin-plated copper pin is 10 mm long with a diameter of 1.8 mm, while the overall length is 17 mm. The insulation sleeve has a diameter of 3.5 mm and is rated for temperatures from -40 °C to +105 °C. The ferrule complies with DIN 46228 Part 4 and carries a UL voltage rating of 300 V.

Full specifications

• Ferrule material: Electrolytic copper, tin-plated
• Insulation material: Polypropylene (PP)
• Insulation type: Funnel-shaped
• Ferrule pin length: 10 mm
• Overall length: 17 mm
• Ferrule pin diameter: 1.8 mm
• Insulation sleeve diameter: 3.5 mm
• Recommended stripping length: 10 mm
• Temperature range: -40 °C to +105 °C
• Voltage rating (UL): 300 V
• Standard compliance: DIN 46228 Part 4
• Flammability rating (insulation): UL 94 V-0
• Halogen-free: Yes
• RoHS compliant: Yes
• Application: For fine-stranded conductors
• Packaging unit: Bag

Final note

Rittal 4051647 offers a dependable crimping solution for control cabinet wiring, with a black insulation colour for easy identification.
