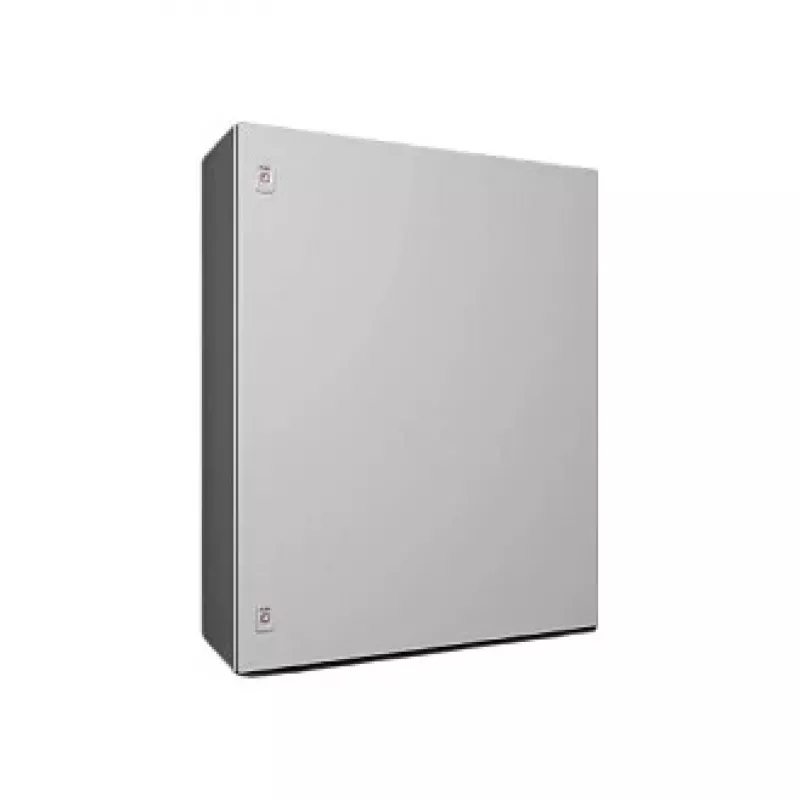

Rittal AX armadio compatto 800x1000x300mm IP66 lamiera d'acciaio, grigio chiaro

In an automotive assembly plant, a control engineer needs a robust housing for PLCs and motor drives that can withstand washdowns and dust. The Rittal AX compact enclosure meets this demand with a single-door sheet steel cabinet measuring 800 mm wide, 1000 mm high, and 300 mm deep. Its IP66 rating ensures complete protection against dust and powerful water jets, while the IK10 impact resistance guards against mechanical stress. The light grey RAL 7035 powder-coated finish resists corrosion, and the zinc-plated mounting plate and gland plate simplify component installation and cable entry. The door opens 130° with a 3 mm double-bit lock, and the enclosure meets UL, cUL, TÜV, and VDE standards for global use.

Key specifications

• Series: AX compact enclosure, single door
• Dimensions (WxHxD): 800 x 1000 x 300 mm
• Material: sheet steel, dip-primed, powder-coated outside, textured paint
• Color: RAL 7035 light grey
• Protection: IP66, IK10 impact resistance
• Mounting plate and gland plate included, zinc-plated
• Lock: 3 mm double-bit
• Door opening angle: 130°
• Rated voltage: up to 1000 V AC/DC
• Operating temperature: -25 °C to +60 °C
• Certifications: UL, cUL, TÜV, Germanischer Lloyd, EAC, VDE

Why choose it

The AX enclosure combines ruggedness with flexibility. Its IP66 rating ensures reliable operation in harsh industrial environments, while the IK10 impact resistance protects against mechanical stress. The powder-coated finish and zinc-plated interior components provide long-term corrosion resistance.

Ideal use cases

• Industrial control panels
• Automation systems
• Power distribution
• Washdown environments

Good to know

This enclosure is part of the Rittal AX series, known for its modular design and ease of installation. The included mounting plate and gland plate are zinc-plated for durability. The door opens 130° for easy access, and the 3 mm double-bit lock provides secure closure. The enclosure is suitable for use with voltages up to 1000 V AC/DC and operates in temperatures from -25 °C to +60 °C.
