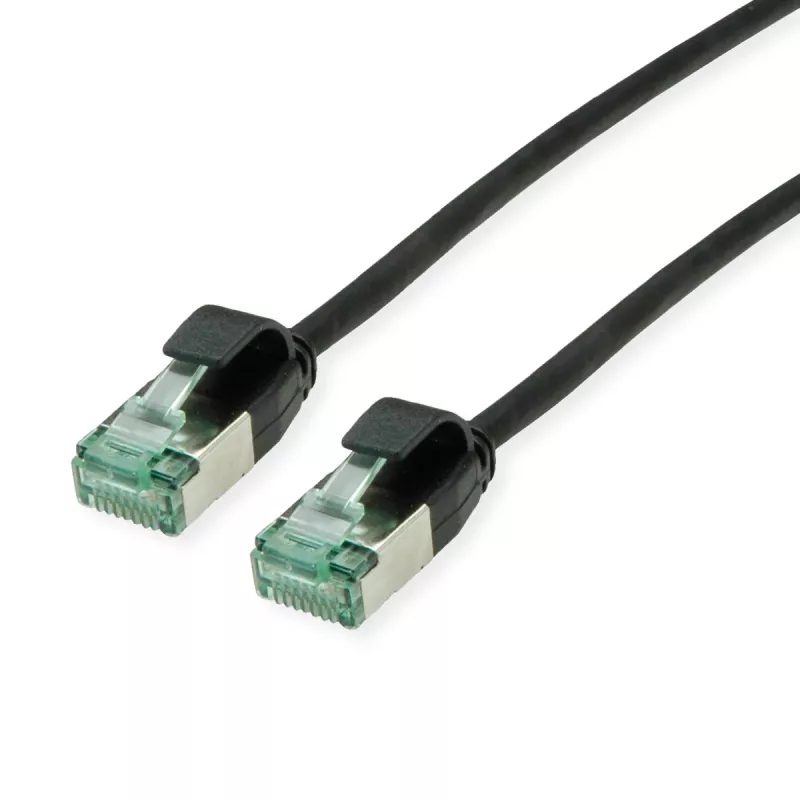

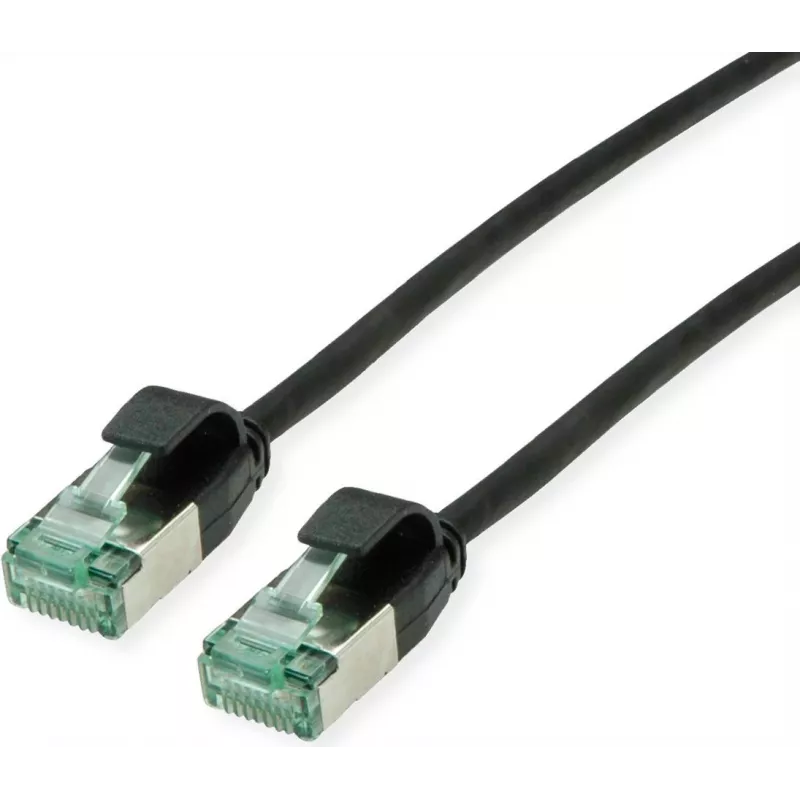

ROLINE RM cavo patch U/FTP Cat.6A/Class EA SLIM nero 1m - FTP (21.45.3353)

Network technicians and data center operators use this slim Cat.6A patch cable for high-density patching in racks and cabinets. Its reduced diameter eases cable management in crowded spaces while maintaining 10 Gigabit Ethernet performance.

Key specifications

• Category: Cat.6A / Class EA
• Shielding: U/FTP (F/UTP) – overall foil shield
• Length: 1.0 m
• Colour: Black
• Connector: RJ45 male to RJ45 male, gold-plated contacts
• Conductor: Copper, AWG 28/7 stranded
• Jacket: LSZH (Low Smoke Zero Halogen)
• Bandwidth: Up to 500 MHz
• Data rate: 10 Gigabit Ethernet (10GBASE-T)
• Wiring: 1:1 according to EIA/TIA 568B
• Boot: Molded, snagless with strain relief
• Cable diameter: Approx. 4.2 mm
• Design: Slim Line

Why choose it

The slim profile reduces cable bulk in dense installations, improving airflow and simplifying moves, adds, and changes. LSZH jacket material limits smoke and toxic fumes in case of fire, making it suitable for public buildings and enclosed spaces.

Ideal use cases

• Data center patching between switches, servers, and patch panels
• High-density office network connections
• 10GBASE-T links in server rooms

Good to know

This cable meets ISO/IEC 11801, EN 50173, and EIA/TIA 568 standards. The stranded copper conductors provide flexibility for frequent re-patching.
