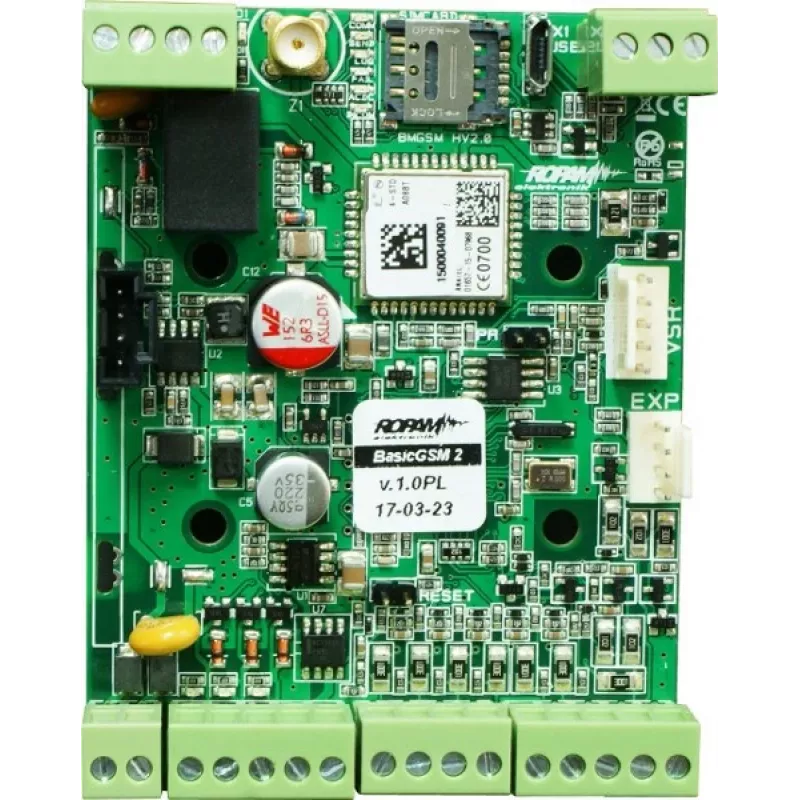

ROPAM BASICGSM 2 modulo GSM/GPRS SMA per sistemi di allarme

The ROPAM BASICGSM 2 SMA Module is a high-performance GSM/GPRS communication module designed for integration with ROPAM alarm control panels. It enables remote control, monitoring, and event reporting via SMS and GPRS, ensuring reliable connectivity for security systems.

Advantages

Dual SIM slots for network redundancy, quad-band GSM support for global compatibility, and encrypted GPRS communication for secure data transmission. Easy plug-in installation and remote firmware updates minimize maintenance.

Suitable for

• ROPAM NEO and OPTIMA series alarm control panels
• Remote alarm system management via SMS commands
• GPRS-based monitoring with ROPAMBridge and RopamNET services

Key specifications

• Communication Technology: GSM/GPRS
• Antenna Connectors: 2 x SMA
• SIM Card Support: Dual SIM (2 slots)
• GSM Frequency Bands: Quad-band (850/900/1800/1900 MHz)
• GPRS Class: Class 10
• Operating Modes: SMS, CLIP, GPRS, Voice (panel dependent)
• Current Consumption: ~30 mA idle, ~200 mA max during transmission
• Operating Temperature: -10°C to +55°C
• Mounting Type: Plug-in module

Recommendations

Ensure compatibility with your ROPAM control panel before purchase. For optimal performance, use high-quality SMA antennas and maintain a stable power supply from the host panel.
