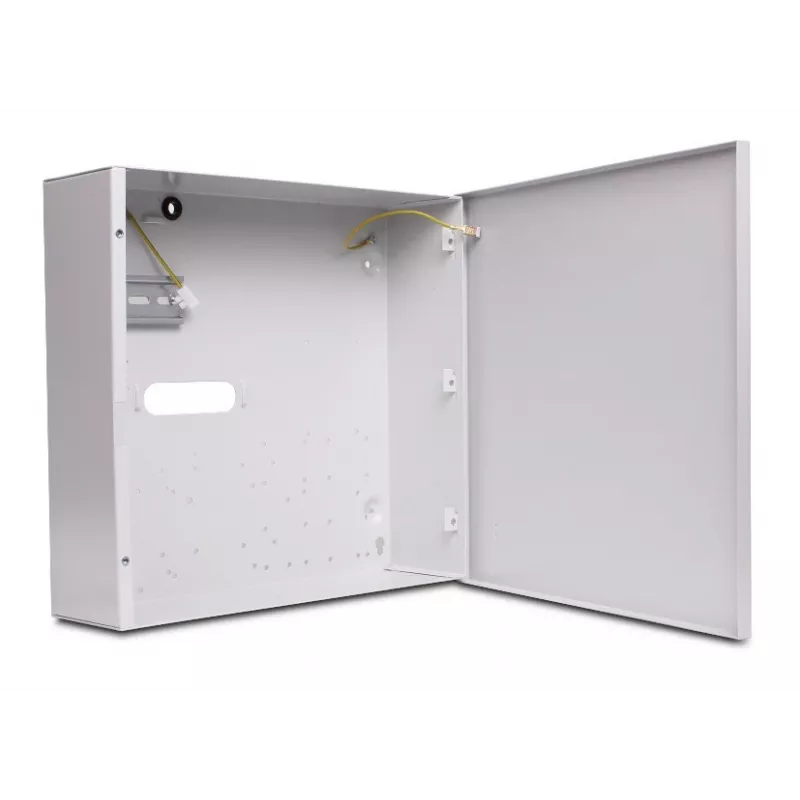

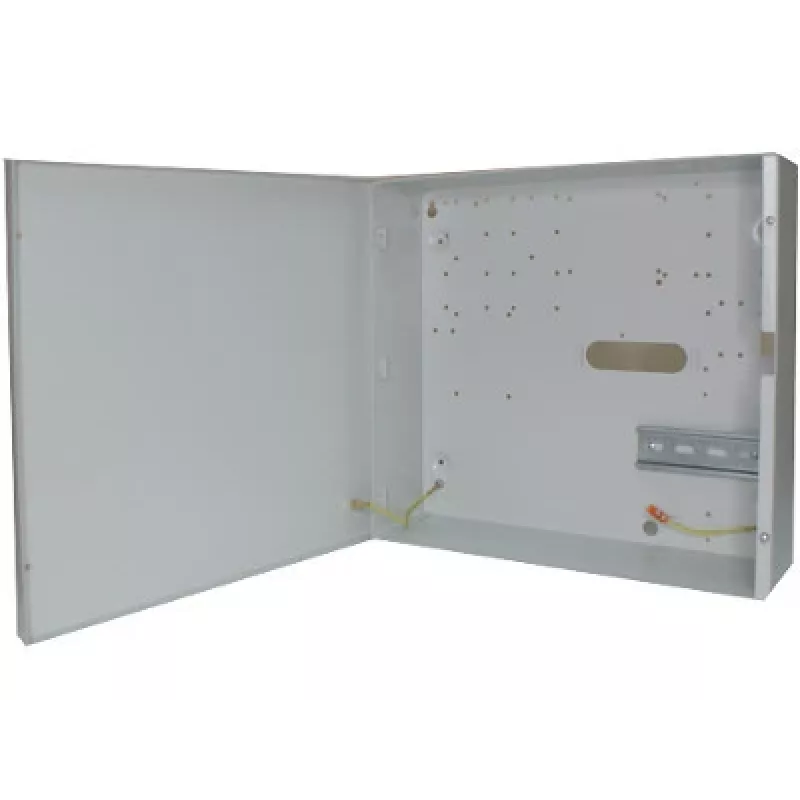

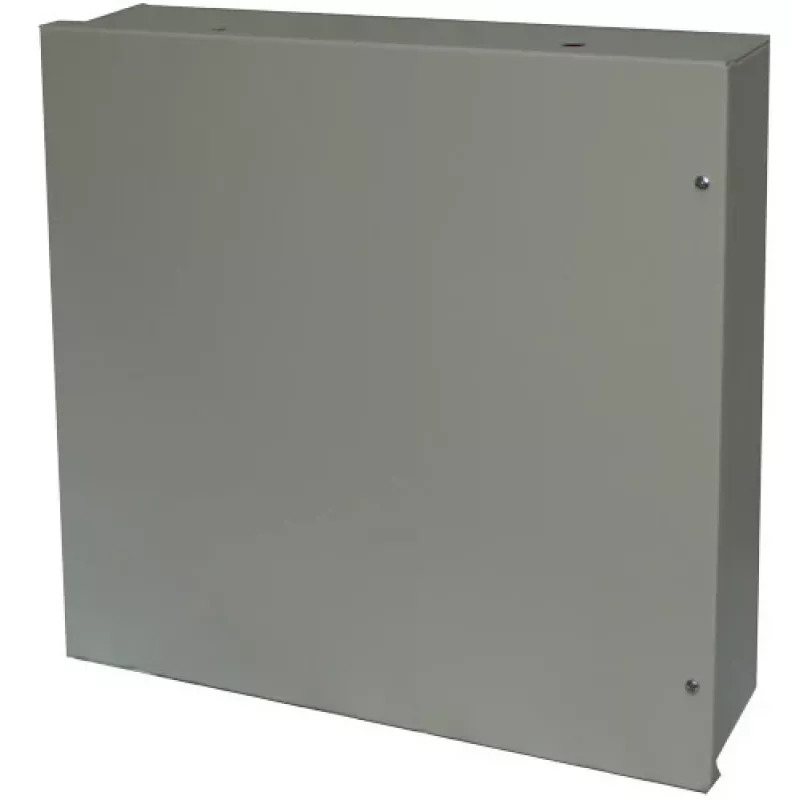

ROPAM O-R4D contenitore metallico per moduli di sicurezza, bianco (RAL 9003), senza trasformatore

The ROPAM O-R4D is a robust metal enclosure designed to house ROPAM security and automation modules such as NeoGSM-IP-64, OptimaGSM, MultiGSM, and BasicGSM 2. Manufactured from powder-coated steel sheet in white (RAL 9003), this wall-mountable enclosure provides a secure and professional housing solution for alarm systems, access control, and building automation applications.

Advantages

Built with high-quality powder-coated steel, the O-R4D offers excellent durability and protection for internal components. The integrated tamper microswitch ensures lid opening detection, enhancing security. Multiple knock-out cable entries facilitate easy cable management, while dedicated standoffs and mounting points allow straightforward installation of ROPAM PCBs. The enclosure also accommodates a 12V 7Ah backup battery, ensuring uninterrupted operation.

Suitable for

• Alarm systems and security installations
• Access control systems
• Building automation projects
• Housing ROPAM GSM and IP communication modules

Key specifications

• Enclosure Type: Metal Enclosure
• Material: Powder-coated steel sheet
• Colour: White (RAL 9003)
• Transformer Included: No
• Compatibility: ROPAM security and automation modules (e.g., NeoGSM-IP-64, OptimaGSM, MultiGSM, BasicGSM 2)
• Mounting Type: Wall-mount / Surface-mount
• Tamper Protection: Yes (microswitch for lid opening detection)
• Battery Accommodation: Yes, space for 12V 7Ah battery
• Cable Management: Multiple knock-out cable entries
• Ventilation: Integrated ventilation openings
• Lock Type: Key lock
• IP Rating: IP20
• Application: Alarm systems, access control, building automation
• Internal Mounting: Dedicated standoffs/mounting points for ROPAM PCBs
• Operating Temperature: -10°C to +55°C
• Relative Humidity: 10% to 90% (non-condensing)

Recommendations

For a complete setup, pair this enclosure with a compatible ROPAM module and a suitable power supply. Ensure proper cable management and secure mounting to maintain system integrity.
