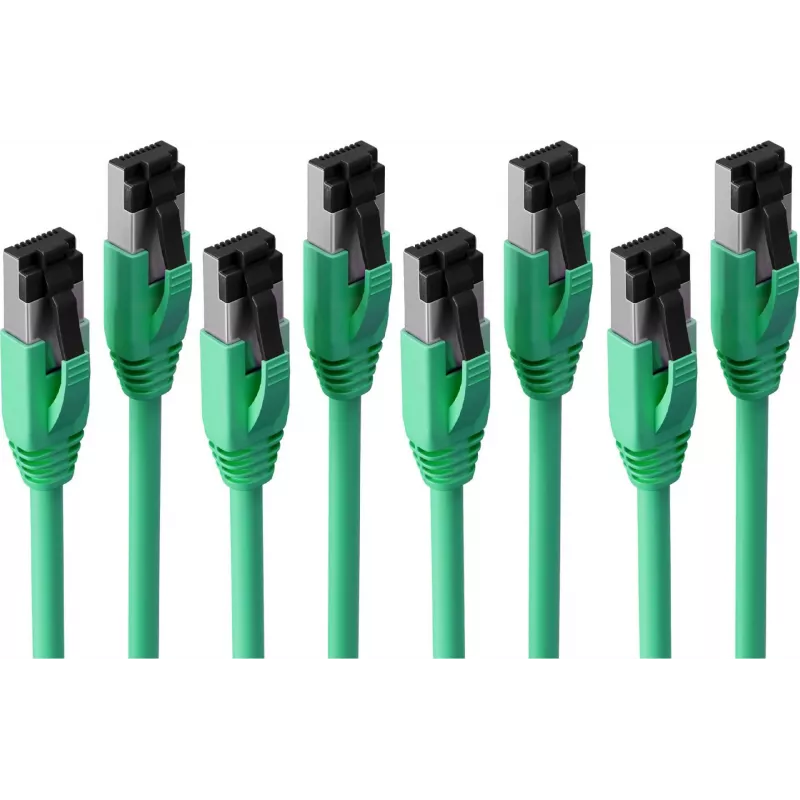

S CONN Maximum Connectivity Basic-S Cat. 8.1 F/FTP PIMF LSZH cavo patch, verde, 5m, confezione da 4 SC08-41053-4

High-speed networks in data centers and enterprise environments demand cabling that can handle 40 Gigabit Ethernet without interference or signal loss. This Cat. 8.1 patch cable delivers exactly that, with F/FTP shielding and PIMF construction to protect data integrity over its 5-meter length. The green LSZH jacket adds safety in case of fire, making it suitable for installations where low smoke and zero halogen are required.

Who is it for

Network administrators, data center technicians, and IT professionals who need reliable, high-performance cabling for 40GBASE-T connections. The 4-pack is convenient for multiple runs or spares.

Main features

• Cat. 8.1 (Class I) performance up to 2000 MHz bandwidth
• Supports data rates up to 40 Gbit/s
• F/FTP shielding with PIMF (pairs in metal foil) for excellent noise immunity
• LSZH jacket: low smoke, zero halogen, flame retardant
• Gold-plated RJ45 connectors for reliable contact
• Stranded copper conductors (AWG 26/7) for flexibility
• Backward compatible with Cat. 6a, Cat. 6, Cat. 5e, Cat. 5
• Pack of 4 cables, each 5 meters long

Specifications

• Cable type: Patch cable
• Category: Cat. 8.1 (Class I)
• Shielding: F/FTP (foiled/foiled twisted pair), PIMF
• Jacket material: LSZH (low smoke zero halogen)
• Colour: Green
• Length: 5.0 m
• Connector type: RJ45 male to RJ45 male
• Data transfer rate: up to 40 Gbit/s (40GBASE-T)
• Bandwidth: up to 2000 MHz
• Conductor material: Copper
• Conductor gauge: AWG 26/7 (stranded)
• Connector plating: Gold-plated contacts
• Halogen-free: Yes
• Flame retardant: Yes
• Backward compatibility: Cat. 6a, Cat. 6, Cat. 5e, Cat. 5
• Application: Ethernet, data centers, PoE, PoE+
• Packaging unit: 4 cables
• Standard compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568

Tips

For best performance, avoid bending the cable sharply near the connectors. Use cable management to maintain the minimum bend radius and preserve signal integrity.
