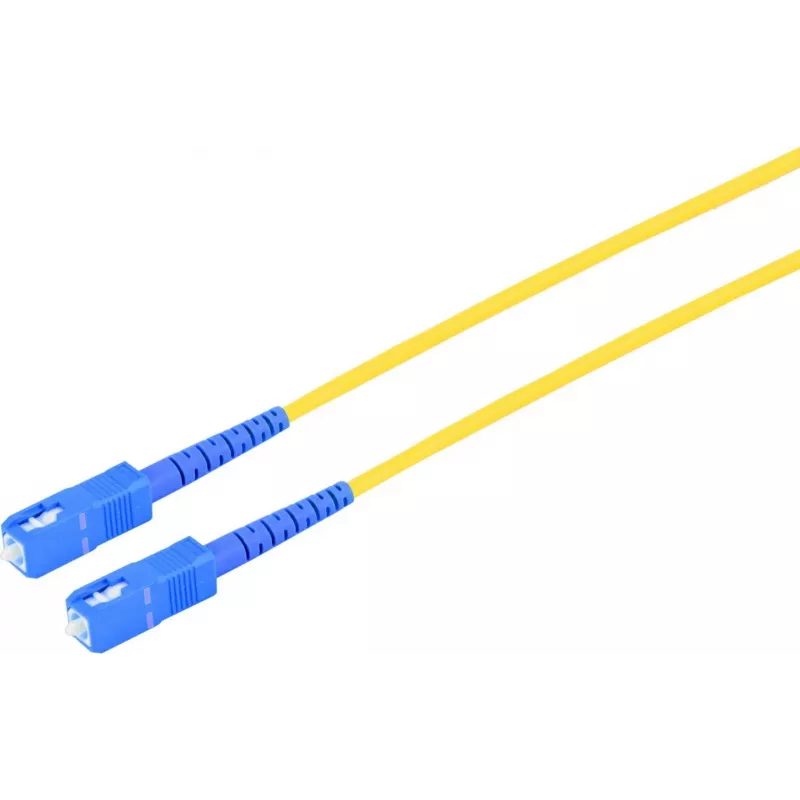

S CONN Maximum Connectivity cavo patch in fibra ottica SC/SC UPC OS2 single-mode, 9/125µm, giallo, 7,5m 07-106062

Single-mode fibre patch cable with SC/UPC connectors on both ends, delivering low-loss optical transmission for high-speed data networks. The OS2 fibre supports long-distance links up to 10 km at 1310 nm and 40 km at 1550 nm, making it suitable for telecom, FTTx, and data centre backbones.

Advantages

OS2 single-mode fibre with 9 µm core and 125 µm cladding ensures minimal attenuation and high return loss. UPC polished connectors reduce back reflections, improving signal integrity. Yellow LSZH jacket provides flame retardancy and low smoke emission for indoor installations. Simplex construction offers flexibility for single-fibre connections.

Suitable for

• 1G/10G/40G/100G Ethernet links
• Fibre Channel and InfiniBand interconnects
• Telecommunications and FTTx deployments
• Data centre patching and equipment connections

Key specifications

• Fibre type: OS2 single-mode (ITU-T G.652.D)
• Core/cladding: 9/125 µm
• Connectors: SC/UPC to SC/UPC
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 50 dB
• Attenuation: ≤ 0.35 dB/km @ 1310 nm, ≤ 0.25 dB/km @ 1550 nm
• Bend radius: 30 mm
• Operating temperature: -20°C to 70°C

Recommendations

Verify connector cleanliness before mating to avoid contamination damage. Use bend radius protection when routing through tight spaces. For outdoor or harsh environments, select an armoured or outdoor-rated cable.
