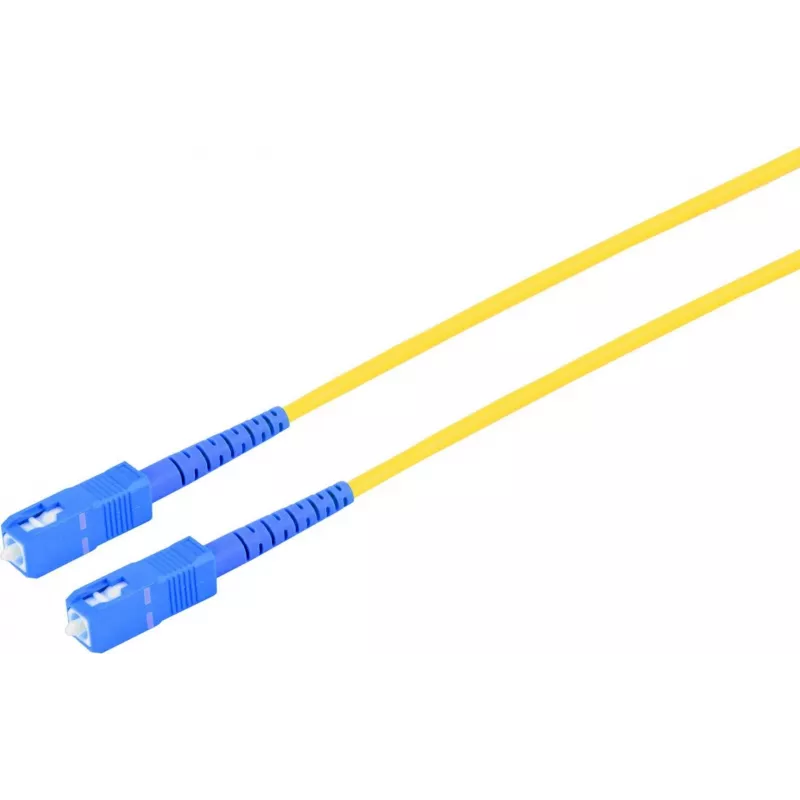

S CONN MAXIMUM CONNECTIVITY cavo patch in fibra ottica SC/SC UPC OS2 singlemode, 9/125µm, giallo, 10m 07-106072

Fibre optic patch cable with SC/UPC connectors on both ends, designed for reliable single-mode signal transmission in data centre and LAN environments. Its OS2 fibre supports 10GbE, 40GbE, and 100GbE applications, making it suitable for high-speed backbone links.

Advantages

The OS2 single-mode fibre offers low insertion loss (<0.3 dB) and high return loss (>50 dB), ensuring stable performance over long distances. The yellow LSZH jacket provides durability and safety in indoor installations.

Suitable for

• Data centre interconnects
• Enterprise LAN backbones
• Telecommunications rooms

Key specifications

• Fibre type: OS2 single-mode, 9/125 µm
• Connectors: SC/UPC to SC/UPC
• Length: 10 m
• Jacket colour: yellow
• Insertion loss: <0.3 dB
• Return loss: >50 dB
• Operating wavelengths: 1310 nm, 1550 nm

Recommendations

For best results, pair with OS2-compatible transceivers and ensure proper bend radius during installation.
