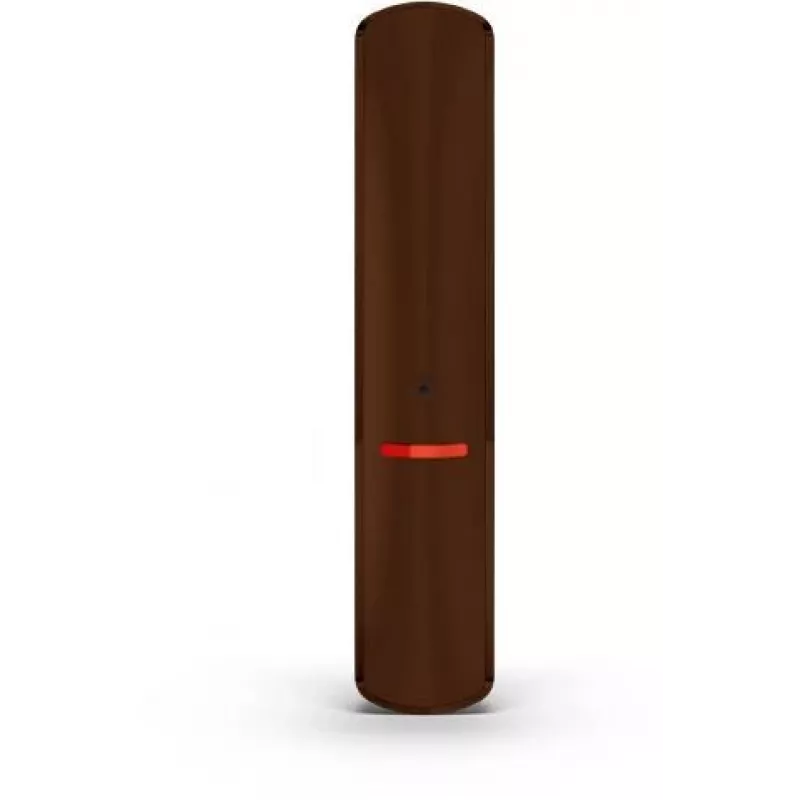

SATEL AGD-200 BR Rilevatore di rottura vetri wireless (Marrone)

The SATEL AGD-200 BR is a wireless glass break detector that uses advanced acoustic sensing to reliably detect the sound of breaking glass up to 9 meters away. Operating on the ABAX 2 / ABAX two-way wireless system, it ensures secure and energy-efficient communication with the control panel, making it an ideal choice for protecting windows and glass doors in residential and commercial properties.

Advantages

With its high-sensitivity microphone and digital signal processing, the AGD-200 BR distinguishes genuine glass break sounds from other noises, minimizing false alarms. The detector is fully wireless, powered by a single CR123A lithium battery that lasts up to 2 years on ABAX 2 systems, and it includes tamper protection against enclosure opening and removal from the mounting surface. Remote sensitivity adjustment and signal strength indication via the controller simplify installation and maintenance.

Suitable for

• Homes and apartments with large glass surfaces
• Offices, retail stores, and showrooms
• Integration with SATEL ABAX 2 or ABAX wireless alarm systems
• Indoor environments with temperature from -10°C to +55°C

Key specifications

• Detection method: acoustic (microphone-based)
• Detection range: up to 9 m radius
• Wireless protocol: ABAX 2 / ABAX, 868 MHz frequency band
• Battery: CR123A 3V lithium, up to 2 years life (ABAX 2)
• Tamper protection: enclosure opening and detachment from surface
• Environmental class: II (EN 50130-5), max humidity 93±3%
• Colour: brown

Recommendations

For optimal performance, mount the AGD-200 BR on a wall or ceiling with a clear line of sight to the protected glass, at a height of 2–2.4 meters. Test the detector after installation and periodically check battery status via the SATEL controller. Use only with compatible SATEL ABAX 2 / ABAX systems.
