SATEL CD-2 Rilevatore PIR a tendina

The SATEL CD-2 is a passive infrared (PIR) curtain detector designed for indoor use. It provides a narrow, vertical detection pattern ideal for protecting windows, doors, and other openings. With a detection range of 12 m x 1 m and a recommended installation height of 2.4 m, it offers reliable perimeter security. The detector features a normally closed (NC) relay alarm output and a tamper output, both rated at 40 mA / 24 V DC. It operates on 12 V DC power supply and consumes only 10 mA in standby. The CD-2 is EN 50131 Grade 2 certified, ensuring high security standards.

Advantages

Compact design with curtain detection pattern for precise area coverage. Low power consumption and fast warm-up time of 30 seconds. Easy wall or surface mounting with included accessories. Reliable performance in temperatures from -10°C to +55°C.

Suitable for

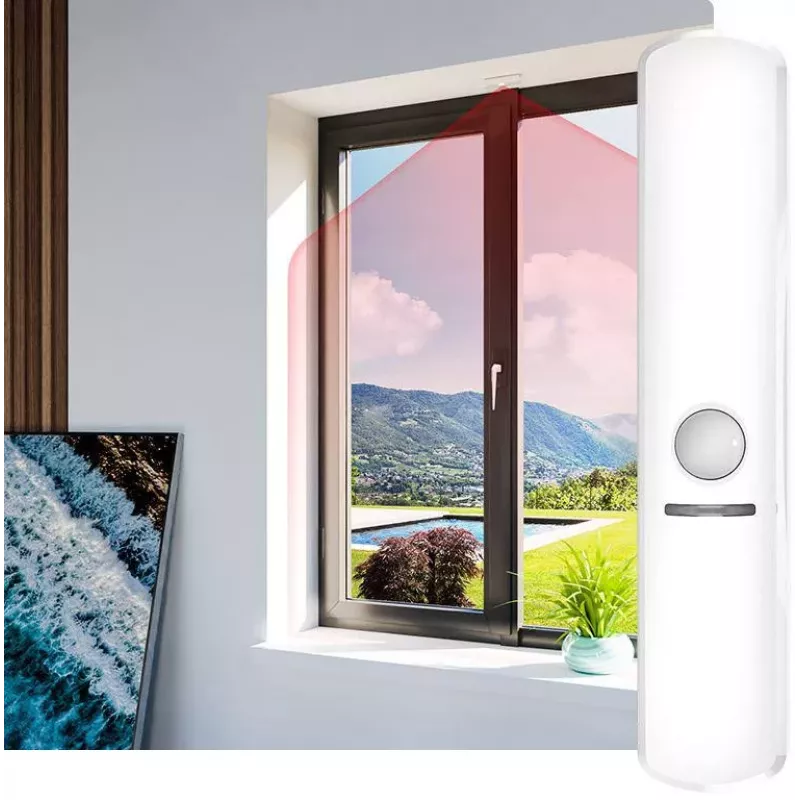

• Securing windows and glass doors
• Perimeter protection in residential and commercial buildings
• Integration with alarm systems requiring NC relay outputs

Key specifications

• Detector Type: Passive Infrared (PIR)
• Detection Pattern: Curtain
• Detection Range: 12 m x 1 m
• Recommended Installation Height: 2.4 m
• Power Supply: 12 V DC (±15%)
• Current Consumption (Standby): 10 mA
• Current Consumption (Max): 12 mA
• Alarm Output: NC Relay, 40 mA / 24 V DC
• Tamper Output: NC Relay, 40 mA / 24 V DC
• Operating Temperature: -10°C to +55°C
• Warm-up Time: 30 seconds
• Alarm Signaling Time: 2 seconds
• Protection Class: IP20
• Mounting Type: Wall / Surface
• Security Grade: EN 50131 Grade 2

Recommendations

For optimal performance, install at the recommended height of 2.4 m and ensure the detection area is free from obstructions. Use with a compatible 12 V DC power supply and connect to an alarm panel with NC inputs.
