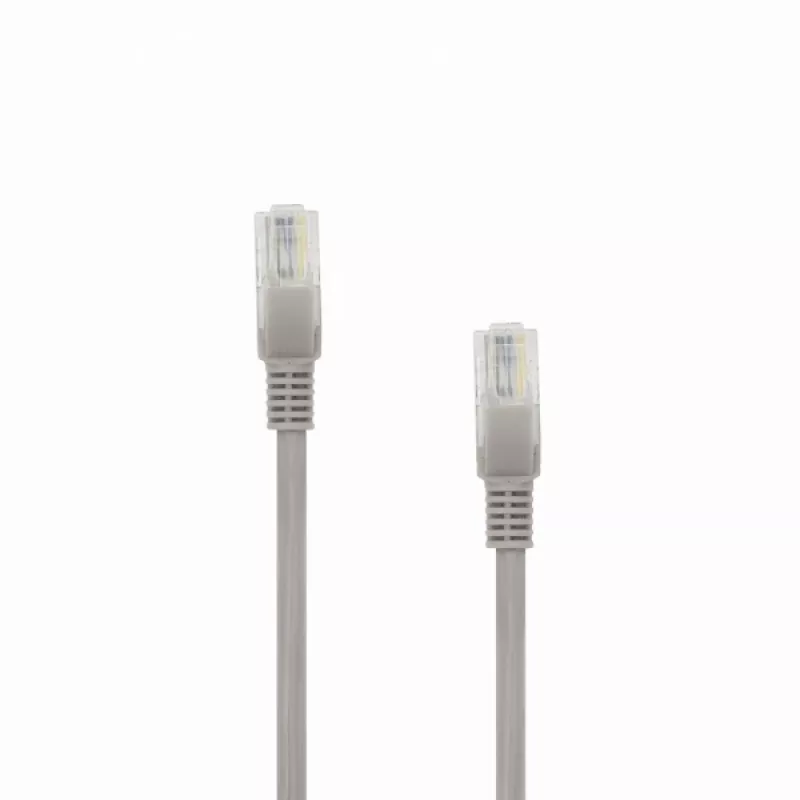

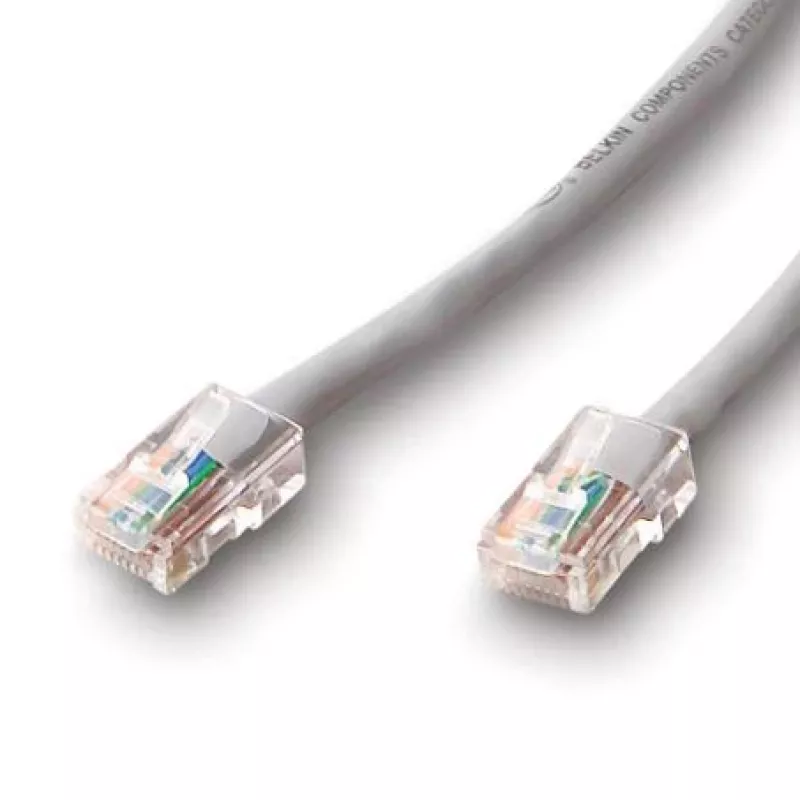

Sbox UTP-30 UTP CAT5e RJ45 30 m cavo di rete nero

The SBOX UTP-30 is a 30-meter unshielded twisted pair (UTP) CAT5e network cable with RJ45 connectors, designed for standard Ethernet and data transmission in home and office networks. It uses four twisted pairs (4P x 7 x 0.16 CCA) with 26 AWG conductors and comes with gold-plated, molded RJ45 plugs to ensure stable connections and corrosion resistance.

Advantages

This CAT5e cable provides stable data transmission over 30 meters with a balance of flexibility and durability. Gold-plated molded RJ45 connectors improve contact reliability and reduce signal loss at plug points. The 4 twisted-pair design meets CAT5e performance requirements for typical LAN uses, and the cable construction is suitable for everyday networking installations.

Suitable for

• Wired Ethernet connections (10/100/1000 Mbps depending on network equipment)
• Connecting routers, switches, modems and PCs
• Home and small office local area networks
• Temporary or permanent in-wall routing where CAT5e meets requirements

Key specifications

• Category: CAT5e UTP
• Length: 30 m

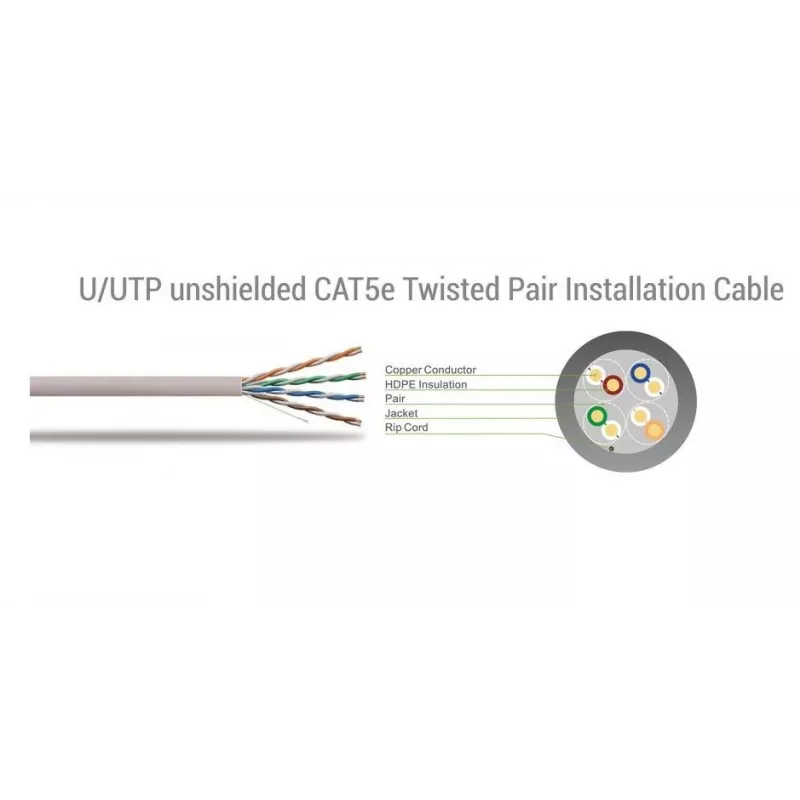

• Conductor: 26 AWG, copper-clad aluminum (CCA), 4 pairs (7 strands × 0.16 mm)
• Connector type: RJ45, gold-plated, molded
• Cable type: Unshielded twisted pair (UTP)

How to use

Strip a short section of the outer jacket, taking care not to nick the inner conductors, and terminate with an RJ45 plug if custom connectors are needed; otherwise use the pre-terminated RJ45 plugs to connect network devices directly. Route the cable avoiding sharp bends and sources of electromagnetic interference. For wall or conduit installations, follow local building and low-voltage wiring codes.

Recommendations

For best performance, avoid running the cable in parallel with high-voltage power lines and maintain bend radii larger than the cable diameter. Use this CAT5e cable for standard LAN applications up to typical distances for 100 Mbps and 1 Gbps over CAT5e, verifying device compatibility.
