Scatola da incasso JUNG CD 583 A WW

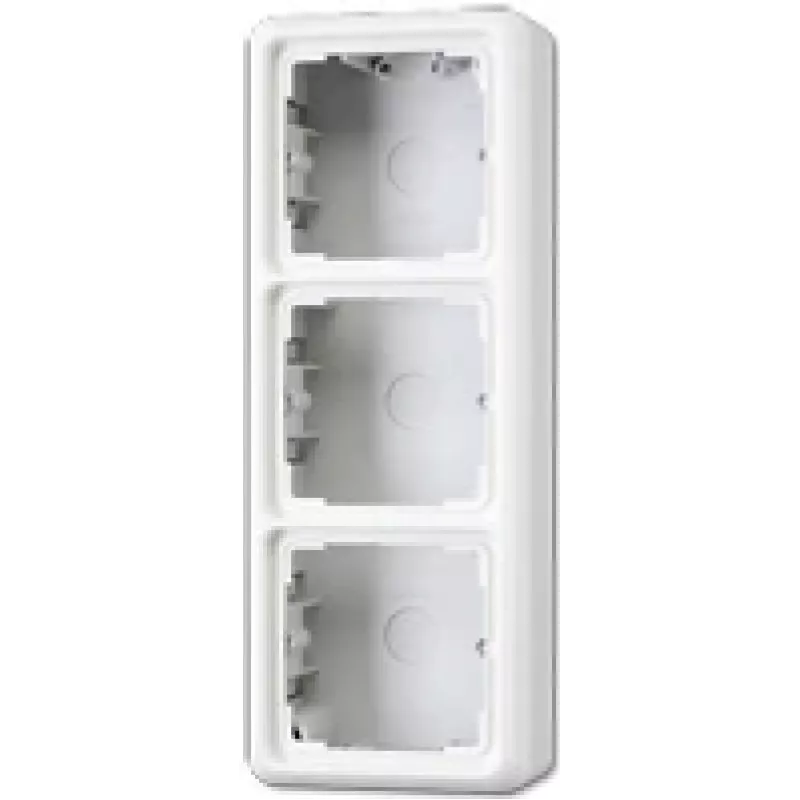

The JUNG CD 583 A WW outlet box is a white, 3-gang surface-mounted enclosure measuring 227 x 85 x 47 mm with an integrated frame and a non‑flammable ground plate. It accepts CD-range inserts with covers, excluding key switches with reference number ending in ..15, the 3-level switch, and the Swiss type 13 socket. The box does not support installation of the R AN .. M 514 .. radio insert into its surface caps.

Advantages

The enclosure provides a compact 3-gang solution with a non‑flammable grounding plate for improved safety. Its integrated frame ensures neat alignment of CD-range inserts with covers, and the white finish offers a neutral appearance suitable for many interiors. Dimensions of 227 x 85 x 47 mm allow straightforward surface mounting in residential and commercial settings.

Suitable for

Key specifications

How to use

Mount the outlet box on a suitable flat surface using appropriate screws and anchors for the substrate. Fit CD-range inserts with covers into the integrated frame, observing the stated compatibility exclusions. Ensure the non‑flammable ground plate is connected according to local electrical regulations and that all wiring is carried out by a qualified electrician.

Recommendations

Do not install key switches with reference ..15, the 3-level switch or the Switzerland type 13 socket into this box. For safe operation and compliance with regulations, have electrical connections made and verified by a licensed electrician.
