Scatola di connessione Hikvision DS-1280ZJ-TR13 esterno nero argento 1kg

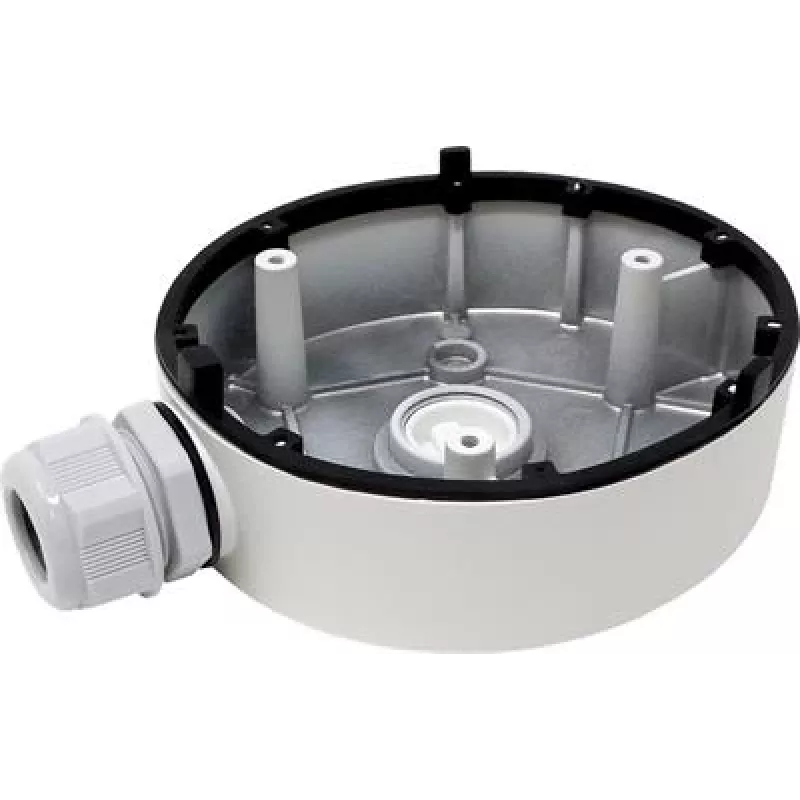

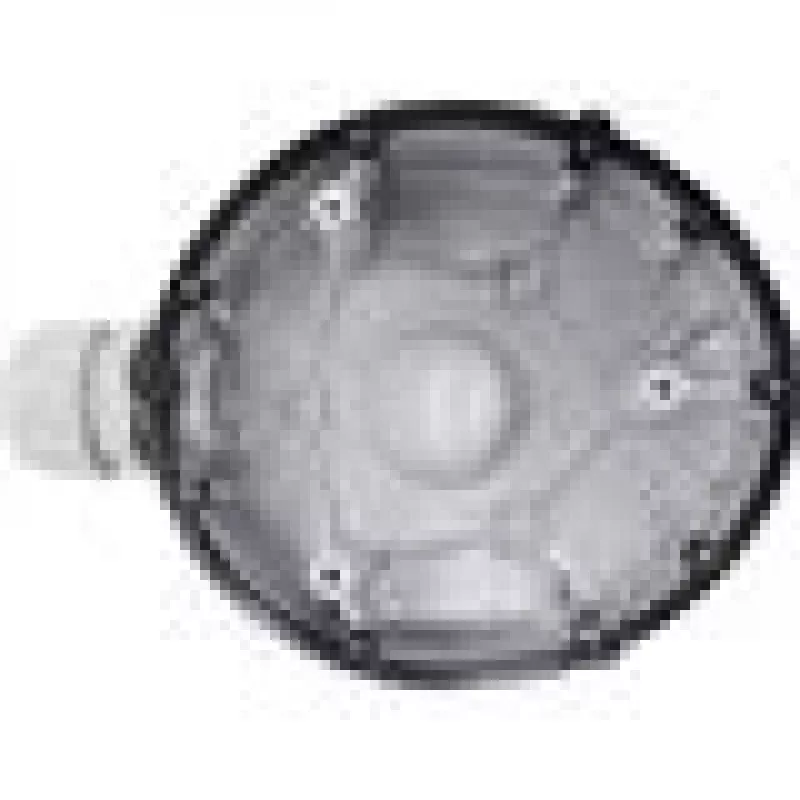

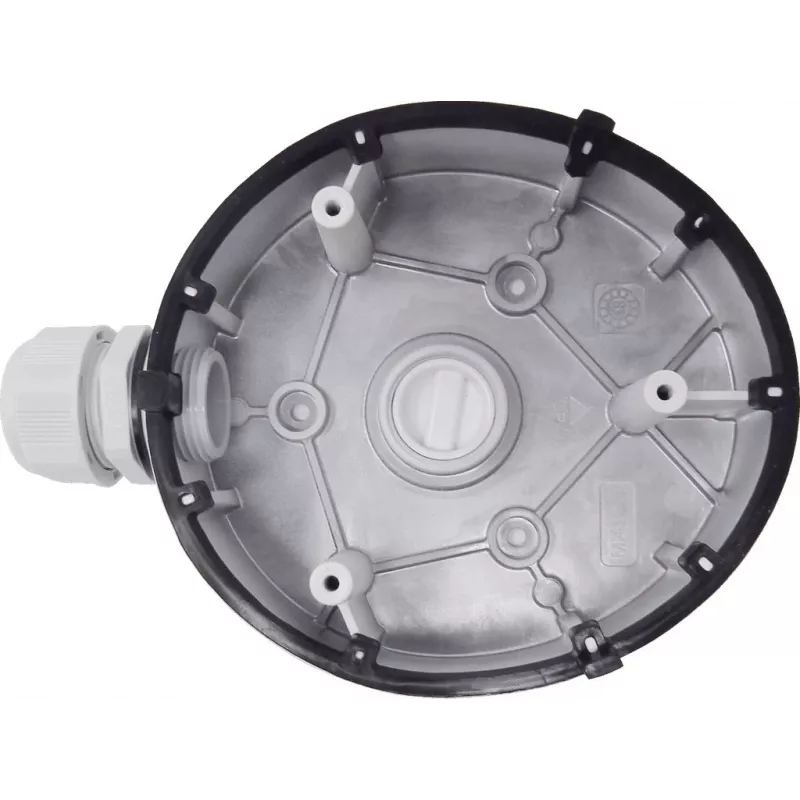

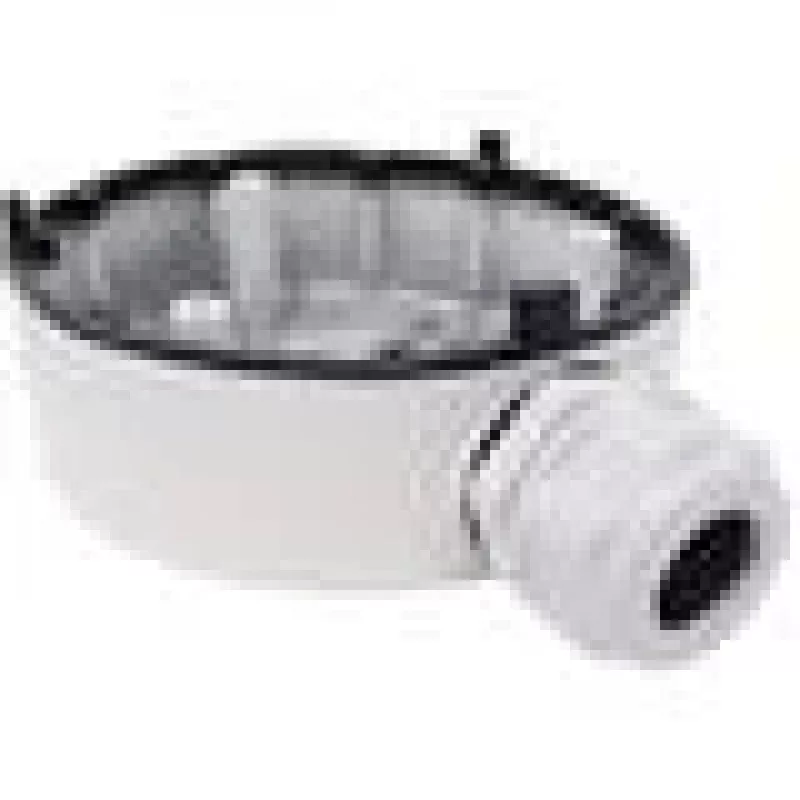

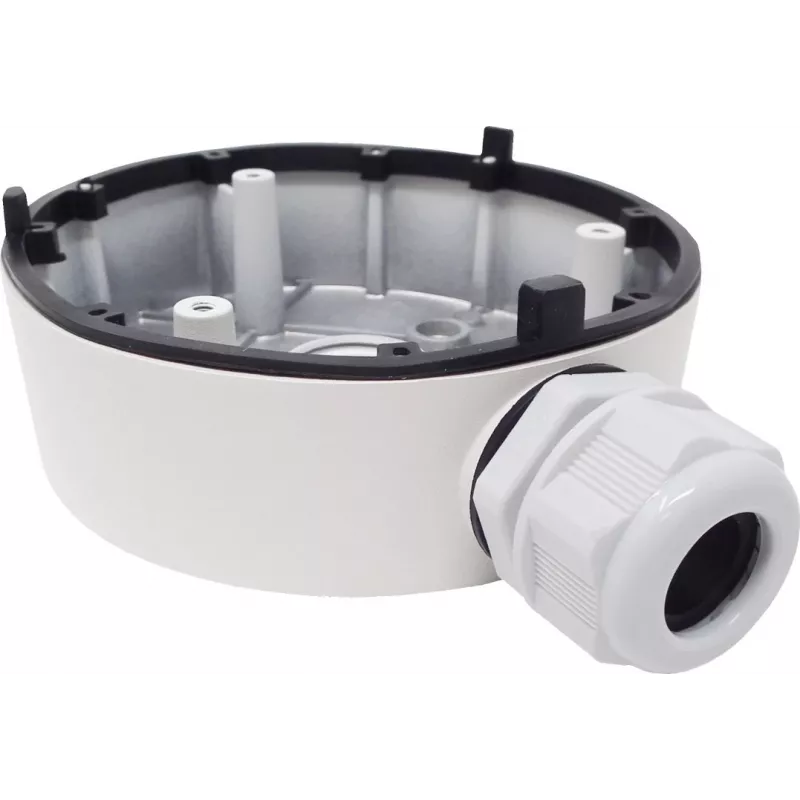

The Hikvision DS-1280ZJ-TR13 Outdoor junction box is a compact mounting accessory designed for outdoor security camera installations. It provides a neat, weather-resistant enclosure for camera connections and cabling, accommodating cameras up to 1 kg. With a diameter of 11 cm and overall dimensions of 144.3 mm width and 48 mm depth, the unit offers a low-profile solution for wall or pole mounting in black or silver finish to match different camera models and site aesthetics.

Advantages

The junction box simplifies cable management and protects electrical connections from moisture and dust, reducing exposure-related failures. Its compact form factor and standardized mounting points make installation straightforward while keeping the camera position stable. Available in two color options, the unit can blend with the camera housing or building facade, and the specified 1 kg load capacity ensures compatibility with a wide range of compact outdoor cameras.

Suitable for

• Outdoor wall-mounted security cameras with weight up to 1 kg
• Installations requiring tidy cable routing and protected connection points
• Small commercial or residential surveillance setups where compact mounting hardware is preferred
• Replacement or upgrade of existing junction boxes with matching dimensions

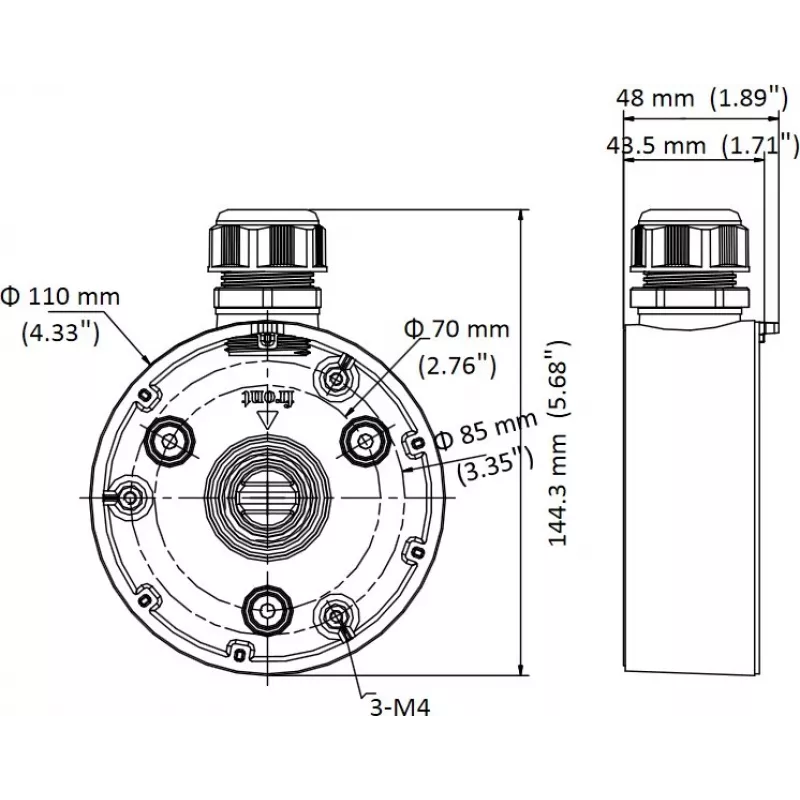

Key specifications

• Maximum supported camera weight: 1 kg
• Outer diameter: 11 cm
• Width: 144.3 mm
• Depth: 48 mm
• Available colors: black, silver
• Mounting type: outdoor junction box for wall or pole mounting
• Enclosure purpose: cable management and protection for camera connections

How to use

Position the DS-1280ZJ-TR13 at the chosen mounting point and mark the fixing holes according to the box orientation. Secure the box to a stable surface using appropriate anchors or screws for the mounting substrate. Route camera cables through the entry point, make the necessary electrical and signal connections inside the enclosure, and ensure all joints and cable entries are sealed to maintain weather resistance. Attach the camera to the junction box using compatible screws and verify the load does not exceed 1 kg.

Recommendations

Use corrosion-resistant screws and proper wall anchors suited to the mounting surface. Apply silicone or appropriate sealing around cable entries after installation to preserve weather resistance. Periodically inspect the junction box and mounting hardware for signs of corrosion or loosening, especially in coastal or industrial environments.
