Scheda di interfaccia DeLOCK 89656 interna USB 2.0

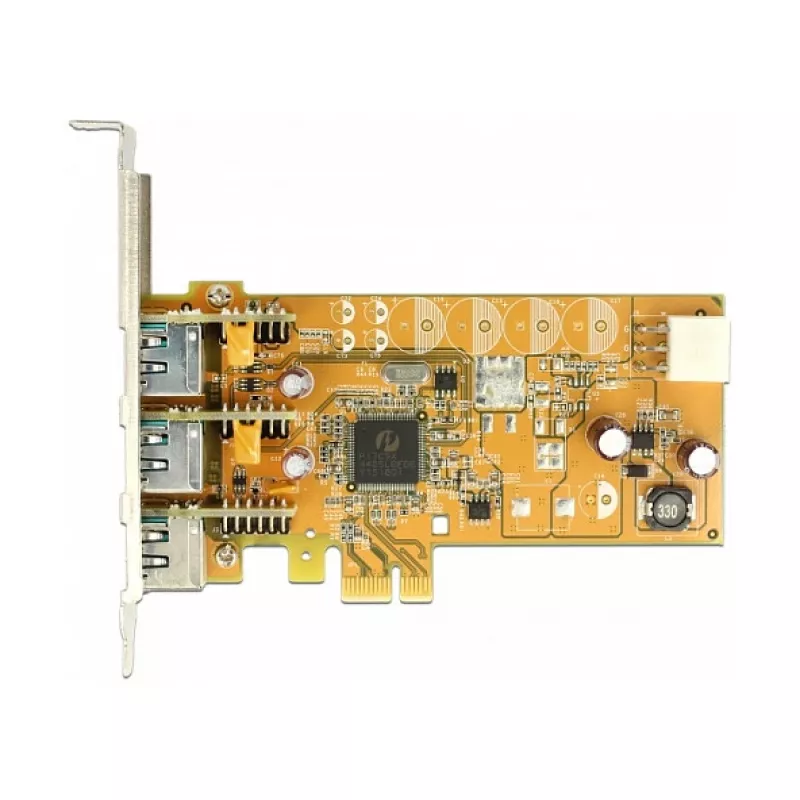

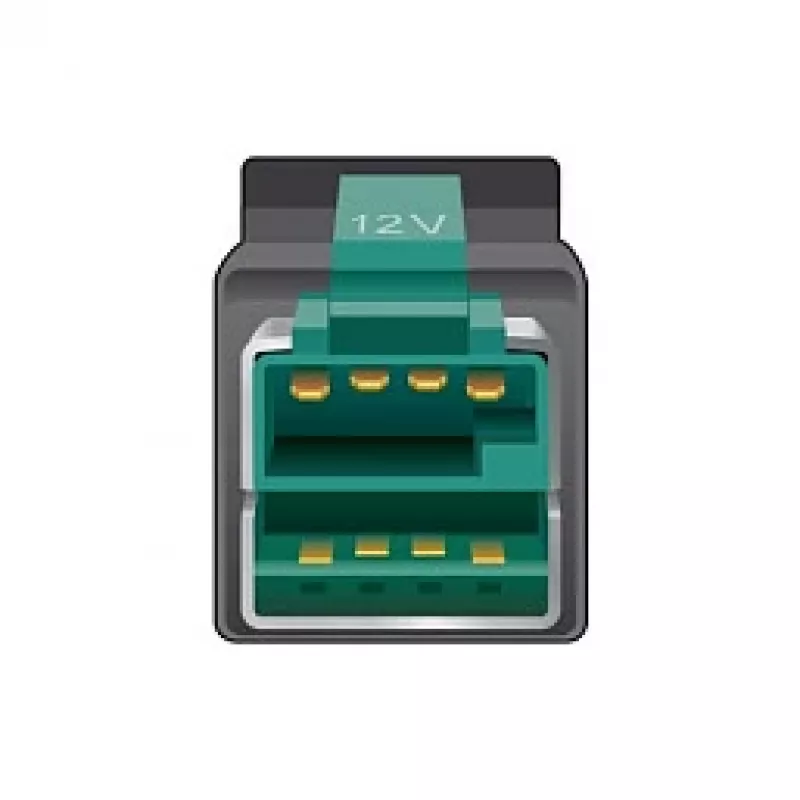

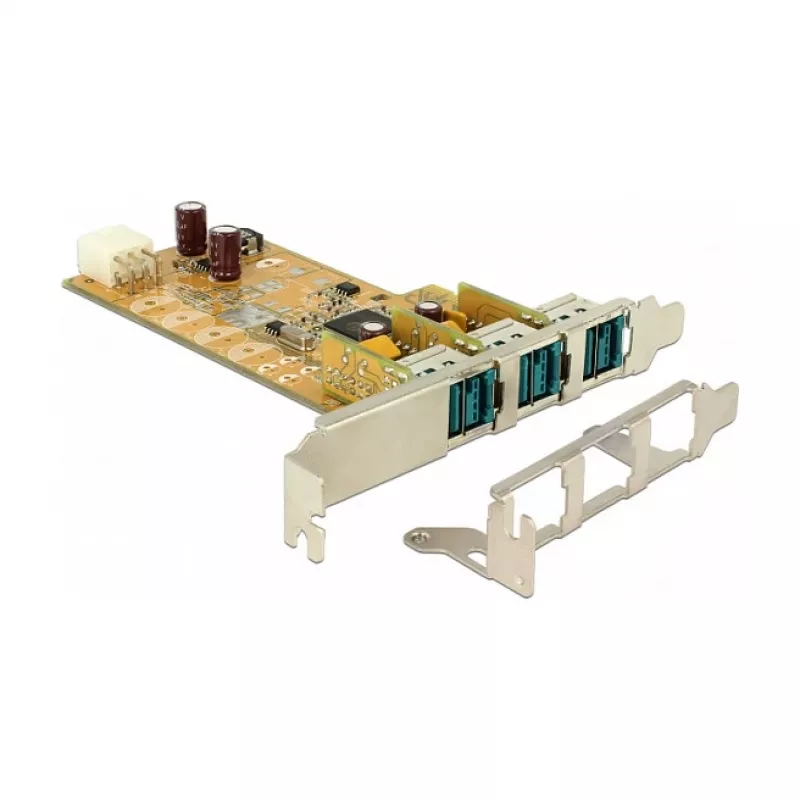

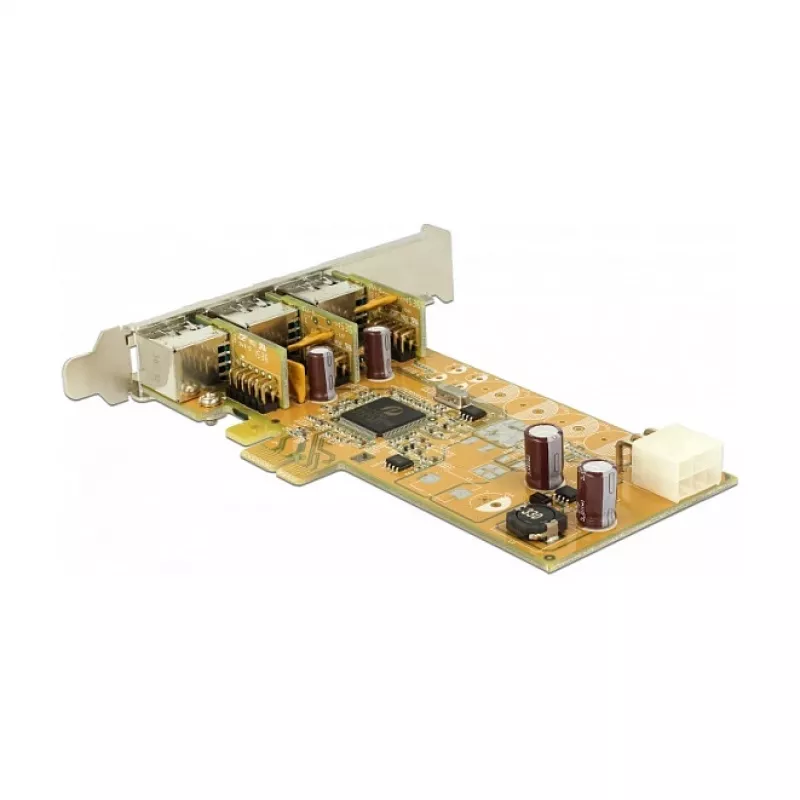

The DeLOCK 89656 is a PCI Express internal interface card that adds three externally accessible, powered USB 2.0 ports to a PC. Based on the Pericom PI7C9X chipset, the card supports USB 2.0 transfer rates up to 0.48 Gbit/s and is intended for connecting a variety of USB peripherals such as docking stations, card readers or external enclosures. With appropriate cables the powered ports can also supply devices that require a 12 V power source, for example barcode scanners or POS equipment, without an additional external power adapter.

Advantages

The card provides three externally mounted, powered USB 2.0 ports via a PCIe slot, enabling convenient connection of multiple USB devices. Its powered outputs allow connection of peripherals that need up to 12 V supply via suitable cabling, reducing the need for separate power adapters. The compact internal design and standard PCIe host interface make installation straightforward in compatible desktop systems.

Suitable for

Key specifications

How to use

Install the card into an available PCIe slot on a powered-off desktop PC, secure it in the case and connect any required internal power or data cables according to the system manual. After booting the system, install drivers if the operating system does not automatically recognize the Pericom PI7C9X chipset. Connect external USB devices to the three powered ports. For devices that require a 12 V supply, use appropriate cables and verify pinout and voltage compatibility before connecting.

Recommendations

Ensure the PC chassis provides adequate clearance and that the system power supply can support the additional powered USB ports. Verify cable types and voltage/pinout compatibility when connecting 12 V peripherals to avoid damage. Keep device drivers up to date for reliable operation.
