Scheda di rete Edimax EW-7833AXP WLAN Bluetooth 2400 Mbit/s

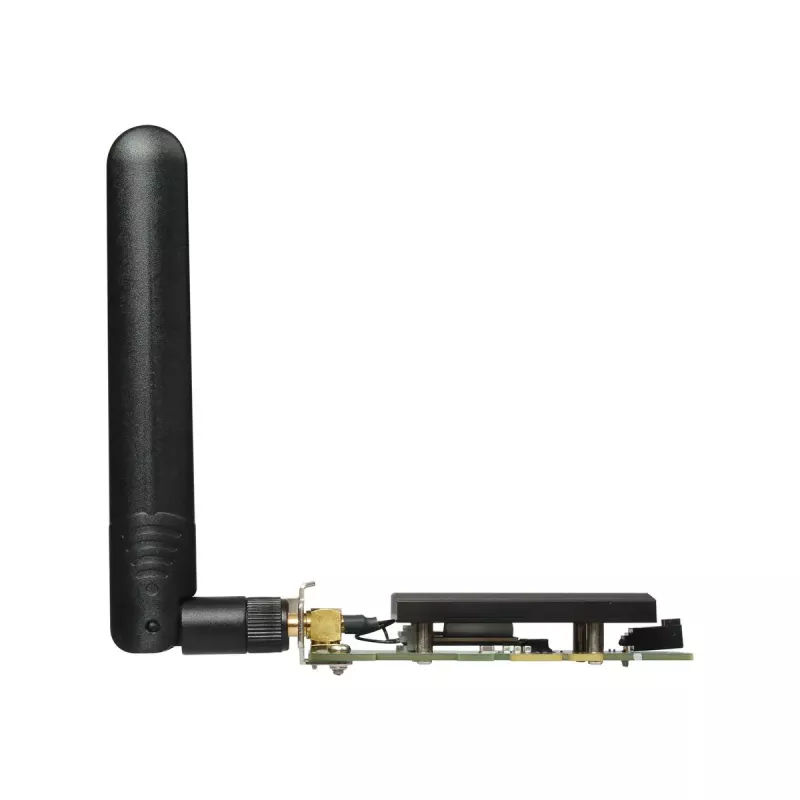

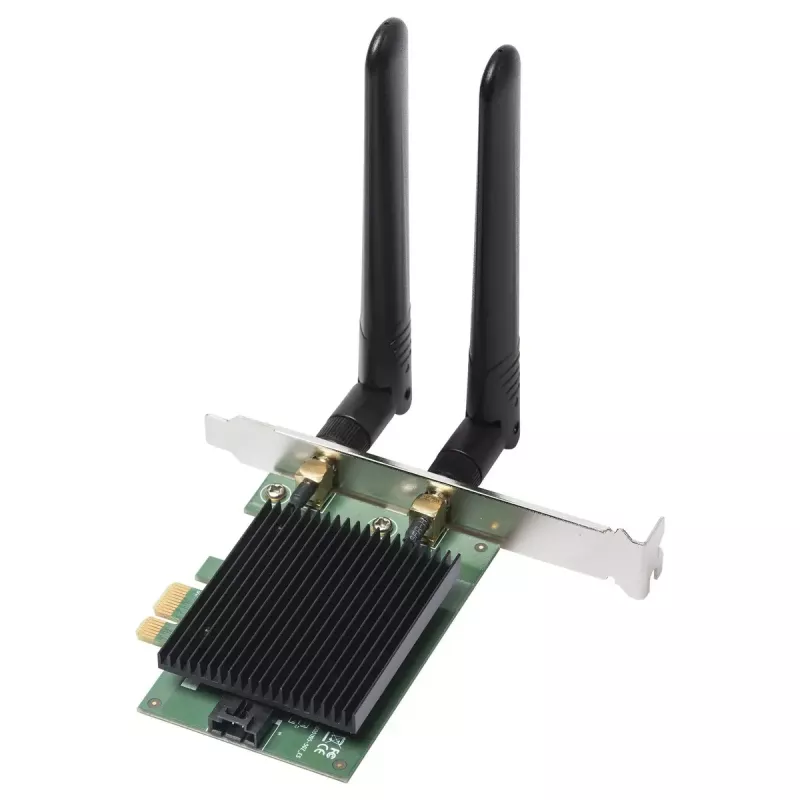

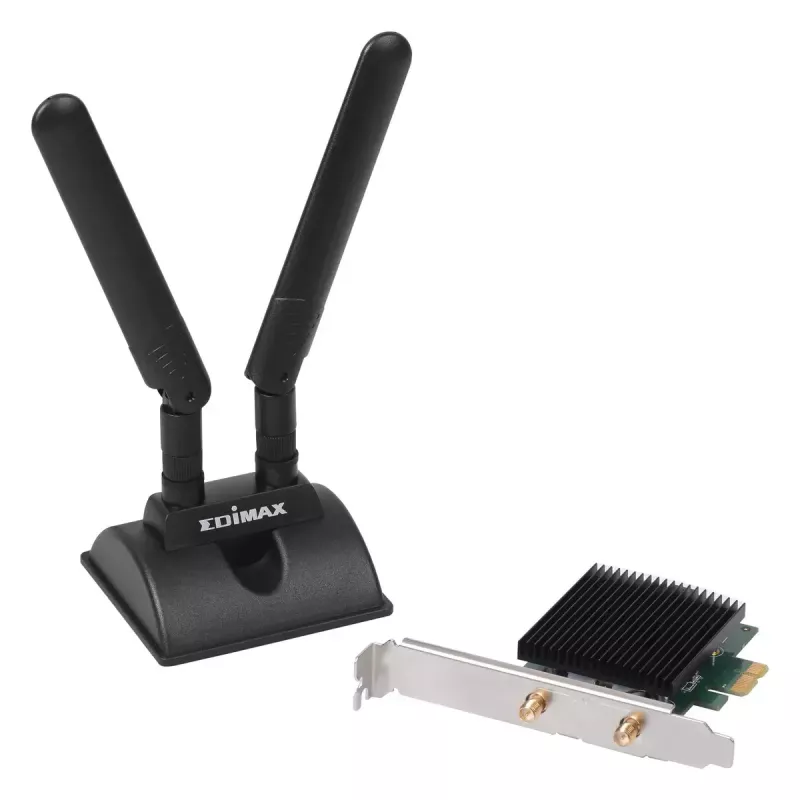

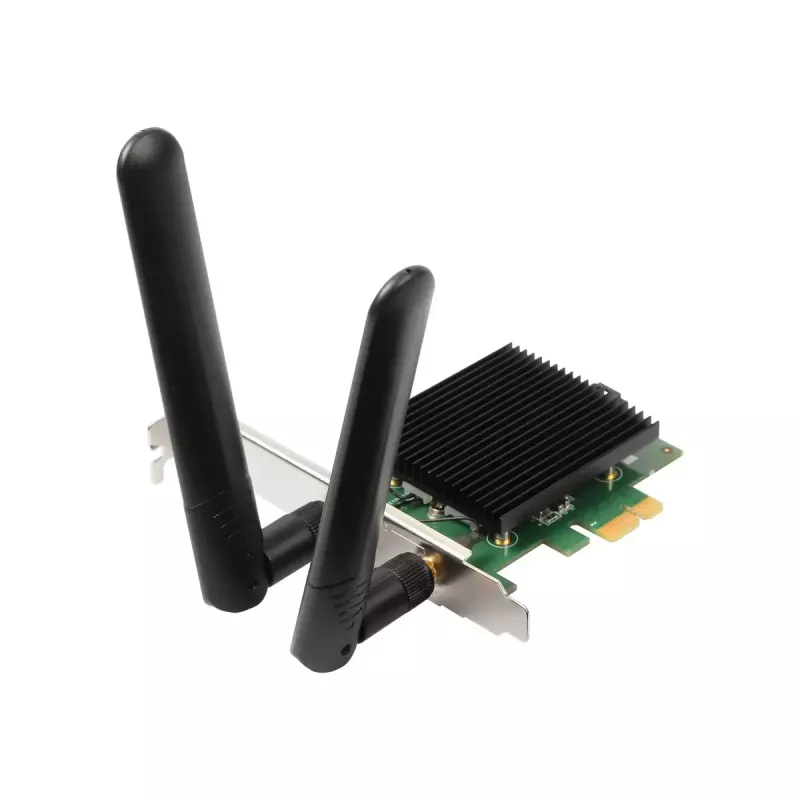

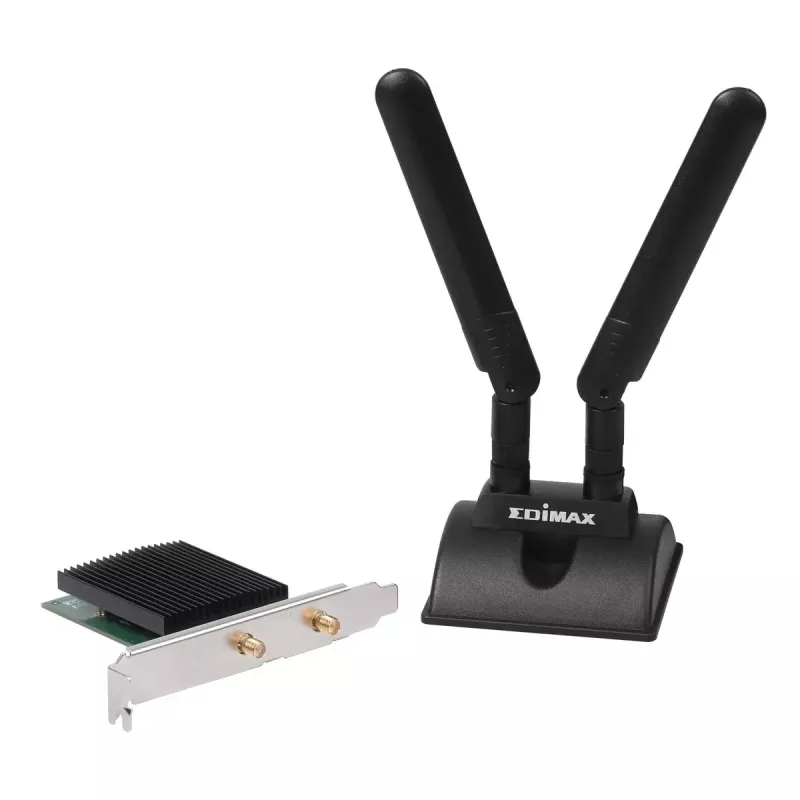

The Edimax EW-7833AXP is a PCI Express network card that adds Wi‑Fi 6 (802.11ax) and Bluetooth 5.0 connectivity to a desktop PC. It supports dual‑band operation on 2.4 GHz and 5 GHz and a maximum data transfer rate up to 2400 Mbit/s, enabling simultaneous handling of high‑bandwidth activities and everyday tasks. The card includes an option for external or compact antenna placement and a gold‑plated connector for stable signal performance.

Advantages

The EW-7833AXP delivers Wi‑Fi 6 features such as OFDMA and MU‑MIMO for more efficient multi‑device data delivery, and WPA3 support for improved wireless security using 128‑bit encryption. Built‑in Bluetooth 5.0 provides increased range and speed compared with older Bluetooth versions. The small PCI‑E form factor and flexible antenna options let you choose a compact internal arrangement or an external antenna with a magnetic base to extend coverage.

Suitable for

• HD video streaming and online gaming on 5 GHz
• Email, web browsing and background network tasks on 2.4 GHz
• Desktop PCs that need wireless connectivity via PCI Express
• Systems requiring Bluetooth 5.0 for peripherals

Key specifications

• Standard: IEEE 802.11ax (Wi‑Fi 6)
• Dual band: 2.4 GHz and 5 GHz
• Maximum data rate: up to 2400 Mbit/s
• Interface: PCI Express
• Bluetooth: 5.0
• Security: WPA3 (128‑bit encryption)
• Product colour: Black
• Weight: 0.0867 kg

How to use

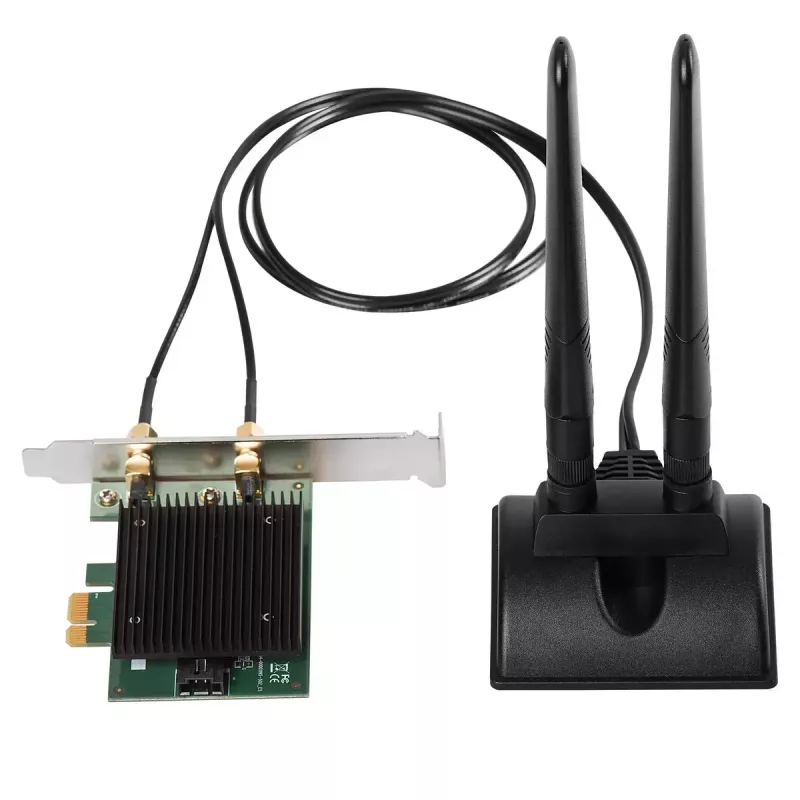

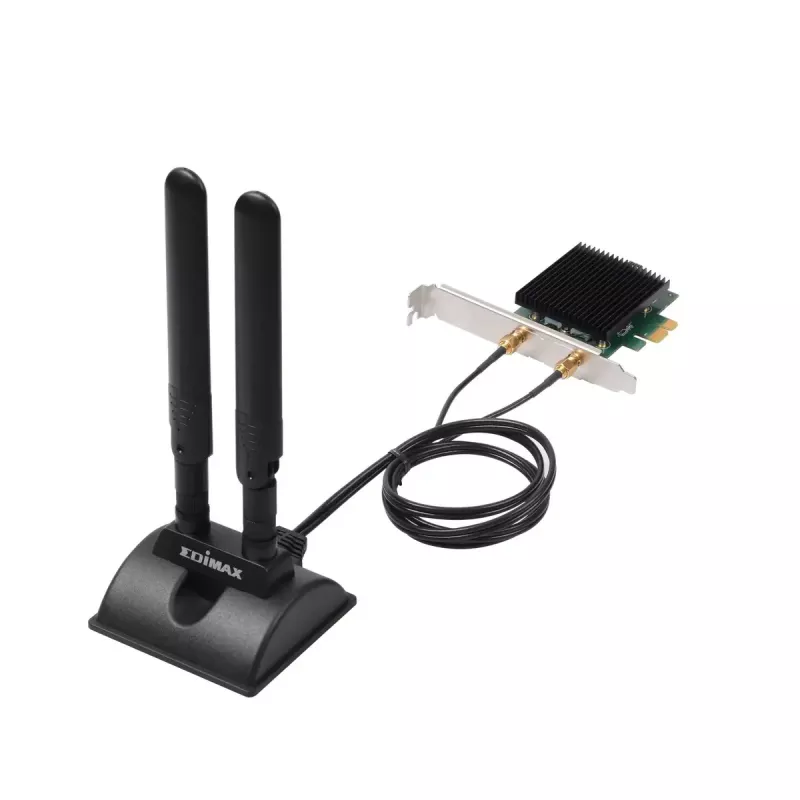

Install the EW-7833AXP into an available PCI Express slot on your desktop motherboard and secure it according to your PC case instructions. Attach the antenna in the preferred configuration: directly on the card for a compact setup or to the external connector and magnetic base to position antennas on a metal surface or higher location. Install drivers provided by the manufacturer or via the operating system to enable Wi‑Fi 6 and Bluetooth 5.0 functionality. Configure wireless network settings and Bluetooth pairing through your system network and device settings.

Recommendations

For optimal performance, place external antennas clear of large metal obstructions and use the 5 GHz band for latency‑sensitive activities (gaming, HD streaming) while reserving 2.4 GHz for background tasks. Keep drivers and firmware up to date and enable WPA3 on compatible routers to use the card’s enhanced security features.
