Scheda di rete WLAN Bluetooth interna Cudy WE9300S PCIe, Wi-Fi 7 (802.11be) tri-band 2.4/5/6 GHz, 5765 Mbit/s, Bluetooth 5.4, antenna esterna 2x2

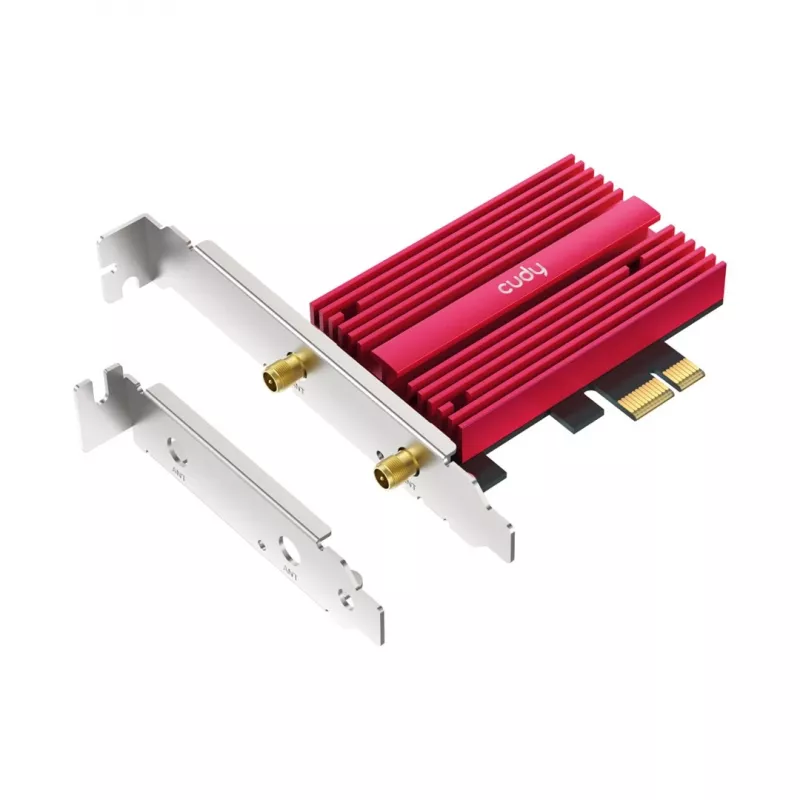

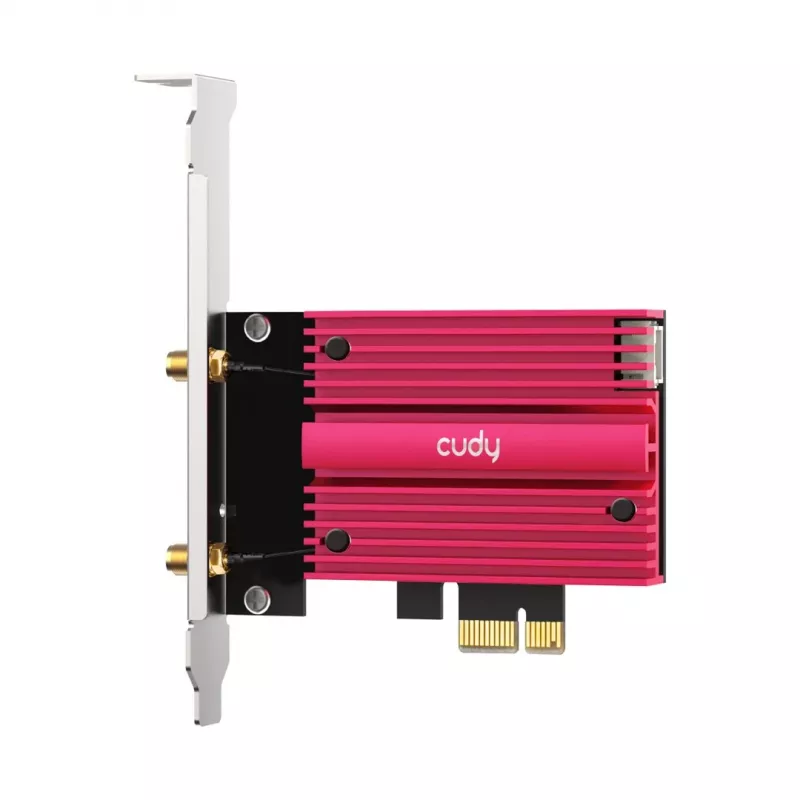

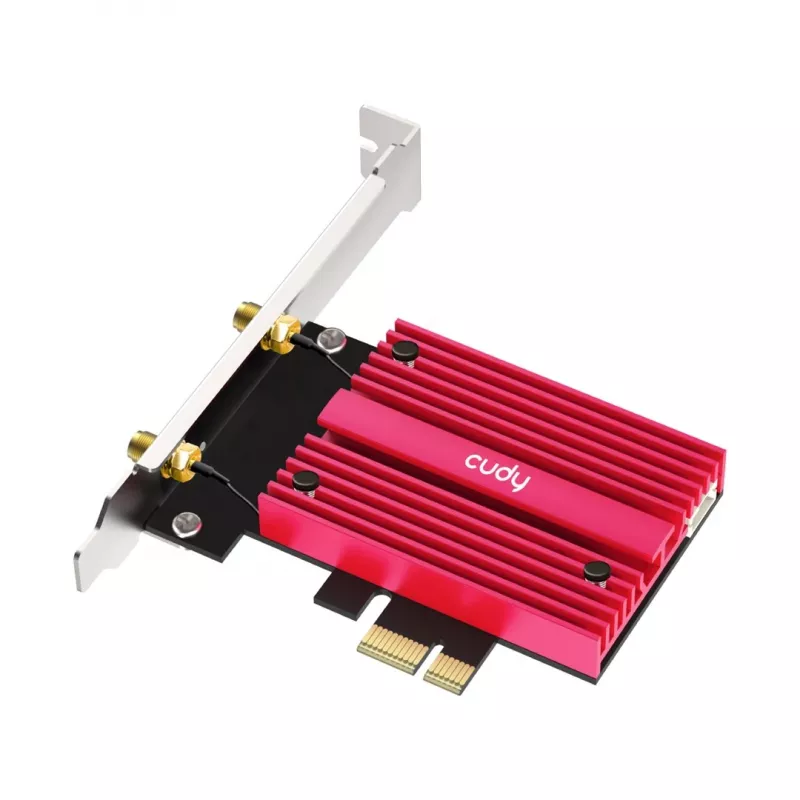

The Cudy WE9300S is an internal WLAN and Bluetooth PCI‑Express adapter based on the Intel BE200 module. It provides Wi‑Fi 7 tri‑band connectivity (2.4 GHz / 5 GHz / 6 GHz) with a maximum data rate of 5765 Mbit/s, Bluetooth 5.4 support, a heatsink for thermal management and two external magnetic‑base antennas. Install the card in a Windows 11 Intel‑based PC to add high‑speed wireless networking and Bluetooth functionality.

Advantages

The adapter combines Wi‑Fi 7 throughput and Bluetooth 5.4 in a single PCI‑E module, offering tri‑band operation and a 2x2 antenna configuration for improved wireless performance. The integrated heatsink helps maintain stable operation under load, and the magnetic antennas simplify placement and signal optimization. The PCI Express interface makes it compatible with standard desktop PC expansion slots.

Suitable for

• Upgrading desktop PCs to Wi‑Fi 7 connectivity
• Low‑latency online gaming and streaming
• High‑speed large file transfers over wireless networks
• Adding Bluetooth 5.4 for peripherals and audio devices

Key specifications

• Brand: Cudy; Model: WE9300S (Intel BE200 module)
• Interface: PCI Express (internal card)
• Wireless standard: Wi‑Fi 7; Bands: 2.4 / 5 / 6 GHz (tri‑band)
• Maximum data transfer rate: 5765 Mbit/s
• Bluetooth: version 5.4

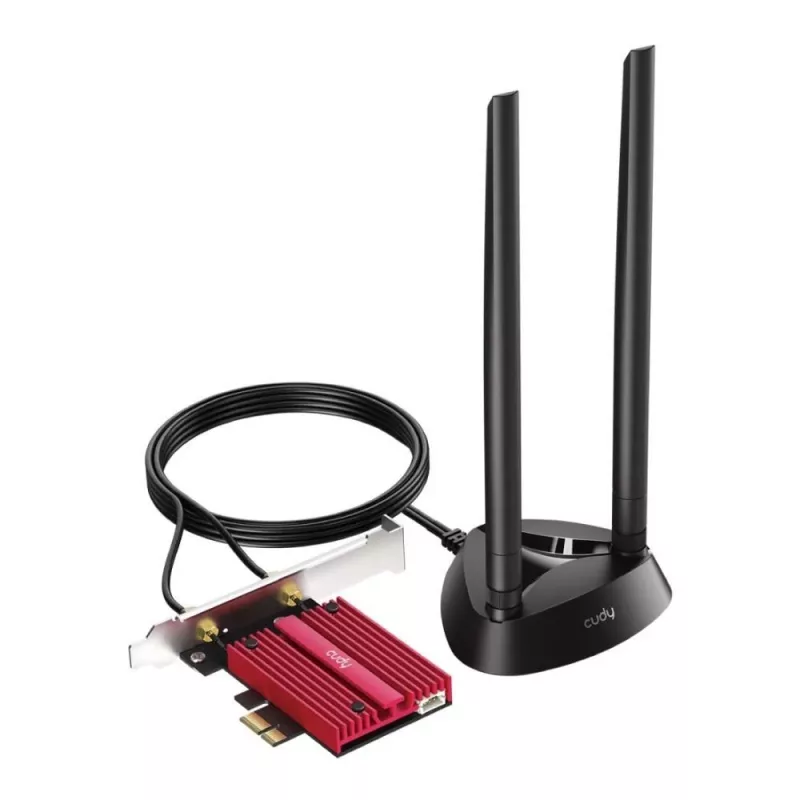

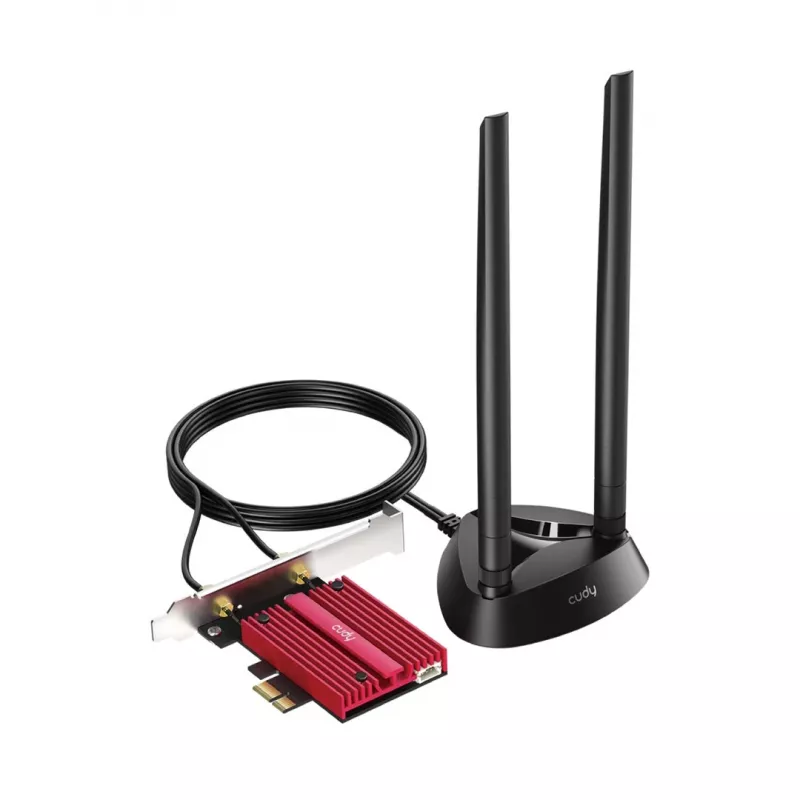

• Antenna: 2 external antennas with magnetic base; antenna configuration: 2x2
• Cooling: heatsink included
• Compatible OS: Windows 11 (Intel‑based systems)
• Weight: 0.1207 kg

How to use

Power down the PC and open the case. Insert the Cudy WE9300S into an available PCI Express slot and secure it with the case screw. Connect the external antennas to the card and position them on a metal surface or other suitable location using the magnetic bases to improve reception. Close the case, power on the PC, and install the latest drivers from Cudy or Intel if Windows does not automatically install them. After driver installation, configure Wi‑Fi and Bluetooth settings in Windows 11 network and Bluetooth settings.

Recommendations

Install the card in a PCI‑E x1 or larger slot with adequate airflow; place the magnetic antennas elevated and away from large metal obstructions for best signal. Keep drivers up to date to ensure compatibility and performance.
