Scheda PCI Express x4 DeLOCK 89074

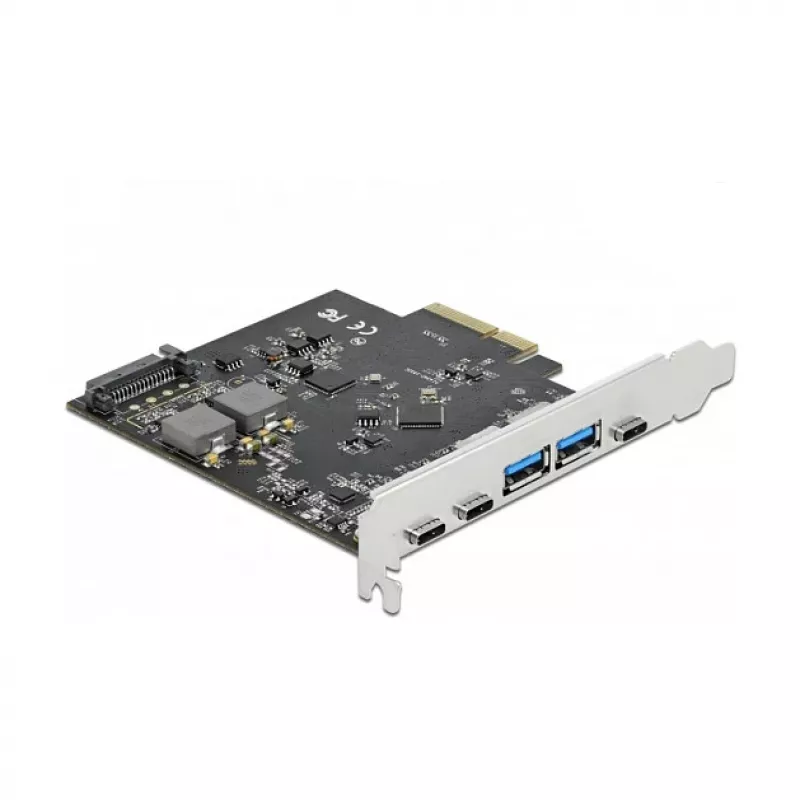

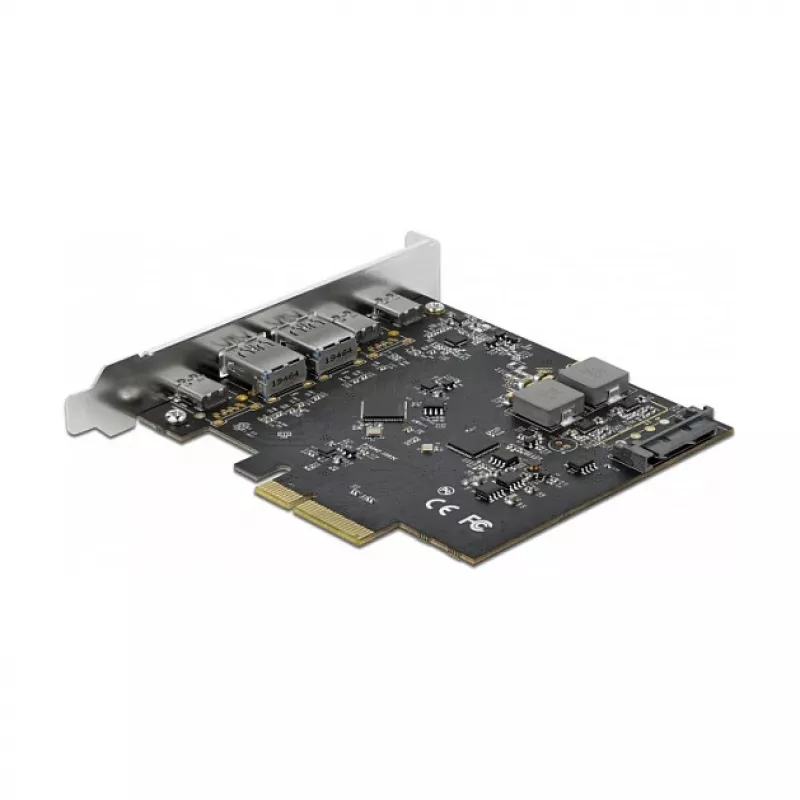

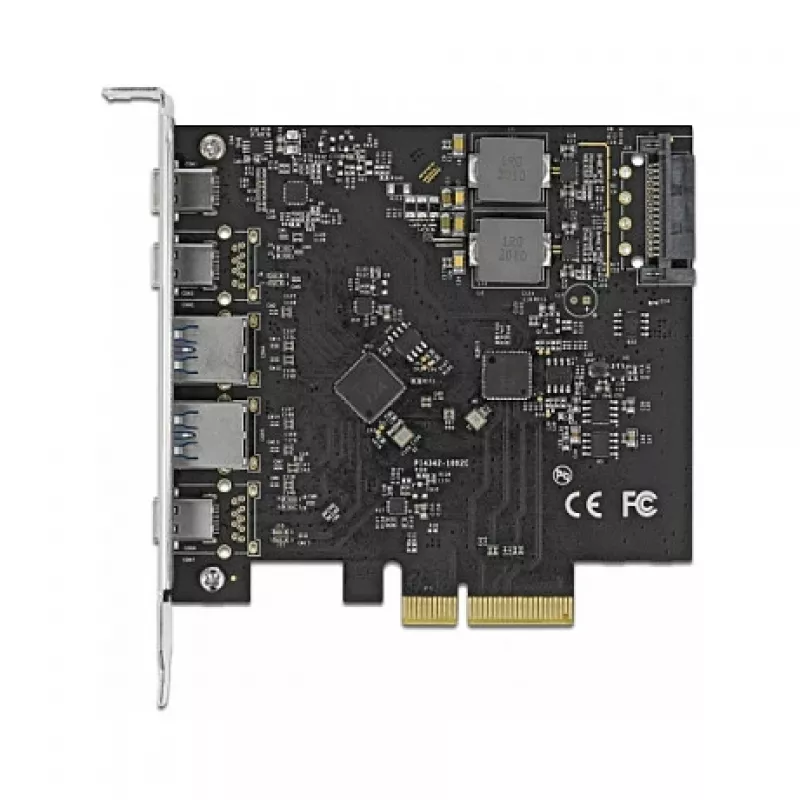

This PCI Express x4 card by Delock expands a desktop PC with five external USB 3.2 Gen 2 ports: three USB Type-C and two USB Type-A connectors. The card connects to the system via a PCIe x4 slot and requires a SATA 15-pin power connector. It supports data transfer rates up to 10 Gbps per port and is compatible with Windows 10 and Windows Server 2016.

Advantages

The card provides a mix of three USB-C and two USB-A ports on a single PCIe adapter, enabling simultaneous high-speed connections for multiple devices. Each port supports USB 3.2 Gen 2 speeds up to 10 Gbps. Installation uses a standard PCI Express x4 slot and the card draws additional power through a SATA 15-pin connector for stable operation with external devices.

Suitable for

Key specifications

How to use

Power off the PC and unplug it from mains. Insert the card into an available PCIe x4 (or larger) slot on the motherboard and secure it to the chassis. Connect the SATA 15-pin power cable from the power supply to the card. Reassemble the PC, power it on and install required drivers if prompted by the operating system. After installation, connect USB devices to the Type-C or Type-A ports for up to 10 Gbps transfer speeds per port.

Recommendations

For reliable high-speed transfers, use USB 3.2 Gen 2 compatible cables and devices. Ensure the power supply provides the SATA connector and sufficient wattage when connecting multiple external devices simultaneously.
