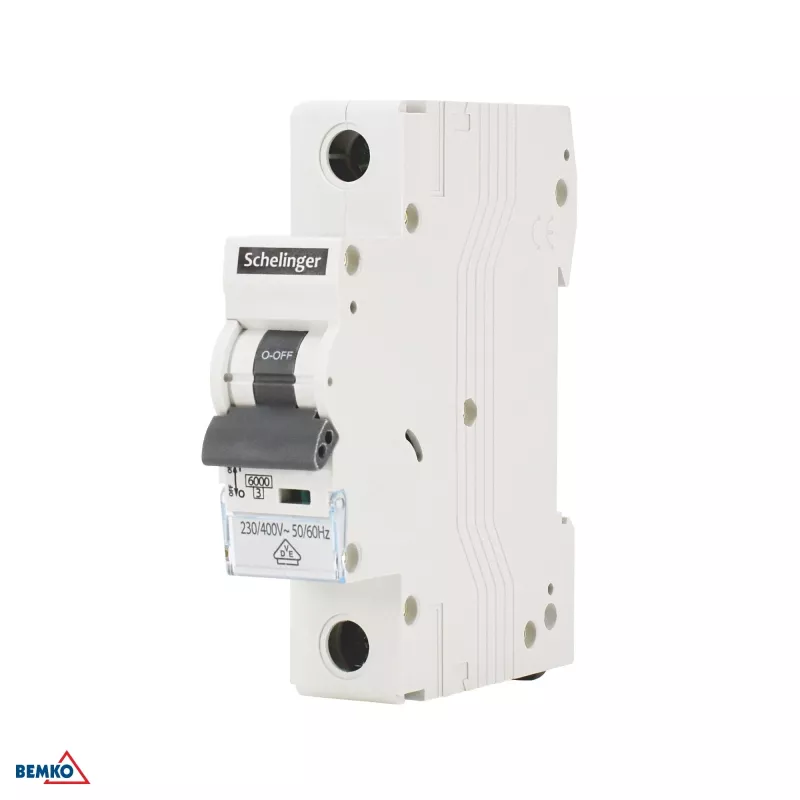

Schelinger A02-G8-1P-B32 6kA interruttore automatico 1 polo caratteristica B 32A

With a short-circuit breaking capacity of 6 kA and a rated current of 32 A, the Schelinger A02-G8-1P-B32 miniature circuit breaker delivers robust protection for residential and commercial electrical installations. Its B-curve tripping characteristic ensures rapid response to overloads and short circuits, while the single-pole design conserves space on the DIN rail.

Overview

Engineered to IEC/EN 60898-1 and VDE standards, this MCB offers reliable overcurrent protection for lighting and socket circuits. The 32 A rating suits circuits with moderate inrush currents, and the 6 kA breaking capacity handles typical fault levels in final distribution boards. The compact 18 mm width (1 module) allows high-density installation, and the screw terminals accept conductors from 1 to 25 mm², ensuring secure connections.

What stands out

• 6 kA short-circuit breaking capacity for safe interruption of fault currents
• B-curve tripping characteristic for protection of general-purpose circuits
• Clear ON/OFF/trip position indicator for quick status identification
• Long electrical life of at least 10,000 operations and mechanical life of 20,000 operations
• Wide operating temperature range from -25°C to +50°C
• Energy limiting class 3 for enhanced safety

Technical details

• Number of poles: 1P
• Rated current (In): 32 A
• Tripping curve: B
• Rated voltage (Ue): 230 V AC
• Rated frequency: 50/60 Hz
• Mounting type: DIN rail (35 mm)
• Terminal capacity: 1-25 mm² (solid/stranded wire)
• Protection degree: IP20
• Standard compliance: IEC/EN 60898-1, VDE
• Connection type: Screw terminals
• Module width: 1 module (18 mm)

Our verdict

A dependable and compact MCB that meets strict safety standards, ideal for protecting circuits in homes and small commercial buildings. Its 32 A rating and B-curve make it a versatile choice for a wide range of applications.
