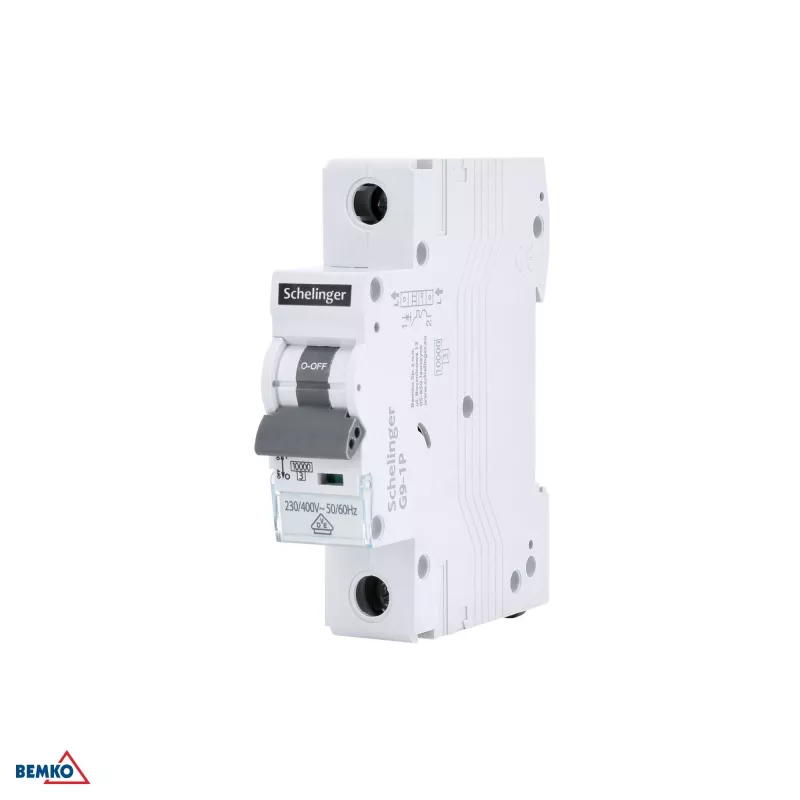

Schelinger A02-G9-1P-B10 interruttore automatico unipolare tipo B 10A, potere di interruzione 10kA, certificato VDE

For circuits that demand dependable protection without compromise, the Schelinger A02-G9-1P-B10 miniature circuit breaker stands apart with its 10 kA short-circuit breaking capacity and VDE certification—a combination that ensures both safety and compliance in residential and commercial installations. This single-pole, 10 A, Type B MCB is engineered to guard cables and equipment against overloads and short circuits, while its compact 18 mm width saves valuable space on the DIN rail.

Highlights

• 10 kA breaking capacity (Icn) for robust short-circuit protection
• Type B trip curve—ideal for general-purpose circuits with moderate inrush currents
• VDE and IEC/EN 60898-1 certified for assured quality and safety
• Energy limiting class 3 for superior current limitation
• Clear ON/OFF and trip indication for quick status checks
• Wide terminal capacity (1–25 mm²) and 2.5 Nm tightening torque for secure connections
• DIN rail mounting (EN 60715) for fast, tool-free installation

In daily use

Whether protecting lighting circuits, socket outlets, or small appliances, this MCB responds instantly to fault currents, disconnecting the supply to prevent damage. Its thermal-magnetic trip mechanism handles both slow overloads and sudden short circuits with precision, while the trip indicator provides immediate visual feedback. The IP40 front protection and IP20 terminals ensure safe operation even in dusty environments, and the wide operating temperature range (-25°C to +55°C) makes it suitable for challenging conditions.

Full specifications

• Brand: Schelinger
• Model: A02-G9-1P-B10
• Product type: Miniature circuit breaker (MCB)
• Number of poles: 1P (single pole)
• Rated current (In): 10 A
• Trip curve: Type B
• Short-circuit breaking capacity (Icn): 10 kA
• Rated voltage (Ue): 230 V AC
• Rated insulation voltage (Ui): 500 V
• Rated impulse withstand voltage (Uimp): 4 kV
• Frequency: 50/60 Hz
• Mounting: DIN rail (EN 60715)
• Standards: IEC/EN 60898-1, VDE
• Energy limiting class: 3
• Terminal capacity: 1–25 mm² (solid/stranded)
• Tightening torque: 2.5 Nm
• Protection degree: IP20 (terminals), IP40 (front)
• Operating temperature: -25°C to +55°C
• Electrical endurance: 10,000 cycles
• Mechanical endurance: 20,000 cycles
• Modular width: 1 module (18 mm)
• Indicators: ON/OFF position indicator, trip indicator

Final note

With its high breaking capacity, VDE certification, and reliable performance, the Schelinger A02-G9-1P-B10 is a smart choice for electricians and installers who demand safety and longevity from every component.
