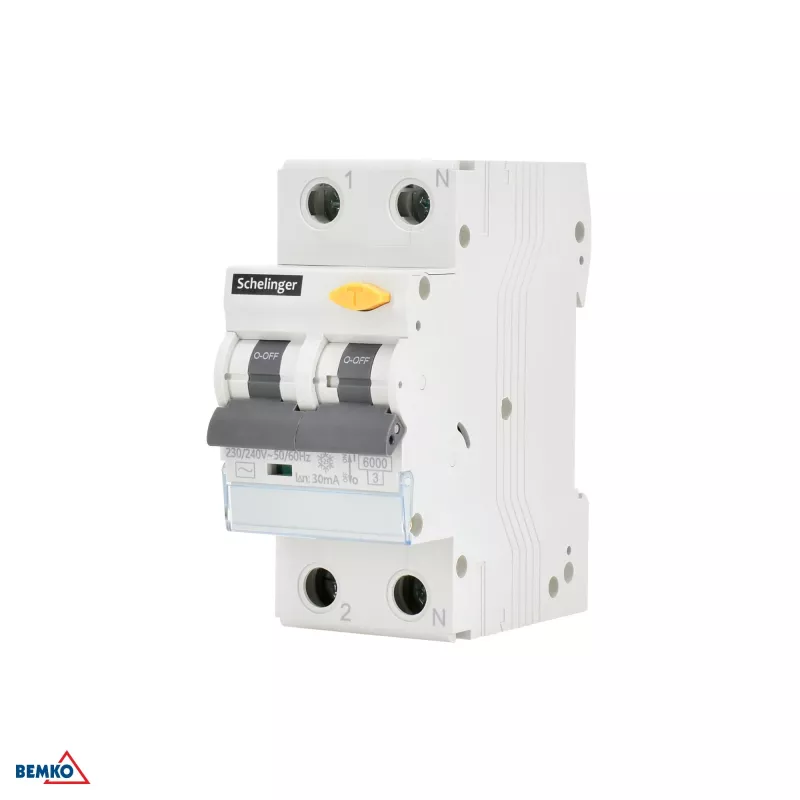

SCHELINGER RCBO 2P B 16A 30mA Tipo AC Interruttore differenziale con protezione magnetotermica

The SCHELINGER RCBO 2P B 16A 30mA Type AC is a high-quality residual current breaker with overcurrent protection, designed for reliable electrical safety in residential and commercial installations. This 2-pole device combines overcurrent and residual current protection in a single compact unit, saving space in distribution boards.

Advantages

Combined overcurrent and residual current protection in one device reduces installation time and panel space. Type B tripping characteristic ensures fast response to short circuits and overloads. Type AC residual current detection protects against sinusoidal AC fault currents. Rated short-circuit capacity of 6 kA provides robust protection for most installations.

Suitable for

• Residential electrical panels
• Commercial building distribution boards
• Protection of circuits supplying sockets, lighting, and general appliances
• Upgrading existing installations to meet modern safety standards

Key specifications

• Product Type: Residual Current Breaker with Overcurrent Protection (RCBO)
• Number of Poles: 2P (2-Pole)
• Rated Current (In): 16 A
• Rated Residual Operating Current (IΔn): 30 mA
• Tripping Characteristic: Type B
• Residual Current Type: Type AC
• Rated Voltage (Un): 230 V AC
• Rated Frequency: 50/60 Hz
• Rated Short-Circuit Capacity (Icn): 6 kA
• Mounting Type: DIN Rail
• Number of Modules: 2
• Degree of Protection: IP20
• Terminal Capacity: 1-25 mm²
• Operating Temperature: -25°C to +40°C
• Standards: IEC/EN 61009-1
• Electrical Life: ≥ 10,000 cycles
• Mechanical Life: ≥ 20,000 cycles
• Connection Type: Screw Terminals

Recommendations

For optimal safety, always install RCBOs in accordance with local electrical regulations. Ensure the rated current and residual current settings match the circuit requirements. This device is suitable for use in TN, TT, and IT systems.
