Schletter 129001-003 Eco 05 connettore completo (129001-003)

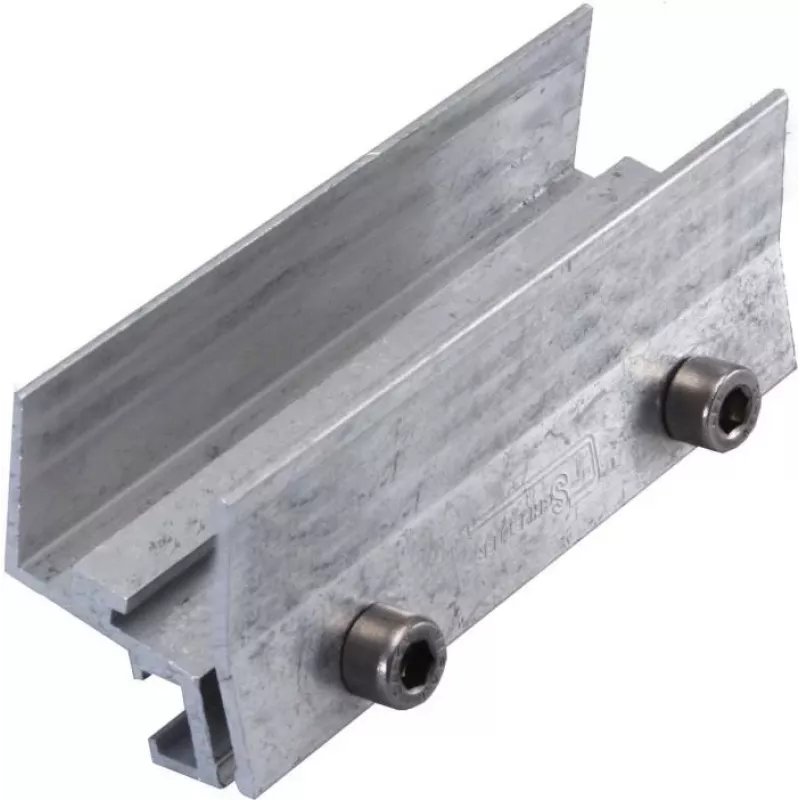

PV installers use the Schletter Eco 05 Connector to join two Eco 05 mounting rails end-to-end on residential or commercial solar arrays. The connector slides into the rail profile and fastens with two M8x20 hexagon head screws and self-locking nuts, creating a rigid, corrosion-resistant joint that keeps the rail line straight and stable.

Key specifications

• Product type: PV rail connector
• Compatible system: Schletter Eco 05 mounting system
• Function: Connects two Eco 05 rails end-to-end
• Material: Aluminum
• Fastening method: Screw connection
• Included fasteners: 2x M8x20 hexagon head screws, 2x M8 self-locking nuts
• Colour: Silver (natural aluminum)
• Assembly status: Complete (pre-assembled with fasteners)

Why choose it

The Eco 05 Connector is engineered specifically for the Eco 05 rail profile, ensuring a precise fit and reliable load transfer. Its aluminum construction provides high corrosion, UV, and weather resistance, making it suitable for long-term outdoor exposure on both roof and ground-mounted systems.

Ideal use cases

• Extending Eco 05 rails for long module rows
• Creating continuous rail runs on pitched roofs
• Ground-mounted solar farms using Eco 05 rails
• Repairing or modifying existing Eco 05 installations

Good to know

The connector is supplied complete with fasteners, so no additional hardware is needed for installation. It is part of the Schletter Eco series and is intended for use with Eco 05 rails only.
