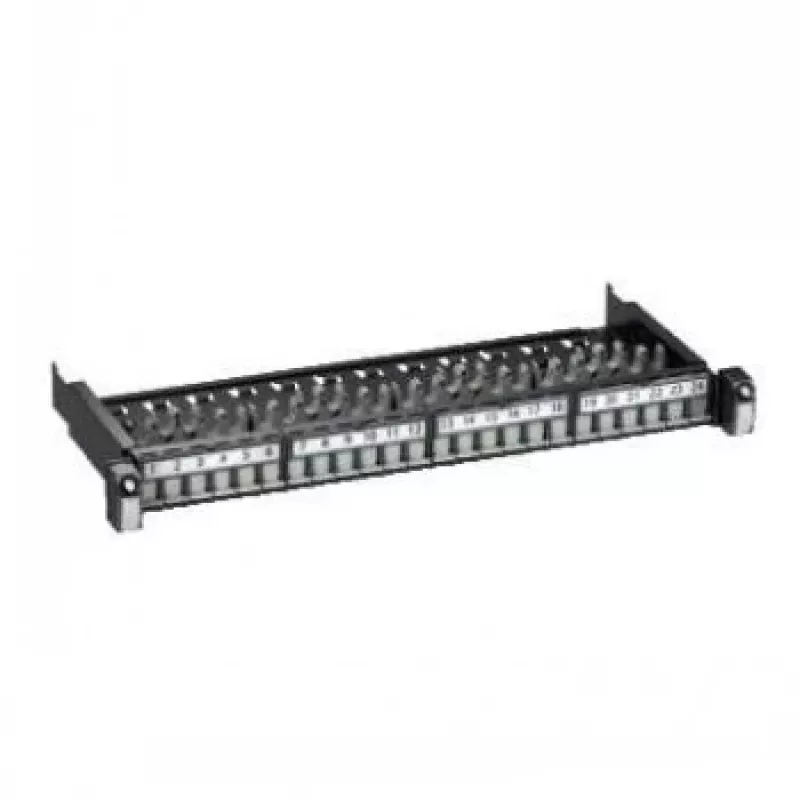

Schneider Electric Actassi S1 Patch Panel di Rete 24xRJ45 STP Cat6A 1U Bianco

The Schneider Electric Actassi S1 Network Patch Panel is a high-performance 24-port shielded patch panel designed for structured cabling in data centers and enterprise networks. It supports Cat6A (Augmented Category 6) performance, ensuring reliable 10GBASE-T transmission over twisted-pair copper cabling. The panel features a robust 1U 19-inch rack-mountable steel chassis with a white front panel, integrated grounding bar, and rear cable management for organized installations.

Advantages

This patch panel delivers superior signal integrity and reduced crosstalk thanks to its STP (Shielded Twisted Pair) design and IDC termination blocks supporting T568A/B wiring schemes. The integrated grounding bar simplifies bonding to the rack ground, while the included rear cable management keeps cables tidy and reduces strain. With 750 mating cycles and 200 termination cycles, it offers long-term reliability in high-density environments.

Suitable for

• Data center structured cabling
• Enterprise network closets
• Telecommunications rooms
• 10GBASE-T deployments over Cat6A

Key specifications

• Product Type: Network Patch Panel
• Series: Actassi S1
• Number of Ports: 24
• Connector Type: RJ45
• Shielding: STP (Shielded Twisted Pair)
• Performance Category: Cat6A
• Rack Unit: 1U
• Mounting: 19-inch Rack
• Colour: White
• Termination: IDC, T568A/B
• Material: Steel chassis, PC/ABS front
• Grounding: Integrated grounding bar
• Rear cable management: Included
• Operating Temperature: -10 to 60 °C
• Storage Temperature: -40 to 70 °C
• Humidity: 10-90% non-condensing
• Mating Cycles: 750
• Termination Cycles: 200
• Standards: ISO/IEC 11801, EN 50173-1, TIA/EIA-568-C.2, IEC 60603-7-51

Recommendations

For optimal performance, pair this patch panel with Schneider Electric Actassi S1 Cat6A STP patch cables and ensure proper grounding of the rack. Ideal for high-speed data networks requiring minimal interference.
