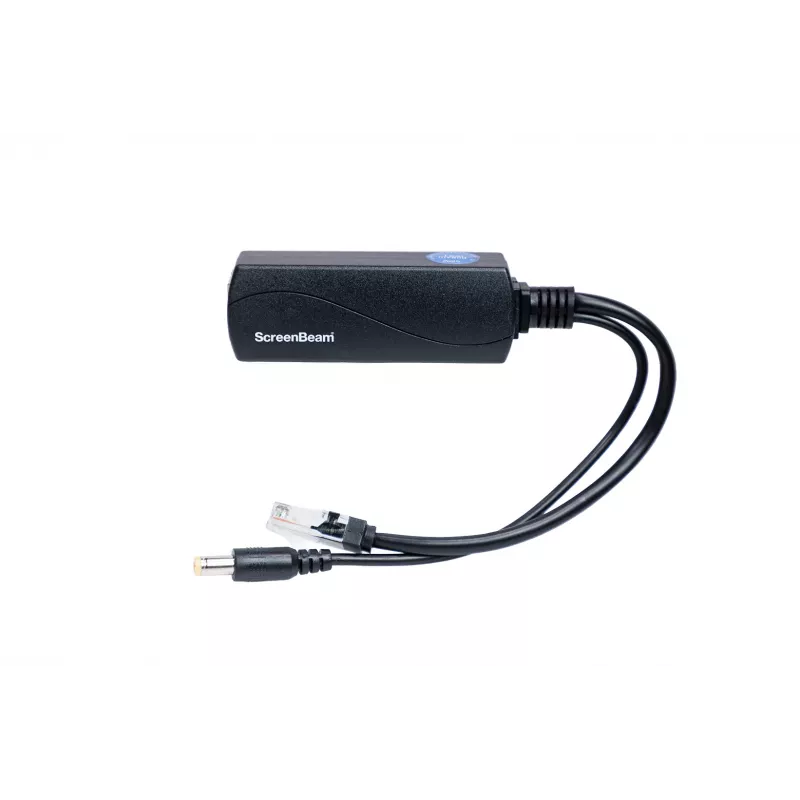

ScreenBeam Adattatore PoE - Iniettore Gigabit Ethernet PoE+ IEEE 802.3at

The ScreenBeam PoE Adapter is a high-performance Power over Ethernet injector designed to deliver reliable power and data connectivity to ScreenBeam wireless display receivers and other compatible PoE+ devices. Compliant with IEEE 802.3at (PoE+) standard, this adapter provides up to 30W of power over a single Ethernet cable, simplifying installation by eliminating the need for separate power outlets near the device.

Advantages

Simplifies deployment by combining power and data over one cable, reducing clutter and installation costs. Supports Gigabit Ethernet speeds (10/100/1000 Mbps) for high-bandwidth applications. Robust protection features safeguard connected equipment against overload, short-circuit, and over-voltage conditions. Compact and versatile design allows for desktop or wall-mount placement.

Suitable for

• ScreenBeam 1100 Plus and ScreenBeam 1000 EDU wireless display receivers
• Any IEEE 802.3at PoE+ compatible device requiring up to 30W
• Enterprise, education, and conference room environments

Key specifications

• PoE Standard: IEEE 802.3at (PoE+)
• Data Transfer Rate: 10/100/1000 Mbps (Gigabit Ethernet)
• Input Voltage: 100-240V AC, 50/60 Hz
• Output Voltage: 48V DC
• Max Power Output: 30W
• Ports: 1x RJ-45 Data In, 1x RJ-45 Data & Power Out
• Power Pin Assignment: 4-pair (Mode A/B compatible)
• LED Indicators: Power, PoE Status
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• Operating Humidity: 10% to 90% non-condensing
• Certifications: FCC, CE, RoHS
• Enclosure Material: Plastic
• Mounting: Desktop, wall-mountable
• Power Input Connector: IEC C14 (power cord not included)
• Ethernet Cable Requirement: Cat5e or higher

Recommendations

For optimal performance, use with Cat5e or higher Ethernet cables. Ensure the connected device is PoE+ compatible and does not exceed 30W power draw. The adapter is designed for indoor use only.
