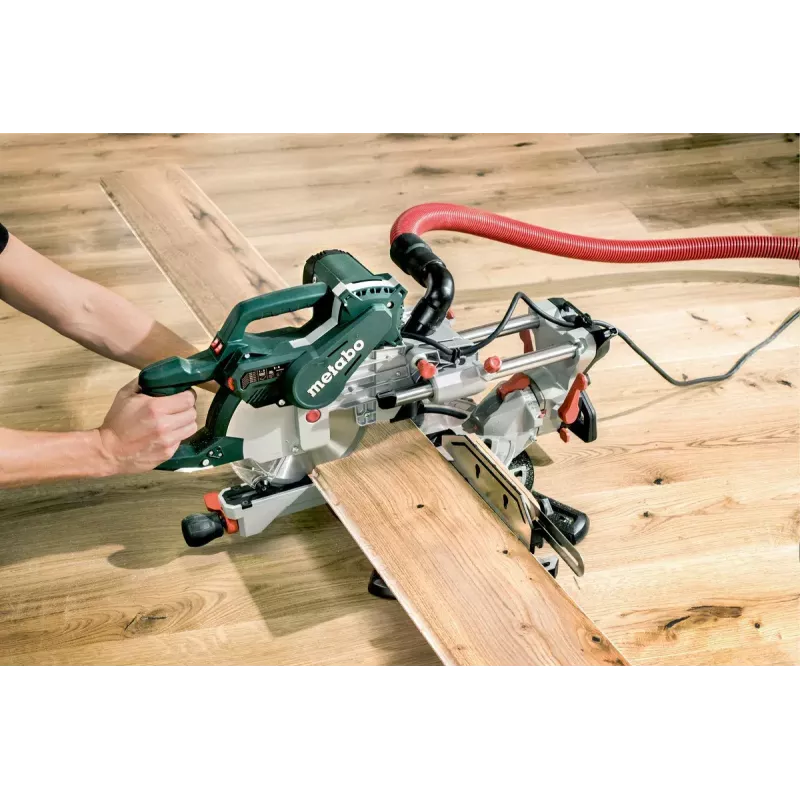

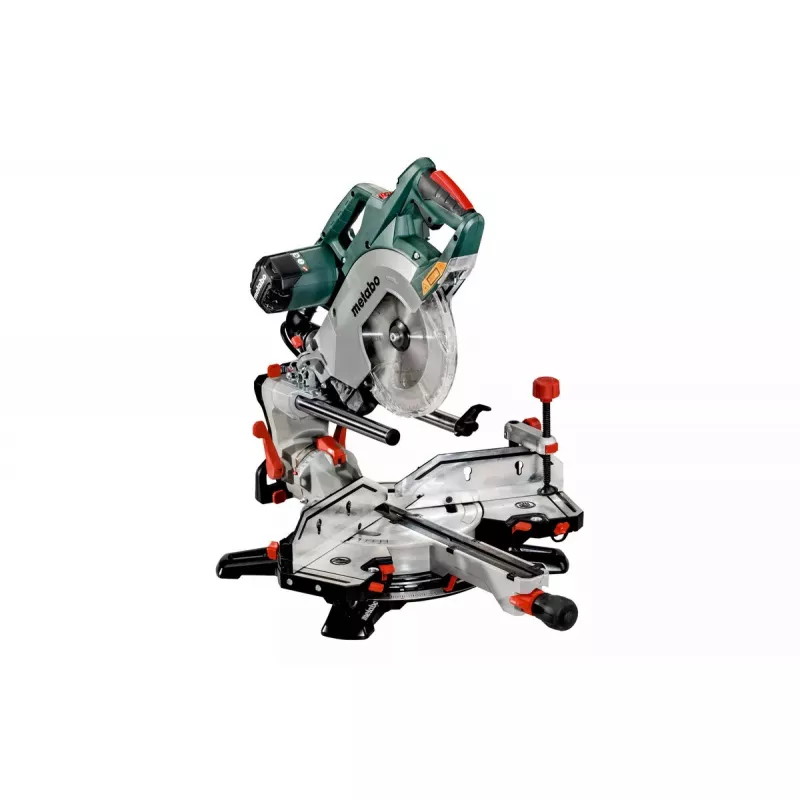

Sega Metabo KGSV 72 XACT SYM

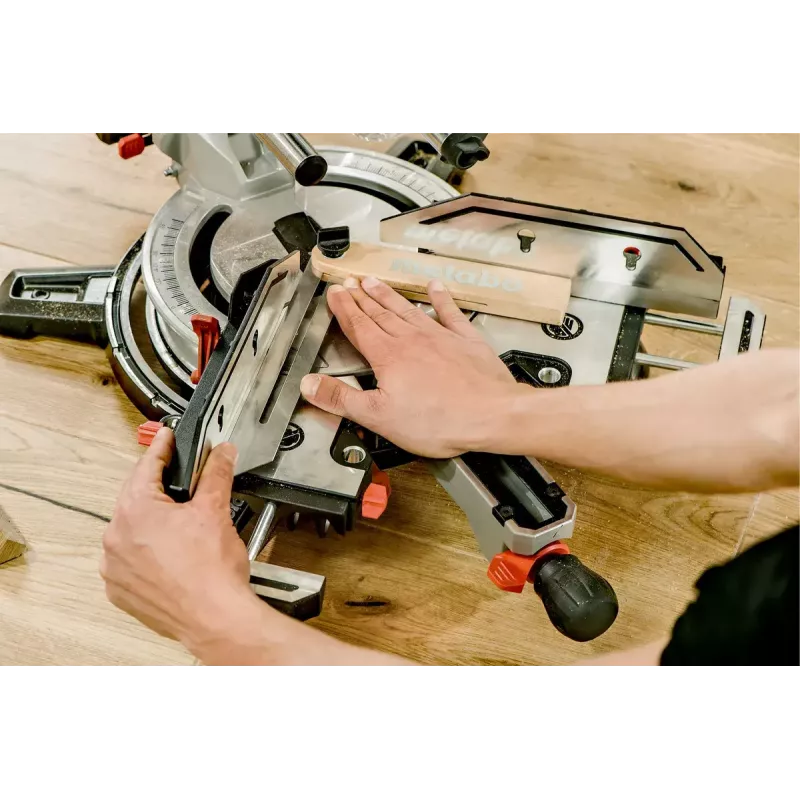

The Metabo KGSV 72 XACT SYM is a mitre saw designed for precise angled and cross cuts in a range of materials. It combines a sliding panel saw function with a skirting saw and a symmetrically adjustable stop system that allows quick transfer of bevel angles to the stop system. The saw offers variable speed control with an idle speed range from 2,200 to 6,300 RPM and is powered by an 1,800 W motor operating on 220–240 V AC. Built for portability, the unit is compact and lightweight with ergonomic carry handles, integrated dust extraction and lighting to support accurate, mobile work on-site.

Advantages

The machine integrates a patented combination of sliding and skirting saw functions, enabling time-saving and accurate mitre cuts without extra angle calculations. A compact sliding traction function permits cutting of wide workpieces up to 305 mm without requiring space behind the saw. A rotating table together with an inclinable saw head on both sides increases cutting flexibility, while a double line laser and bright LED work light improve visibility of the cutting line. Speed control extends the range of applications to materials such as aluminium profiles and plastics. The saw comes fitted with a multi-cut blade for good cutting quality and long tool life in laminate and aluminium, and includes a depth guide and high rear fence profiles for safe, repeatable results.

Suitable for

• Cutting mitres and crosscuts in wood-based panels and skirting boards

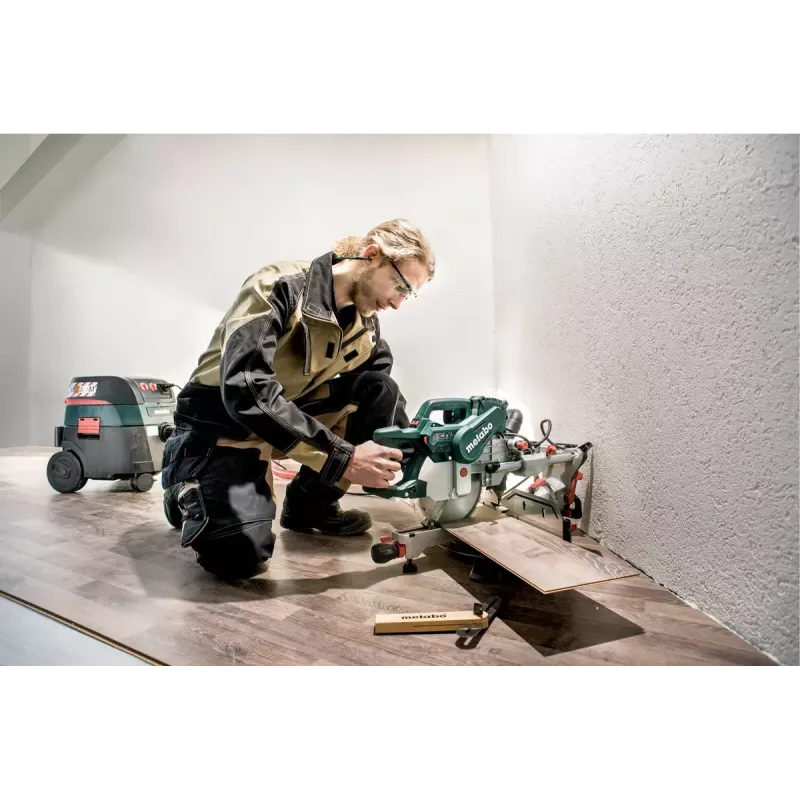

• Trimming laminate flooring and aluminium profiles

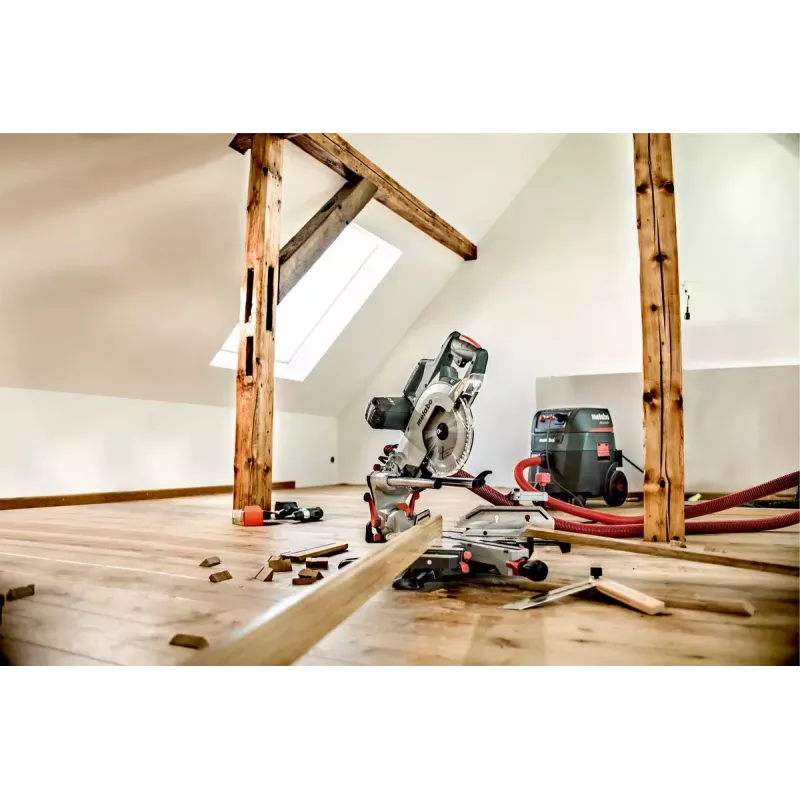

• On-site mobile carpentry and joinery where compact, portable tools are required
• Applications requiring precise repeatable angled cuts and groove creation

Key specifications

• Input power: 1800 W
• AC input voltage: 220–240 V
• Idle speed range: 2200–6300 RPM (variable speed control)
• Bevel setting: up to 47° to the left
• Maximum workpiece width with compact sliding function: up to 305 mm
• Blade diameter: 216 mm
• Dimensions (W×D×H): 660 × 540 × 415 mm

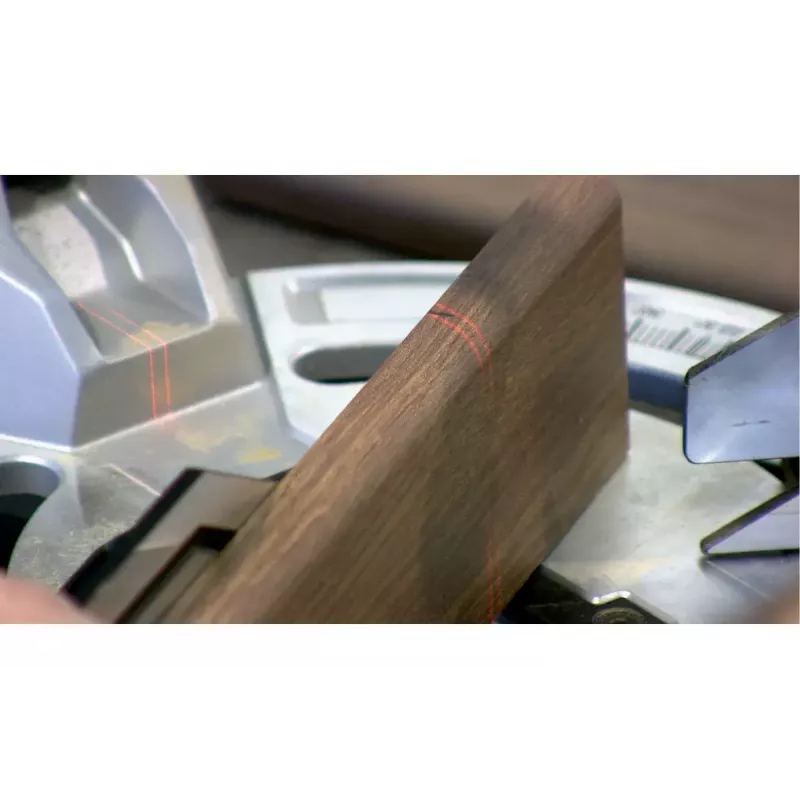

• Double line laser and bright LED work light for cutting line visibility

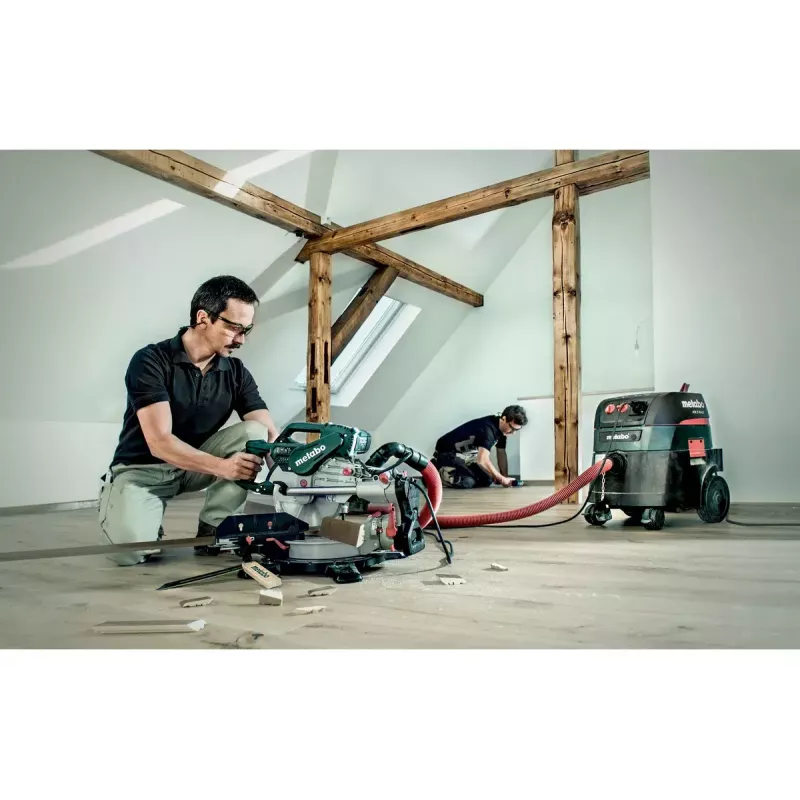

• Integrated dust extraction with dust scoop and high rear fence profiles

How to use

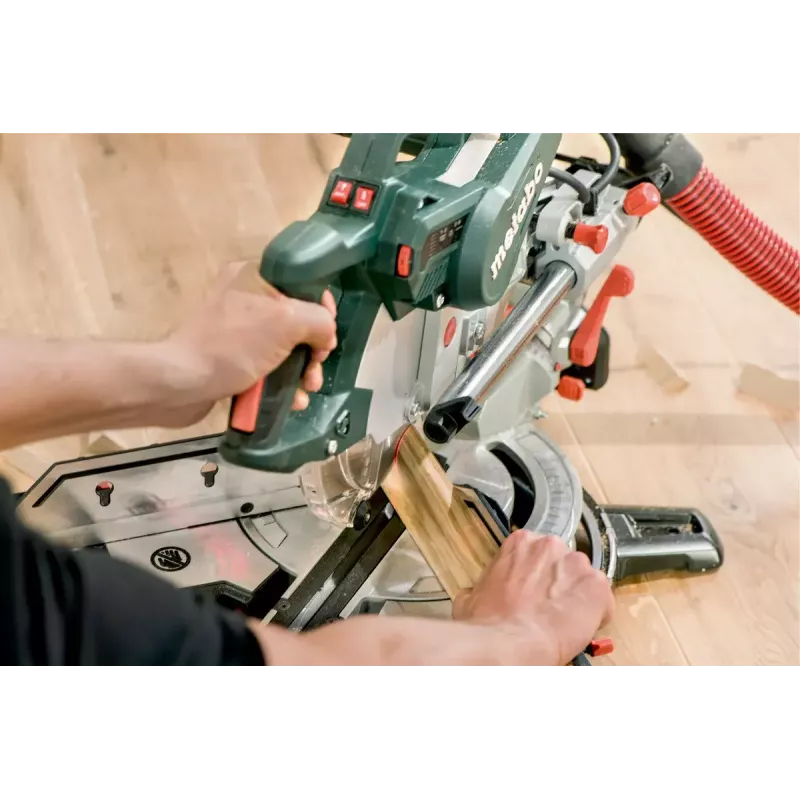

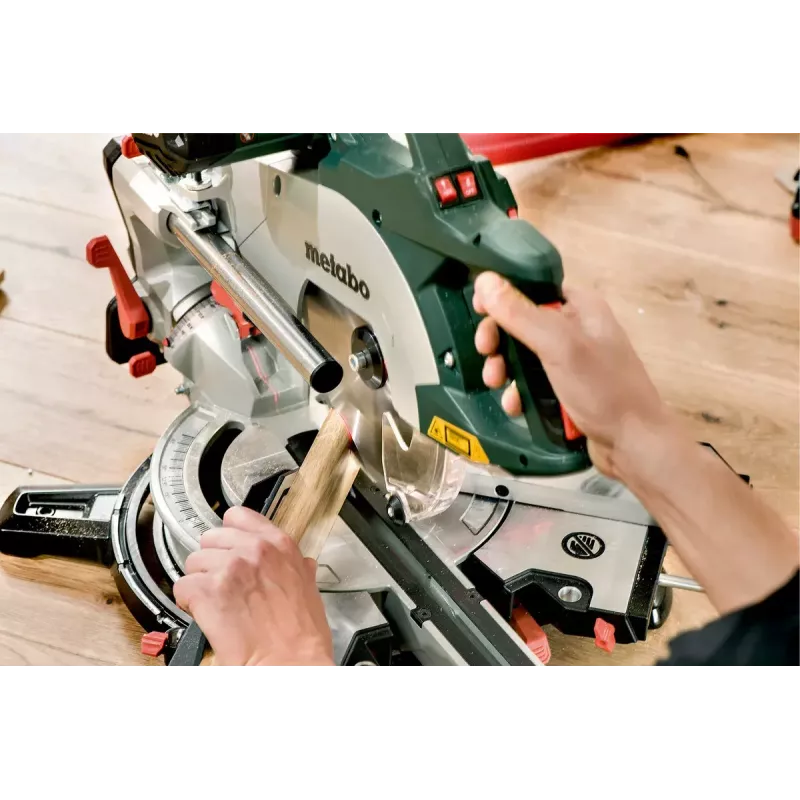

Secure the workpiece against the fence and set the required mitre or bevel angle using the rotating table and inclinable saw head; common angles can be set quickly using the machine's stop points. Adjust the speed control to suit the material—lower speeds for aluminium and plastics, higher speeds for typical wood-based panels. Use the sliding traction function to process wider panels up to 305 mm without needing space behind the saw. Align the cut visually with the double line laser and switch on the LED work light if needed. Activate the motor, make the cut following safe operating procedures, and use the integrated dust extraction to reduce debris at the work area. For blade changes, use the spindle lock to remove and fit blades without dismantling the pendulum guard.

Recommendations

Always wear appropriate eye, hearing and dust protection when operating the saw. Confirm the chosen blade type and speed are suitable for the material to be cut (the supplied multi-cut blade is suitable for laminate and aluminium profiles). Keep the extraction port connected to a dust extraction system where possible, and ensure the workpiece is firmly supported and clamped to prevent movement during cutting.
