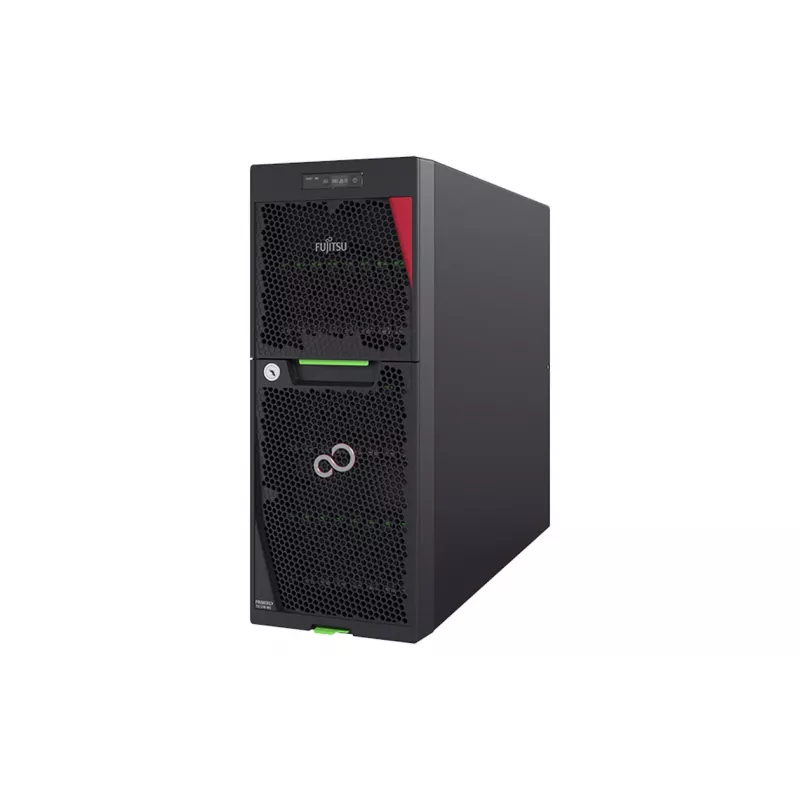

Server tower Fujitsu PRIMERGY TX1330 M5 Intel Xeon E E-2388G 3,2 GHz 32 GB DDR4-SDRAM 500 W

The Fujitsu PRIMERGY TX1330 M5 tower server with Intel Xeon E-2388G 3.2 GHz processor and 32 GB DDR4 memory delivers expandable compute and storage for small and medium business workloads. The server supports up to 24x 2.5-inch or 12x 3.5-inch drives, hardware RAID, dual Gigabit LAN and Trusted Platform Module (TPM 2.0), and is built in a tower chassis with a 500 W power supply for on-premise deployments.

Advantages

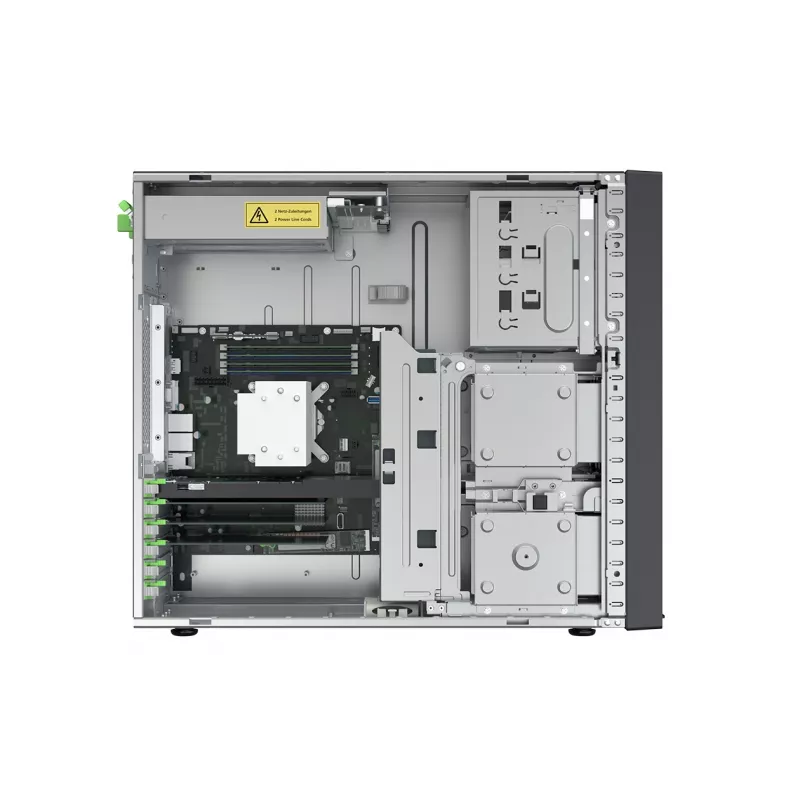

This model provides high expandability with four PCIe Gen4/3 slots (two Gen4) for RAID, networking or graphics upgrades, plus a rack conversion kit for scale-out deployment. It includes M.2 and dual MicroSD options for reliable software boot, USB 3.2 Gen2 ports for faster peripheral connectivity, and hot-plug components for easier servicing. Security features include a 3-way lock and TPM 2.0. Energy-efficient redundant power supplies and Advanced Thermal Design reduce noise and improve operational reliability.

Suitable for

• Small and medium business file, application and database servers
• Virtualized standard business workloads and small hypervisor hosts
• On-premise storage servers requiring large drive capacity and RAID
• Edge deployments requiring low-noise, reliable operation

Key specifications

• Processor family: Intel Xeon E (model E-2388G, 3.2 GHz)
• Internal memory: 32 GB DDR4 (up to 128 GB, 4x DIMM slots)

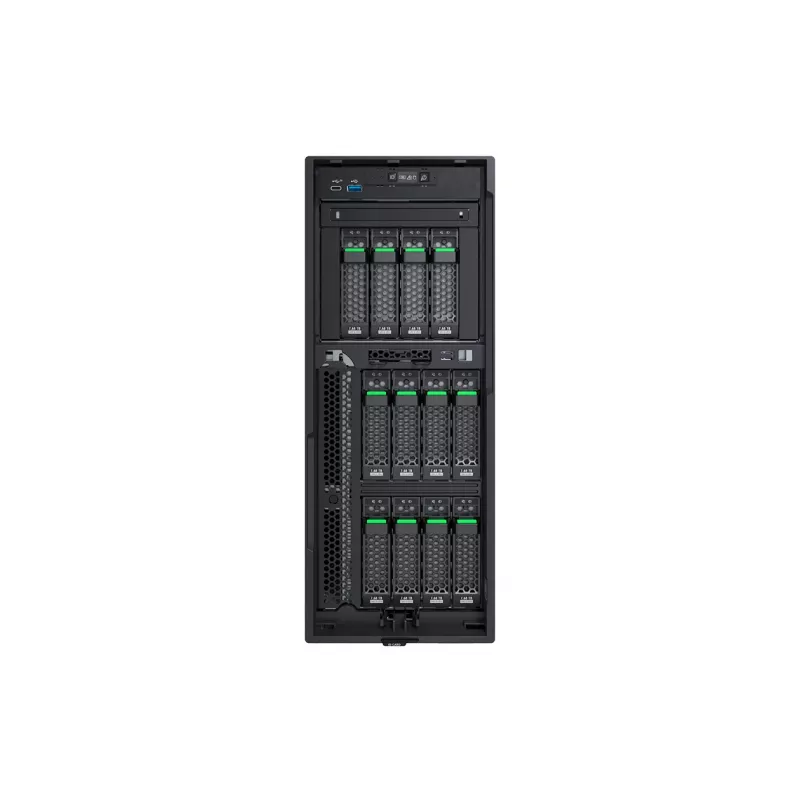

• Storage bays: up to 24x 2.5" or 12x 3.5" drives
• RAID support: hardware RAID (expandable via PCIe cards)
• Network: dual Gigabit LAN (expandable via PCIe)
• Security: TPM 2.0, 3-way lock

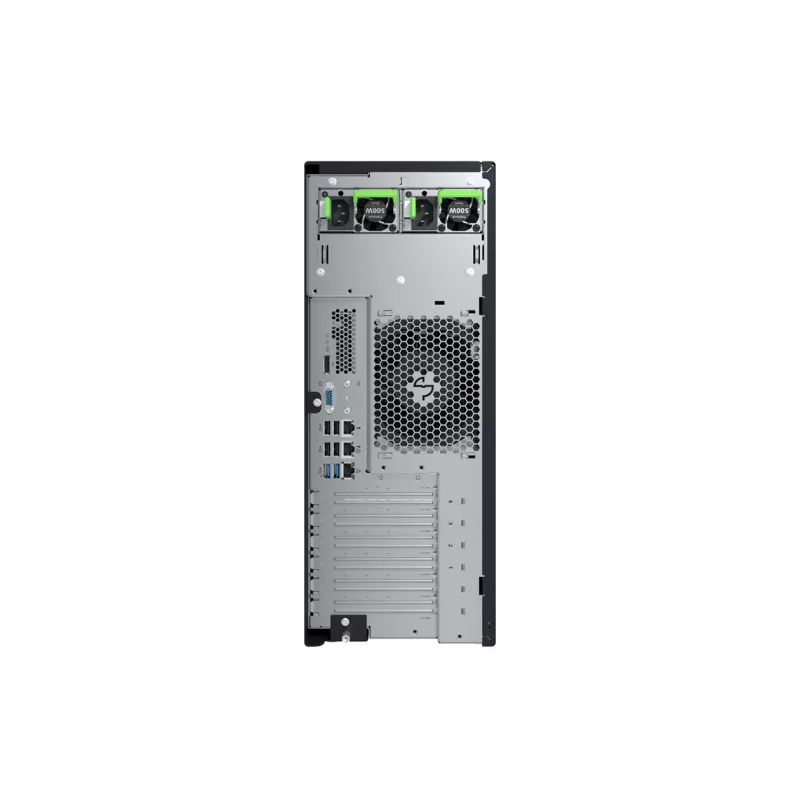

• Power supply: 500 W (redundant options available)
• Chassis: Tower, colour: black; weight: 26.4 kg

How to use

Install the server in a suitable, ventilated on-premise location or convert it to a rack using the available rack upgrade kit. Populate drive bays and DIMM slots according to workload and storage needs; configure RAID using the onboard controller or an add-in RAID card via PCIe. Connect network interfaces to your LAN and configure IP settings. Use M.2 or MicroSD for system boot media if desired, and attach peripherals to USB 3.2 Gen2 ports. Manage the system with iRMC S6 or Fujitsu Infrastructure Manager (ISM) for firmware updates, monitoring and remote management.

Recommendations

For reliable operation, deploy in a temperature-controlled environment, enable RAID and backup strategies for critical data, and use redundant power supply options for higher availability. Keep firmware and iRMC S6/ISM tools up to date and follow Fujitsu service guidelines for hot-plug maintenance.
