Set extender Mini HDMI DIGITUS, Full HD 50 m CAT6/6A/7, alimentazione tramite cavo Micro-USB, nero

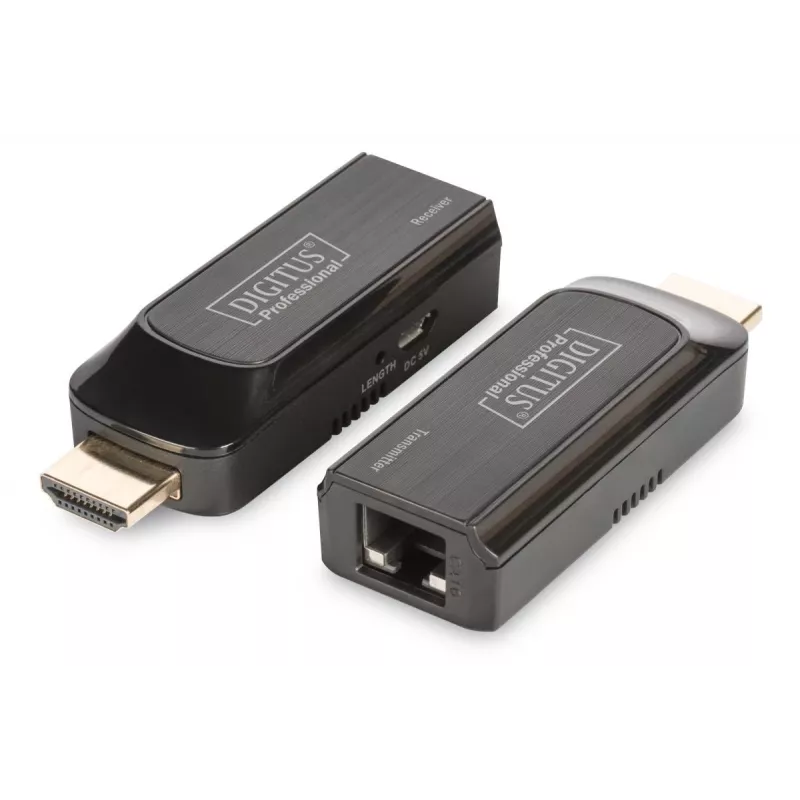

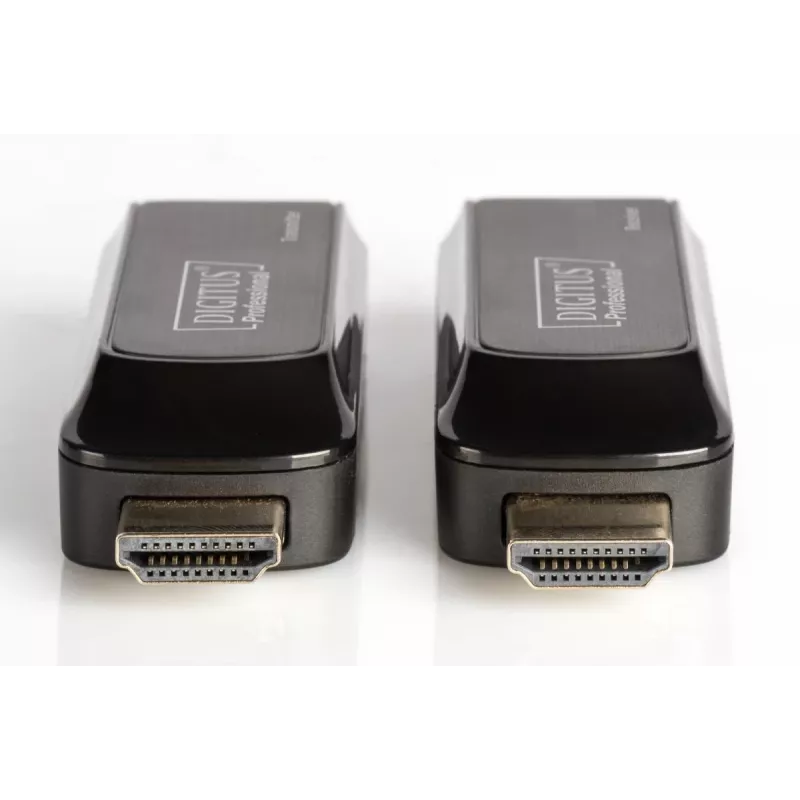

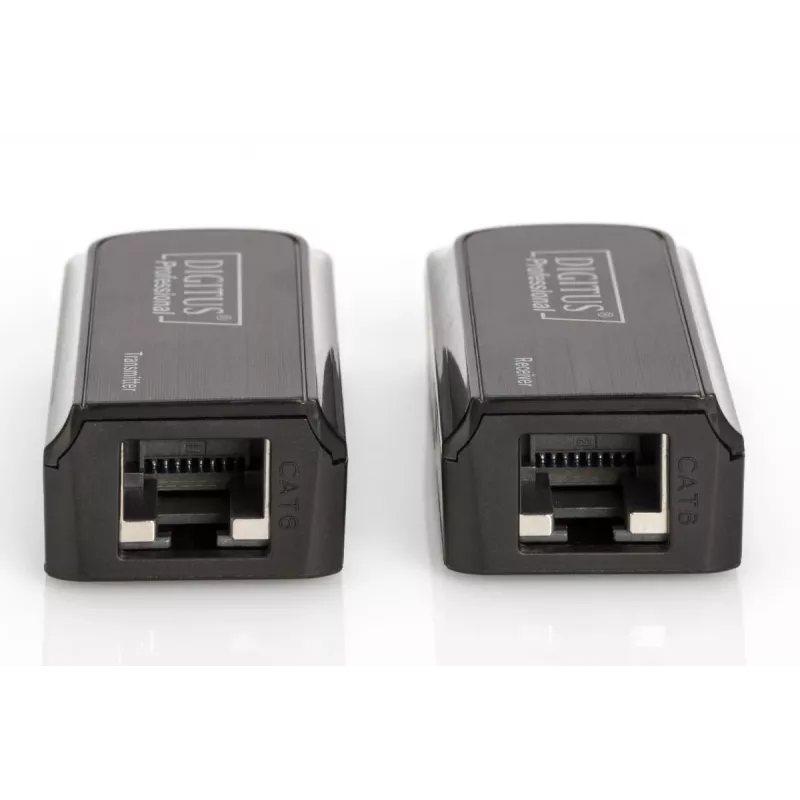

The Digitus DS-55203 Mini HDMI Extender Set extends HDMI connections up to 50 m using a single network cable (CAT 6/6A/7) between a transmitter and a receiver. The compact set supports Full HD video at up to 1080p/60Hz and is powered via a Micro USB cable; only one unit requires an external USB power source. Its small form factor allows discreet placement in a variety of environments.

Advantages

The extender set enables HDMI transmission over long distances without the need for long HDMI cables, preserving Full HD 1080p/60Hz signal quality. It uses a standard network cable (CAT 6/6A/7) for the link between transmitter and receiver, supports Power over Ethernet (PoE) so only one unit needs an external Micro USB power supply, and features an ultra-compact design for flexible installation. Power can be supplied from a PC/laptop USB port or a USB charger.

Suitable for

• Extending HDMI from media players, PCs or set-top boxes to distant displays
• Home theater layouts where long HDMI runs are impractical
• Small conference rooms and classrooms requiring clean, distant screen placement
• Digital signage and kiosks using a remote display up to 50 m away

Key specifications

• Type: Network transmitter & receiver
• Maximum resolution: 1920 x 1080 (1080p/60Hz)
• Maximum transfer distance: up to 50 m (using CAT 6/6A/7)
• Power supply: Micro USB (one unit), supports PoE between units
• Colour: Black
• Manufacturer model: DIGITUS DS-55203

How to use

Connect the HDMI source to the transmitter unit and the display to the receiver unit. Link the two units with a CAT 6/6A/7 network cable up to 50 m in length. Supply power to one unit using the included Micro USB cable connected to a PC/laptop USB port, a USB charger or another 5 V USB power source; the receiver or transmitter will receive power via PoE. Verify that the display is set to the correct HDMI input and the source outputs at up to 1080p/60Hz.

Recommendations

For reliable performance, use a high-quality shielded CAT 6/6A/7 cable and keep cable runs away from strong electromagnetic interference sources. Ensure source and display devices are configured for 1920 x 1080 at 60 Hz for optimal results.
