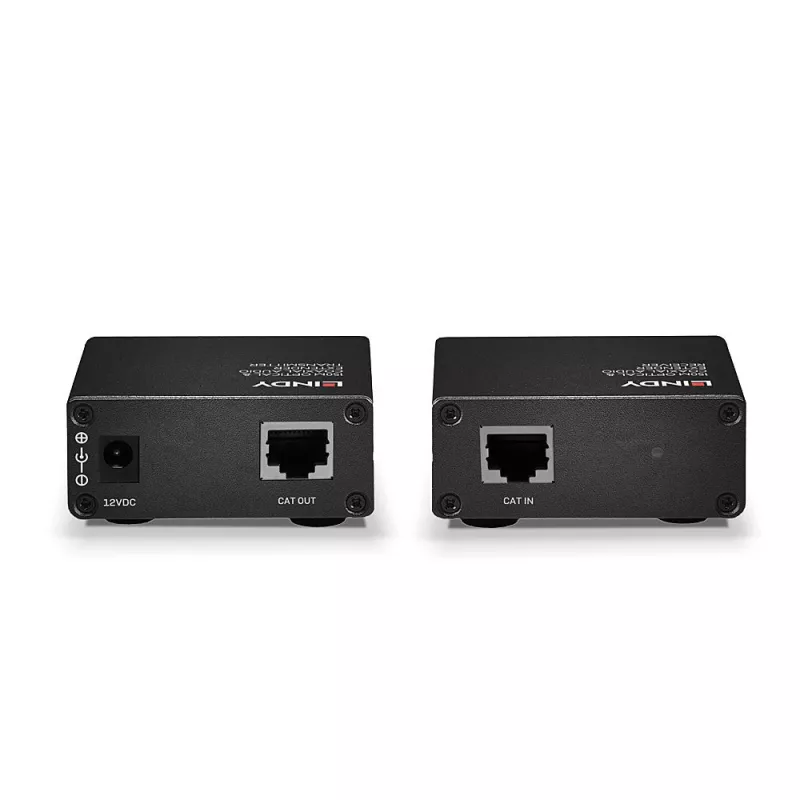

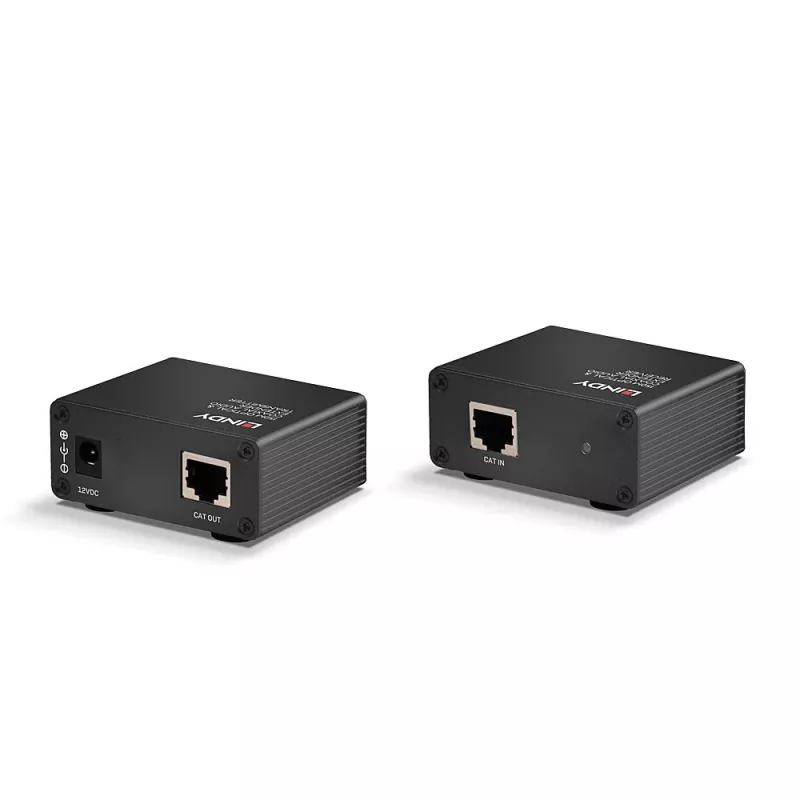

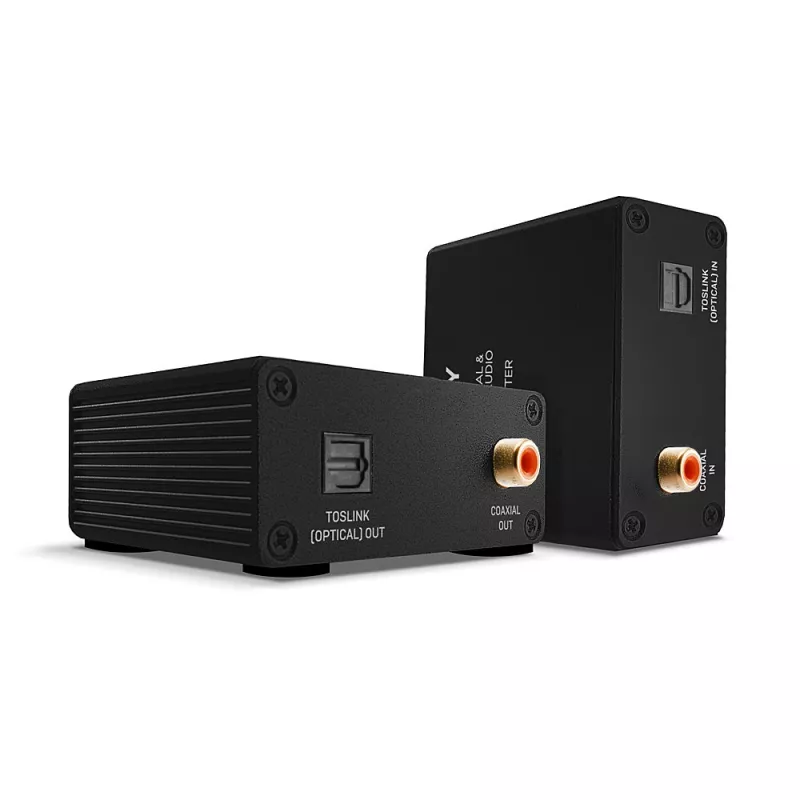

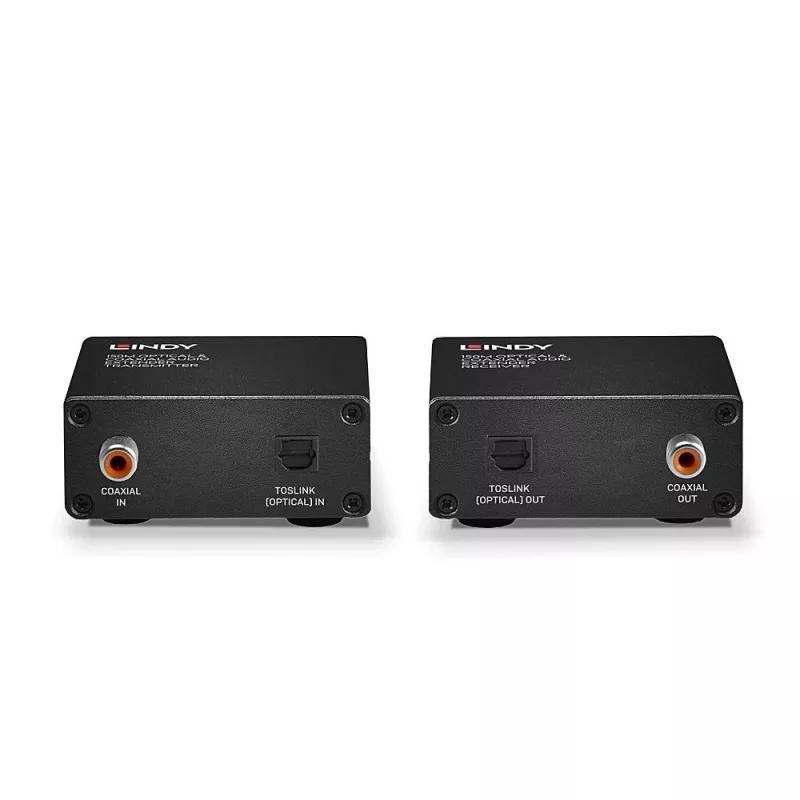

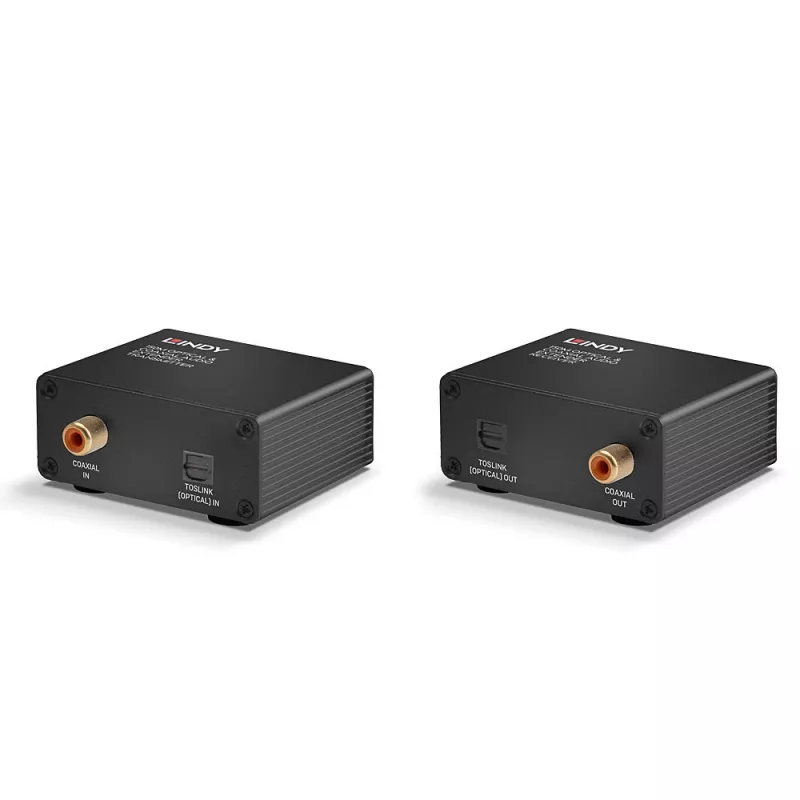

Trasmettitore e ricevitore AV Lindy 150m Cat.6 TosLink e coassiale extender audio digitale

The Lindy 150m Cat.6 TosLink (Optical) and Coaxial Digital Audio Extender is a high-quality solution for extending digital audio signals over long distances, using standard network cable. With TosLink (Optical) and coaxial inputs and outputs, this extender can be easily used with a variety of AV source devices including TVs and amplifiers, with speakers or soundbars located at the receiver side.Connected audio can be output simultaneously to provide splitting functionality from a single input, great for smaller audio broadcasting setups in underground railway stations, bus depots or medical facilities. This also allows simple conversion of TosLink and Coaxial signals into their opposing output.

Supporting both stereo and multi-channel audio extension, this extender will allow for impressive three-dimensional surround sound performance to compliment films and games when connected to the audio source device, as well as crystal clear speech from user generated audio. This provides the user with an excellent point to point solution, ideal for use in immersive residential cinema rooms or creating a more attractive and enticing retail experience.

PoC (Power over Cable) functionality, the supply of power and data signals over Cat.6 cable on a point to point connection between the transmitter and receiver also brings additional flexibility as only one power supply is required at the transmitter unit, ideal when power outlets are limited at the receiver end of the installation.

Please note: simultaneous output is only possible when identical 96KHz sample rates are used

Lindy 150m Cat.6 TosLink (Optical) and Coaxial Digital Audio Extender. Type: AV transmitter & receiver, Cable types supported: Cat5e, Cat6, Maximum transfer distance: 150 m. Connectivity technology: Wired, Digital audio optical input type: TOSLINK. Operating voltage (transmitter): 12 V, Current: 1.25 A. Receiver dimensions (WxDxH): 65.9 x 26.9 x 53.1 mm, Receiver weight: 168 g, Transmitter dimensions (WxDxH): 65.9 x 26.9 x 53.1 mm. Package width: 190 mm, Package depth: 60 mm, Package height: 145 mm

How to use

Connect the digital audio source to the transmitter using either the TosLink optical cable or a coaxial S/PDIF cable. Run a Cat5e or Cat6 cable between the transmitter RJ-45 port and the receiver RJ-45 port up to 150 m. Power the transmitter with the supplied 12 V DC adapter; the receiver will receive power via PoC over the Cat cable. Connect the receiver outputs to speakers, soundbars or an amplifier using TosLink or coaxial cables as required. Ensure source sample rates match when using simultaneous outputs.

Recommendations

For best performance use quality shielded Cat6 cable and avoid running audio cable parallel to high-voltage power lines. Verify that connected devices support the desired multi-channel formats and matching sample rates (96 kHz) if you require simultaneous TosLink and coaxial outputs.
