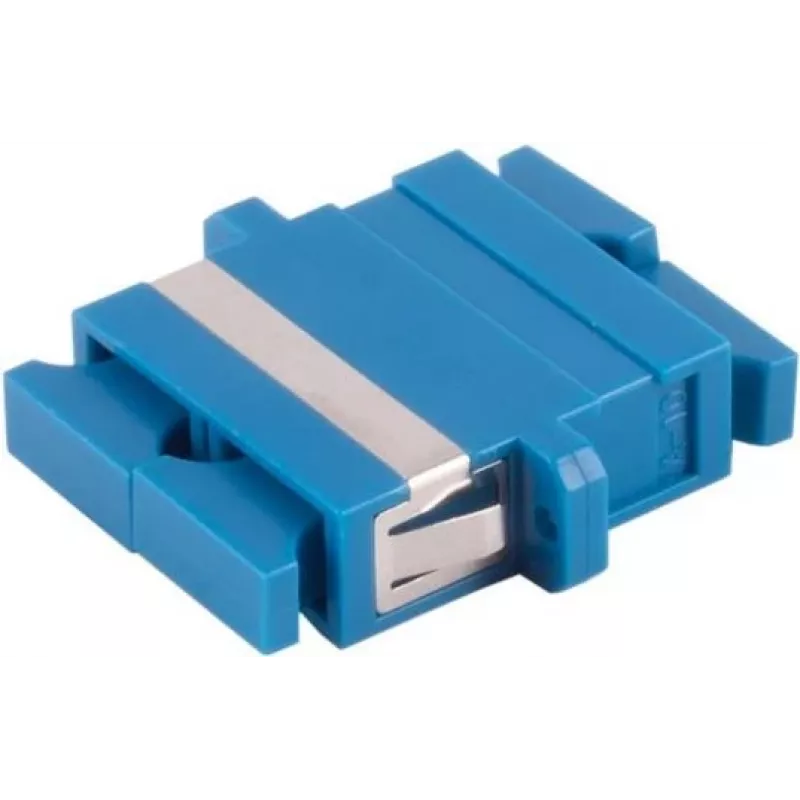

SHIVERPEAKS BASIC-S accoppiatore fibra ottica SC-SC duplex monomodale, blu BS07-60060

With a return loss of ≥50 dB (UPC) and insertion loss ≤0.3 dB, this SHIVERPEAKS BASIC-S coupler ensures your singlemode fiber links maintain signal integrity across every connection. The SC-SC duplex adapter is built around a precision ceramic sleeve, delivering reliable alignment for two fibers simultaneously in high-density patching environments.

Overview

The BS07-60060 is a flange-mount fiber optic coupler designed for panel integration in telecommunications, data networks, FTTH, and LAN infrastructures. Its blue plastic housing provides instant visual identification, while the duplex configuration supports two singlemode fibers in one compact unit. The adapter accepts standard SC connectors on both sides, making it a universal fit for existing cabling systems.

What stands out

• Ceramic sleeve ensures precise ferrule alignment and long-term stability
• Duplex design handles two fibers simultaneously, saving panel space
• Flange mount allows secure fixing in patch panels, wall plates, or enclosures
• Low insertion loss of ≤0.3 dB preserves optical power budget
• High return loss of ≥50 dB (UPC) minimizes reflections for sensitive transceivers
• Mating durability over 1000 cycles for repeated reconnections
• Operating temperature range from -20°C to +70°C suits diverse environments
• Compliant with RoHS and REACH standards

Technical details

• Connector type: SC-SC (duplex, two fibers)
• Fiber mode: Singlemode
• Sleeve material: Ceramic
• Housing material: Plastic
• Colour: Blue
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 50 dB (UPC)
• Mounting type: Flange / panel mount
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Mating durability: > 1000 cycles
• Standards compliance: RoHS, REACH
• Series: BASIC-S

Our verdict

For network installers and data center technicians, the SHIVERPEAKS BS07-60060 delivers dependable singlemode connectivity in a compact, panel-ready form. Its ceramic sleeve and low-loss performance make it a solid choice for critical fiber links where every decibel counts.
