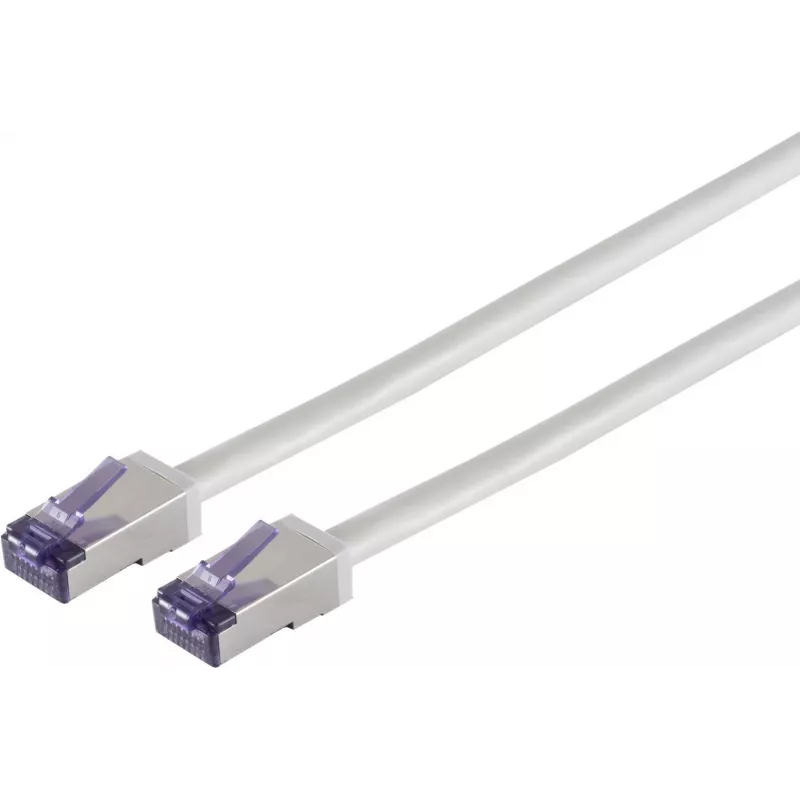

SHIVERPEAKS S/CONN maximum connectivity cavo patch Cat. 6A Flex S/FTP, 10 m, grigio 08-28070

This Cat. 6A patch cable delivers 10 Gigabit Ethernet performance with exceptional flexibility, thanks to its stranded S/FTP construction and LSZH jacket. The grey 10-meter length is ideal for connecting devices in offices, data centers, or home networks where reliable high-speed data transfer is essential.

Advantages

The S/FTP shielding (screened foiled twisted pair) provides superior protection against electromagnetic interference and crosstalk, ensuring stable connections even in electrically noisy environments. The stranded copper conductors make the cable highly flexible, allowing for easy routing around corners and through cable management systems without compromising signal integrity. The LSZH (Low Smoke Zero Halogen) jacket enhances safety by emitting low smoke and no toxic halogens in the event of a fire, making it suitable for public buildings and enclosed spaces. Gold-plated contacts resist corrosion and maintain optimal conductivity over time, while the snagless molded boots protect the locking tabs during installation and removal.

Suitable for

• 10GBASE-T Ethernet networks requiring Cat. 6A performance up to 500 MHz
• Power over Ethernet applications (PoE, PoE+, and 4PPoE/PoE++) for devices such as IP cameras, wireless access points, and VoIP phones
• High-density patch panels and network cabinets where flexibility and slim profile are beneficial
• Environments with stringent fire safety regulations, such as schools, hospitals, and commercial buildings

Key specifications

• Cable type: Cat. 6A S/FTP patch cable (PiMF)
• Length: 10.0 m
• Colour: Grey
• Connectors: RJ45 male to RJ45 male, gold-plated contacts (50µ")
• Data transfer rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Conductor: Stranded copper, AWG 26/7
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Outer diameter: Approx. 6.0 - 6.5 mm
• Operating temperature: -20°C to +60°C
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2, RoHS, CE

Recommendations

For optimal performance, avoid bending the cable beyond its specified bend radius and use appropriate cable management to prevent stress on connectors. This cable is ideal for installations where both high bandwidth and flexibility are required, such as connecting servers to switches or workstations to wall outlets in modern office environments.
