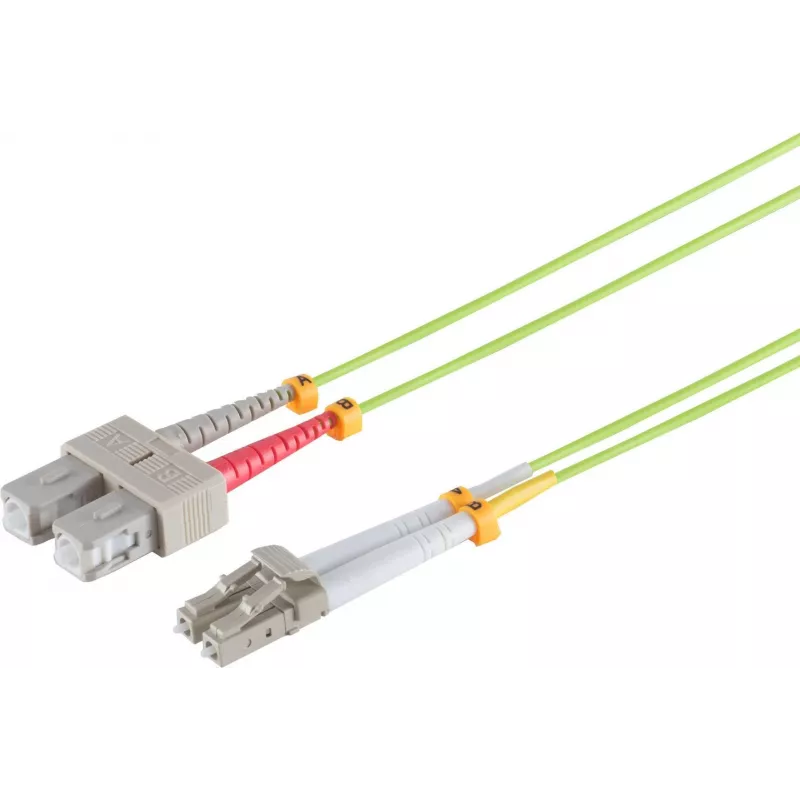

SHIVERPEAKS S/CONN maximum connectivity cavo patch in fibra ottica OM5 LC/SC duplex multimodale, 50/125µm, verde lime, 5m 07-530515

With an effective modal bandwidth of 4700 MHz·km at 850nm, this OM5 fiber patch cable delivers exceptional performance for high-speed multimode networking. The SHIVERPEAKS S/CONN maximum connectivity cable features LC to SC duplex connectors, a 50/125µm core/cladding diameter, and a lime green LSZH jacket, making it ideal for data centers and enterprise networks requiring reliable, low-loss connections over 5 meters.

Overview

Engineered for modern multimode fiber applications, this 5-meter patch cable supports short-wavelength division multiplexing (SWDM) and is backward compatible with OM3 and OM4. The duplex configuration with LC and SC connectors provides flexibility for connecting switches, transceivers, and patch panels. The lime green jacket color identifies it as OM5 per industry standards, while the LSZH material ensures low smoke and zero halogen emissions in case of fire.

What stands out

• OM5 grade supports up to 100G Ethernet over short distances using SWDM technology
• Low insertion loss of ≤0.3 dB and high return loss of ≥30 dB for reliable signal integrity
• LSZH jacket is flame-retardant and safe for enclosed spaces
• Duplex LC to SC connectors are widely compatible with networking equipment
• Attenuation of ≤2.3 dB/km at 850nm and 953nm ensures efficient transmission

Technical details

• Fiber type: Multimode OM5, 50/125µm
• Connectors: LC Duplex to SC Duplex
• Cable length: 5.0 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Insertion loss: ≤0.3 dB
• Return loss: ≥30 dB
• Attenuation: ≤2.3 dB/km @ 850nm, ≤2.3 dB/km @ 953nm, ≤0.6 dB/km @ 1300nm
• Effective modal bandwidth: 4700 MHz·km @ 850nm, 2470 MHz·km @ 953nm
• Operating temperature: -20°C to 70°C
• Standards: IEC 60793-2-10 Type A1a.4, TIA-492AAAE, ISO/IEC 11801 OM5

Our verdict

A high-performance OM5 patch cable that meets the demands of next-generation multimode networks, offering low loss, high bandwidth, and safety with its LSZH jacket.
