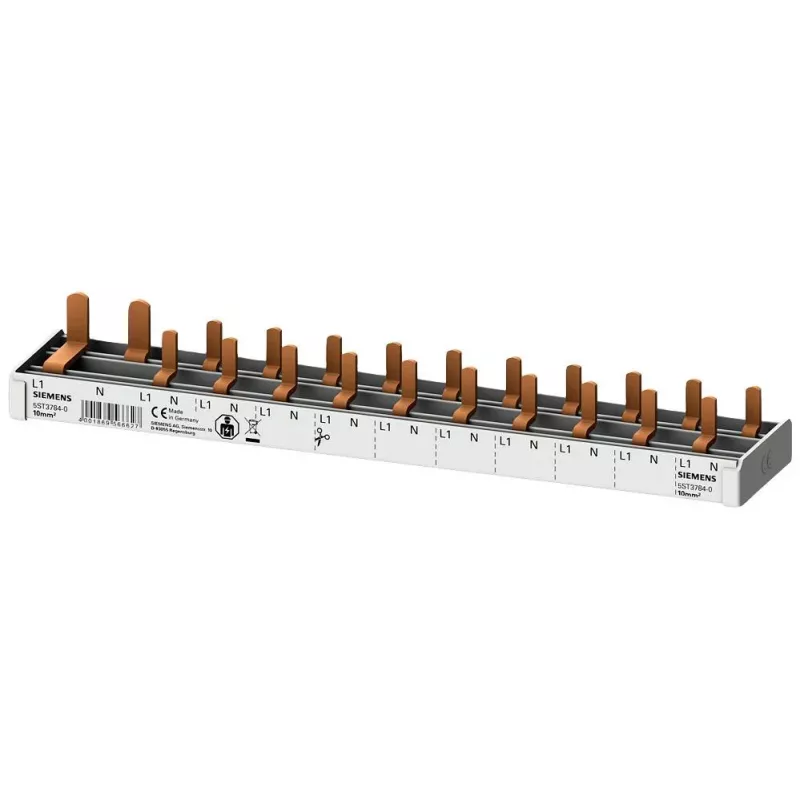

SIEMENS 5ST37840 barra collettrice a pettine 16mm², 1x interruttore differenziale 1P+N + 10x apparecchi compatti, 12 TE

Pin busbar for efficient power distribution in electrical panels, integrating one 1P+N residual current device (RCD) and ten single-pole modular devices in a compact 12 module unit (TE) footprint. The 16 mm² copper conductor supports rated current up to 63 A, ensuring reliable supply for connected equipment.

Advantages

Streamlines panel wiring by replacing multiple individual connections with a single busbar, reducing installation time and potential wiring errors. The pin connection type provides secure and maintenance-free contacts for Siemens SENTRON modular installation devices.

Suitable for

• Distribution boards requiring combined RCD protection and multiple outgoing circuits
• Residential and commercial electrical installations
• Retrofitting existing panels with Siemens SENTRON components

Key specifications

• Busbar type: Pin busbar
• Number of poles: 2-pole (1P+N)
• Conductor cross-section: 16 mm²
• Number of module units (TE): 12
• Configuration: 1x RCD (1P+N) + 10x single-pole modular devices
• Rated current: 63 A
• Rated voltage (AC): 230/400 V
• Connection type: Pin
• Conductor material: Copper
• Insulation material: Plastic
• Mounting type: DIN rail
• Short-circuit current rating (Icw): 10 kA
• Degree of protection: IP20 (when installed in an enclosure)
• Operating temperature: -25 to +55 °C

Recommendations

Verify compatibility with your specific RCD and modular devices before installation. Ensure the panel provides adequate space for the 12 TE width and proper DIN rail mounting.
